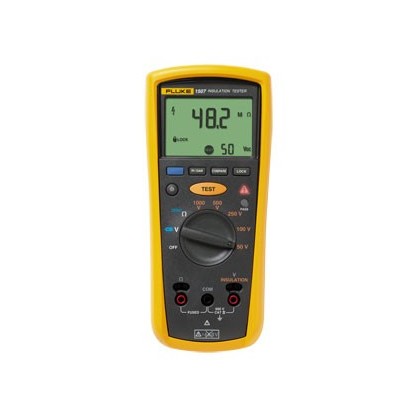

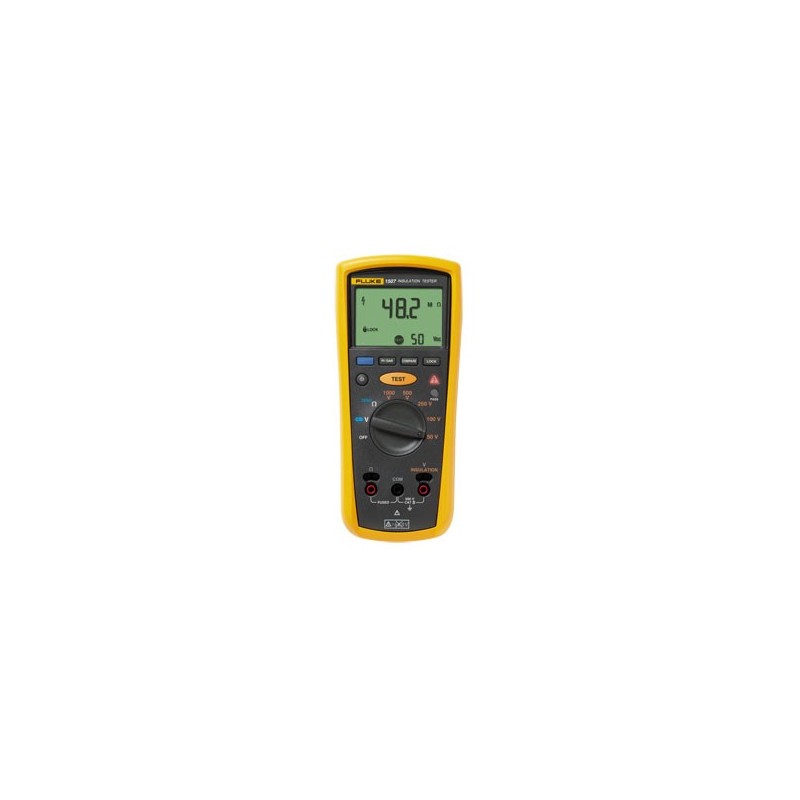

FLUKE 1507 Insulation Tester

FLUKE 1507 Insulation TesterFLUKE 1507 Insulation TesterFLUKE 1507 Insulation Tester

FLUKE 1507 Insulation TesterFLUKE 1507 Insulation TesterFLUKE 1507 Insulation Tester

More details



FLUKE-1507

within 2 weeks

731,00 € tax excl.
877,20 €tax incl.


Comment faire une demande de devis : Transformer mon panier en devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire



  • Range of insulation testing:
    • 1507: 0.01 MΩ to 10 GΩ
    • 1503: 0.1 MΩ to 2000 MΩ
  • Control voltages of isolation:
    • 1507: 50 V, 100 V, 250 V, 500 V, 1000 V
    • 1503: 500 V, 1000 V
  • Automatic calculation of Polarization Index and Dielectric Absorption rate for productivity and profitability (only available on model 1507)
  • Possibility of repeating simple controls through the comparison function of 1507 ("good / bad") (available only on 1507)
  • Simplification of controls repetitive or difficult to access with the probe with remote control button
  • Detection circuits to prevent control voltage isolation in case of voltage above 30 V
  • Automatic discharge of capacitive voltage for added protection
  • AC / DC voltage: 0.1 V to 600 V
  • 200 mA Continuity
  • Resistance: 0.01 Ω to 20.00 kΩ
  • Auto power off to extend battery life
  • Easy to read measurements using the large backlit display
  • Overvoltage category CAT IV 600 V for better protection
  • Remote probe, test leads, probes and alligator clips included with each controller
  • Possibilitybenefit from the suspension system Fluke TPAK magnet (optional), in order to free your hands for other tasks
  • Four AA alkaline batteries (NEDA 15A or IEC LR6) for at least 1000 controls isolation
  • 1 year warranty





Measure voltage AC / DC
Accuracy
Range600.0 V
Resolution0.1 V
50 Hz to 400 Hz ± (% rdg. + Points)± (2% + 3)
Input Impedance
3 MΩ (nominal), <100 pf="" td="">
Report CMRR (1 kΩ unbalanced):
>60 dB at DC, 50 or 60 Hz
Protection against overload
600 V RMS or DC
Resistance measurement of the mass continuity
Range / Resolution
20.00 Ω0.01 Ω
200.0 Ω0.1 Ω
2000 Ω1.0 Ω
20.00 kΩ0.01 kΩ
Accuracy
± (1.5% + 3)
Protection against overload
2 V RMS or DC
Test voltage open circuit
> 4.0 V, <8 v="" td="">
Short-circuit
> 200.0 mA
Characteristics of the insulation monitor
Display Range
1507:0.01 MΩ to 10 GΩ
1503:0.01 MΩ to 2000 MΩ
Test voltages
1507:50 V, 100V, 250 V, 500 V, 1000 V
1503:500 V, 1000 V
Accuracy of the test voltage
+20%, -0%
Short-circuit
1 mA nominal
Automatic discharge
Discharge time <0.5 seconds="" if="" c="1" uf="" or="" less="" td="">
Live circuit indicator
Control prohibited if terminal voltage> 30 V prior to initiation of control
Maximum capacitive load
Operational for more than 1 uF load
Measuring accuracy:
50 V:± (3% + 5)
100 V:± (3% + 5)
250 V:± (1.5% + 5)
500 V:± (1.5% + 5)
1000 V± (1.5% + 5) to 2000 MΩ, ± (10% + 3) above 2000 MΩ

Shocks

General Characteristics
Maximum voltage applied to a terminal:
600 V AC RMS or DC
Storage temperature
-40 ° C to 60 ° C
Operating Temperature
-20 ° C to 55 ° C
Temperature Coefficient
0.05 x (specified accuracy) per ° C for temperatures <18 c="" or=""> 28 ° C
Relative Humidity
0% - 95% at 10 ° C - 30 ° C
0% - 75% at 30 ° C - 40 ° C
0% - 40% at 40 ° C - 55 ° C
Vibrations
Random, 2 g, 5-500 Hz per MIL-PRF-28800F for a Class 2
Fall from a height of 1 meter per IEC 61010-1 2nd edition (drop test from a height of 1 meter, six sides, oak floor)
EMC:
In an RF field of 3 V / M, accuracy = specified accuracy (EN 61326-1:1997)
Security
Complies with ANSI / ISA 82.02.01 (61010-1) 2004, CSA C22.2 NO. 61010-1-04 and IEC / EN 61010-1 2nd Edition for Measurement Category IV 600 V (CAT IV)
Certifications:
CSA per standard CSA / CAN C22.2 No. 61010.1-04; TUV to IEC / EN 61010-1 2nd edition
Batteries
Four AA batteries (NEDA 15A or IEC LR6)
Battery
Use of insulation testing:The controller can achieve a minimum of 1 000 inspections of isolation with fresh alkaline batteries at room temperature. These are standard controls of 1000 V into 1 MΩ with a duty cycle of 5 seconds of activation and deactivation of 25 seconds.
Resistance measurements:The controller can achieve at least 2500 resistance measurements of the mass continuity with fresh alkaline batteries at room temperature. These are standard controls of 1 Ω with a duty cycle of 5 seconds of activation and deactivation of 25 seconds.
Dimensions
5.0 x 10.0 x 20.3 cm (H x W x D)
Weight
550 g
IP level
IP40
Altitude
Operation:2000 m CAT IV 600 V, 3000 m CAT III 600 V
Nonoperating (storage):12 000 m
Overload capacity:
110% of range
Accessories included:
TL224 test leads, TP74 test probes, clips PN 1958654 (red) and PN 1958646 (black), shell and remote probe
