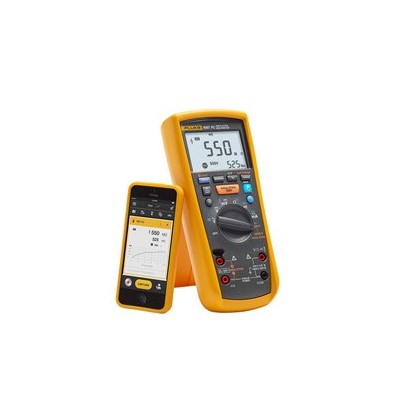

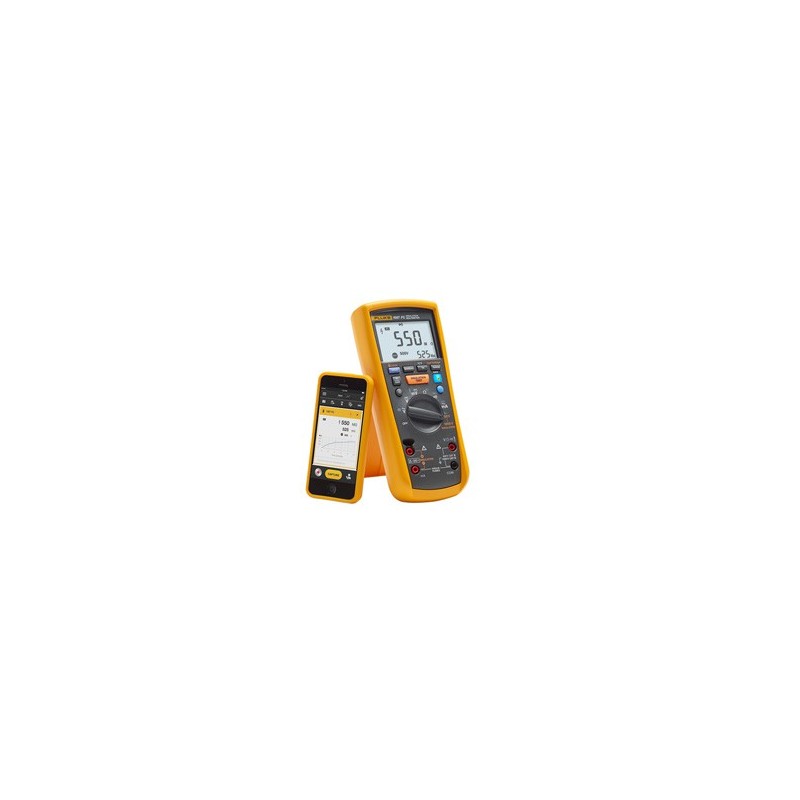

FLUKE 1587FC - Multimeter and insulation tester - FLUKE

Send to a friend
Send to a friend

FLUKE 1587FC - Multimeter and insulation tester - FLUKE
FLUKE 1587 - Multimeter - insulation testerFLUKE 1587 - Multimeter - insulation testerFLUKE 1587 - Multimeter - insulation teste
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

FLUKE 1587 - Multimeter - insulation testerFLUKE 1587 - Multimeter - insulation testerFLUKE 1587 - Multimeter - insulation teste

More details

Reference: FLUKE-1587FC

within 2 weeks

Two powerful tools in one

Multimeters / insulation testers Fluke 1587 and 1577 include a digital insulation tester and multimeter TRMS digital multifunction in one portable and compact, offering maximum flexibility for troubleshooting and preventive maintenance.

Whether you work on motors, generators, cables and switches, meters / testers Fluke 1587/1577 Insulation will give you valuable assistance, and at a cost well below the price of two separate products.

AC Voltage

Specifications

Voltage DC

Maximum Voltage:	1000 V
Accuracy:	1577: ± (0.2% + 2)
	1587: ± (0.09% + 2)
Maximum Resolution:	0.001 V

Maximum Voltage:	1000 V
Accuracy:	1577: ± (2% + 3)
	1587: ± (2% + 3)
AC bandwidth	1587: 5 kHz *
	* Low-pass filter, 3 dB at 800 Hz
Maximum Resolution:	0.1 mV

Amp. Maximum:	400 mA
Amp precision. :	1577: ± (1.0% + 2)
	1587: ± (0.2% + 2)
Maximum Resolution:	0.01 mA

Amp. Maximum:	400 mA
Amp precision. :	1577: ± (2.0% + 2) *
	1587: ± (1.5% + 2) *
	* Bandwidth of 1 kHz
Maximum Resolution:	0.01 mA

Resistance

Maximum resistance:	50 MΩ
Accuracy:	1577: ± (1.2% + 2)
	1587: ± (0.9% + 2)
Maximum Resolution:	0.1 Ω

Capacity (1587 only)

Maximum capacity:	9999 uF
Accuracy:	± (1.2% + 2)
Maximum Resolution:	1 nF

Frequency (1587 only)

Maximum frequency:	100 kHz
Accuracy:	± (0.1% + 1)
Maximum Resolution:	0.01 Hz

Temperature measurement (1587 only)

	-40 ° C to 537 ° C
	(-40 ° F to 998 ° F)
	excluding probe

Measuring LED (1587 only)

Range:	6 V
Resolution:	1 mV
Accuracy:	± (2% + 1)

Insulation Test

Test current of 1 kΩ / V:

1 mA

Test voltages:

1577:00:00	500, 1000 V
1587:00:00	50, 100, 250, 500, 1000 V

Resistance maximum test voltage:

50 V:
100 V:
250 V:
500 V:
1000 V	1577: 600 MΩ
	1587: 2 GΩ

Resolution maximum test voltage:

50 V:	0.01 MΩ
100 V:	0.01 MΩ
250 V:	0.1 MΩ
500 V:	0.1 MΩ
1000 V	0.1 MΩ

Precision test voltage:

50 V:	± (3% + 5)
100 V:	± (3% + 5)
250 V:	± (1.5% + 5)
500 V:	1577: ± (2.0% + 5)
	1587: ± (1.5% + 5)
1000 V	1577: ± (2.0% + 5)
	1587: ± (1.5% + 5) to 600 MΩ, ± (10% + 3) in excess of 600 MΩ

Environmental Specifications

Operating Temperature

-20 ° C to +55 ° C

Storage temperature

-40 ° C to +60 ° C

Humidity (without condensation)

	0% - 95% (10 ° C - 30 ° C)
	0% - 75% (30 ° C - 40 ° C)
	0% -40% (40 ° C - 55 ° C)

Operating Altitude

2000 m

Safety Features

Overvoltage category

Compliance with ANSI / ISA 82.02.01 (61010-1) 2004, CSA C22.2 NO. 61010-1-04 and IEC / EN 61010-1 (2nd edition) for CAT III 1000 V and CAT IV 600 V

Certifications

2000 m CAT III 1000 V, CAT IV 600 V CAT II 3000 m 1000 V, CAT III 600 V

Mechanical & General Specifications

Dimensions

203 x 100 x 50 mm (with protective cover)

Weight

624 g

Warranty

3 years

Battery life (alkaline)

Meter:	1 000 hours
Insulation Tester:	Equipped with new alkaline batteries, the device can perform at least 1000 insulation tests at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty ratio of 5 seconds on and 25 seconds off.

Class IP

IP40

Functionality	1587	1577
Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V	•
Insulation test voltages: 500 V, 1000 V		•
Insulation test: 0.01 MΩ to 2.0 GΩ	•
Insulation test: 0.1 MΩ to 600 MΩ		•
Automatic discharge of capacitive voltage	•	•
Smoothing of the isolation test	•
Frequency	•
Capacity	•
Diode test	•
Temperature	•
Min / Max	•
Low-pass filter (variable-speed)	•
AC / DC	•	•
DC millivolts	•	•
Milliamps AC / DC	•	•
Resistance (0.1 Ω to 50 MΩ)	•	•
Continuity	•	•
3 years warranty	•	•
Remote control, test leads, alligator clips	•	•
Thermocouple type K	•
Robust case	•	•
Auto power off to extend battery life	•	•
TRMS	•	•
Large backlit display	•	•
Detect live circuits to prevent insulation test if voltage> 30 V	•	•
CAT III 1000 V, CAT IV 600 V	•	•
Can be used with magnetic hanging system Fluke TPAK TM to keep your hands free	•	•
