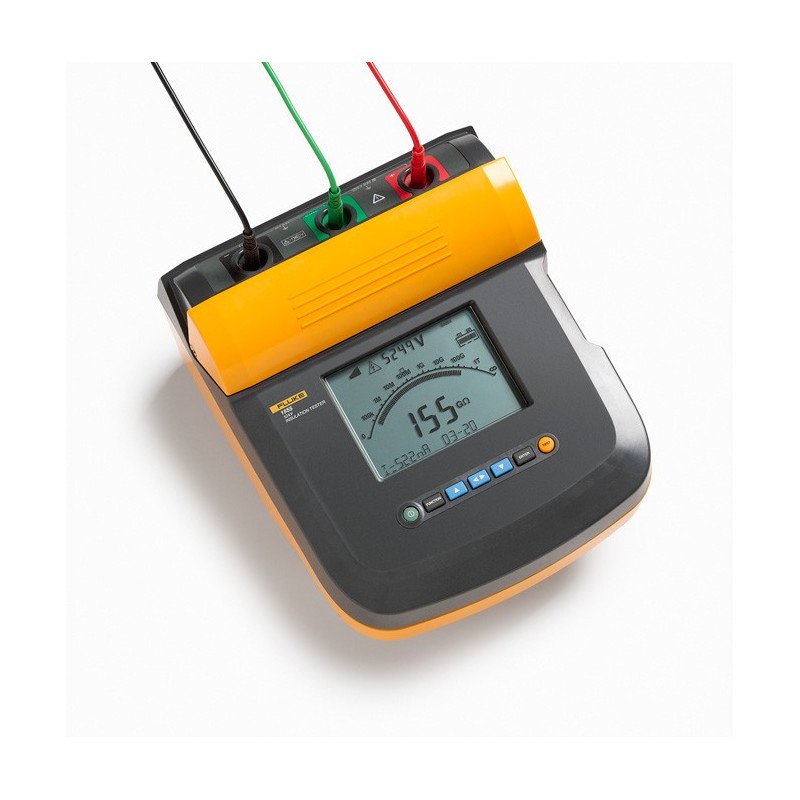

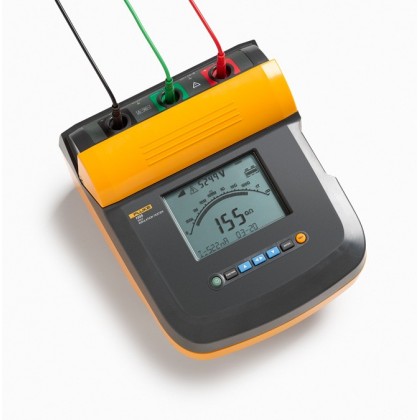

FLUKE 1550C - 5KV insulation tester - FLUKE
FLUKE 1550C - 5KV Insulation Tester - FlukeFLUKE 1550C - 5KV Insulation Tester - FlukeFLUKE 1550C - 5KV Insulation Tester - Fluk
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

FLUKE 1550C - 5KV Insulation Tester - FlukeFLUKE 1550C - 5KV Insulation Tester - FlukeFLUKE 1550C - 5KV Insulation Tester - Fluk

More details

Reference: FLUKE-1550C

Period 10 weeks

Features and Benefits:

Test voltages up to 10 kV to provide solutions for applications Autès

Security Level CAT III 1000 V and CAT IV 600 V

Breakdown detector warning you of the presence of voltage and providing a reading up to 600 V AC or DC.

Selectable test voltages in steps of 50 V (250 V to 1000 V) and in steps of 100 V (beyond 1000 V)

Up to 99 memory slots to record your measurements and findeasily through a user-defined label for each location

Great auànomie batteries allow the user to perform more than 750 checks between two reloads.

Auàmatique calculation of dielectric absorption (DAR) and polarization index (PI) without additional configuration

The protection system eliminates the impact of surface leakage current measurements on high resistance.

Large LCD digital / analog for maximum comfort

Capacitance and leakage current

Ramp function controls for breakdown

Resistance measurements up to 2 TΩ

Timing parameters for up to 99 minutes timed controls

3 years warranty

Electrical Characteristics

The precision of the specified controller is based on a cycle of one year after calibration, for operating temperatures between 0 ° C and 35 ° C. For operating temperatures below and above this range (that is, between -20 ° C and 0 ° C and 35 ° C and 50 ° C), add ± 0.25% per ° C, except for bands for which 20% should be added ± 1% per ° C.

Test voltage (DC)	Range	Accuracy (± reading)
250 V	<200 k="" span="">	unspecified
	200 k to 5 GΩ	5%
	5 GΩ 50 GΩ	20%
	> 50 GΩ	unspecified
500 V	<200 k="" td="">	unspecified
	200 k to 10 GΩ	5%
	10 GΩ to 100 GΩ	20%
	> 100 GΩ	unspecified
1000 V	<200 k="" td="">	unspecified
	200 k to 20 GΩ	5%
	20 GΩ to 200 GΩ	20%
	> 200 GΩ	unspecified
2500 V	<200 k="" td="">	unspecified
	200 k to 50 GΩ	5%
	50 GΩ to 500 GΩ	20%
	> 500 GΩ	unspecified
5000 V	<200 k="" td="">	unspecified
	200 k to 100 GΩ	5%
	100 GΩ to 1 TΩ	20%
	> 1 TΩ	unspecified
10000 V	<200 k="" td="">	unspecified
	200 k to 200 GΩ	5%
	200 GΩ to 2 TΩ	20%
	> 2 TΩ	unspecified
Range bar charts	0-1 TΩ
Precision voltage insulation testing	-0%, +10% With a load current of 1 mA
Rejection of AC induction	2 mA maximum
Charging time for the capacitive load	5 seconds per uF
Discharge time for the capacitive load	1.5 s / uF
	Range	Accuracy
Measurement of leakage currents	1 nA to 2 mA	± (5% + 2 nA)
Capacity measure	0.01 uF 15.00 uF	± (1My 5%. + 0.03 uF)
Timer	Range	Timer
	0 to 99 minutes	Settings: 1 minute Display: 1 second
Audible warning of live circuits	Range of the horn	Voltage accuracy
	30 V to 660 V AC / DC, 50/60 Hz	± (15% + 2 V)
General Characteristics
Display
	(75 mm x 105 mm)
Food
	Battery 12 V lead-acid rechargeable Yuasa NP2.8-12
Charger input (AC)
	85 V AC 50/60 Hz 20 VA
This tool Class II (double insulation) comes with a power cord (grounded) Class I. This camee protective earth (ground clamp) is not connected internally. The extra clamp serves only to increase the retention of the plug.
Dimensions	170 mm x 242 mm x 330 mm
Weight	3.6 kg
Temperature (operating)	-20 ° C to 50 ° C
Temperature (sàckage)	-20 ° C to 65 ° C
Humidity	80% at 31 º C decreasing linearly to 50% at 50 º C
Altitude	2000 m
Enclosure rating	IP40
Protection against overload input	1000 V AC
EMC	EN 61326
Compliance with safety standards	CAT III 1000 V, CAT IV 600 V
Pollution Degree	2
