More details



FLUKE-233

Deadline 2 weeks

528,00 € tax excl.
633,60 €tax incl.


Comment faire une demande de devis : Transformer mon panier en devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire







  • TRMS AC current and voltage for the accurate measurement of nonlinear signals
  • Measure up to 1000 V AC and DC
  • Measure up to 10A (20A for 30 seconds)
  • Capacity range from 10 000 uF
  • Frequency up to 50 kHz
  • Built-in thermometer for conducting temperature measurements with ease, without additional instrument
  • Resistance measurements, continuity and diode
  • The wireless technology enables low power consumption to place the display at a distance of 10 meters from the measuring point, offering more flexibility. No interference with the measurements

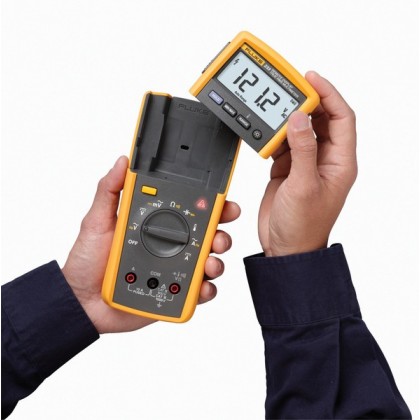

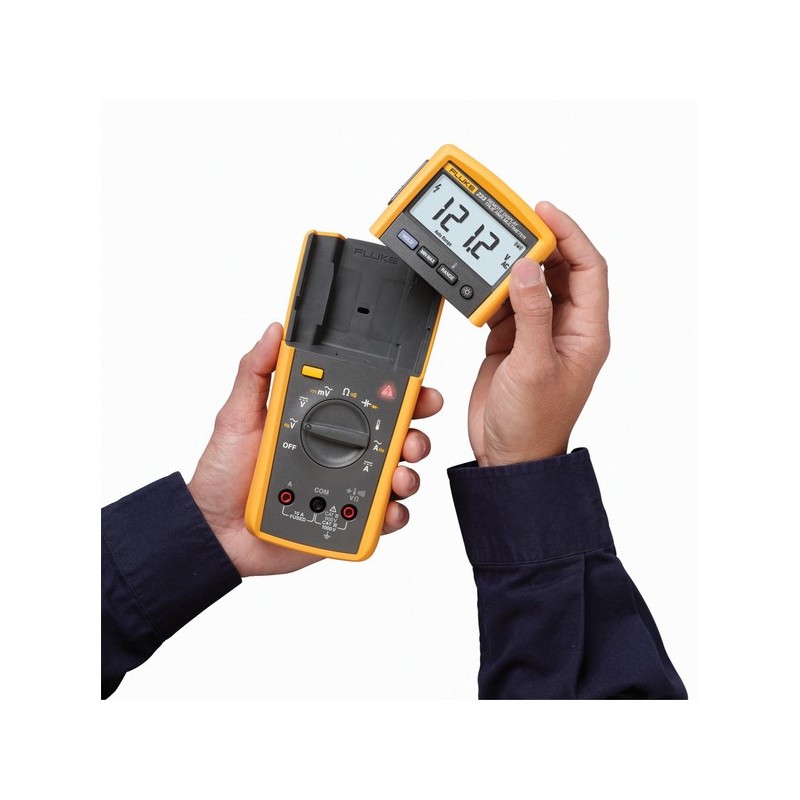

  • The removable magnetic display can be placed in a location where it is easily visible
  • Conduct surveys without having to hold the meter allows you to concentrate visually on probesand increase the electrical measurements made in any secure
  • Use as a conventional meter in the display is connected
  • The radio transmitter turns off automatically when the display is connected to the multimeter
  • Automatically turns off the device to maximize the life of batteries
  • Recording average values ​​and min / max in order to capture variations automatically
  • Diode test and continuity
  • Display with large figures and bright backlight for easy reading
  • Battery life: 400 hours



pecifications for accuracy
Voltage DC
Range0.1 mV to 1000 V
Accuracy0.25% + 2
AC voltage
Range0.1 mV to 1000 V
Accuracy1% + 3
DC
Range1 mA to 10 A
Accuracy1% + 3
AC
Range1 mA to 10 A
Accuracy1.5% + 3
Resistance
Range0.1 Ω to 40 MΩ
Number of points
6 000
Capacity
1 nF to 9999 uF
Frequency
5 Hz - 50 kHz (VAC) 45Hz - 50kHz (Aac)
Temperature
-40 ° C to 400 ° C
Food
AA: 3 for the meter, 2 for display
Battery
400 hours
Wireless Frequency
Frequency at 2.4 GHz ISM band with a range of 10 meters
Security Level
CAT IV 600V and CAT III 1000 V
General Characteristics
Basic Functions
AC (TRMS)Yes
IntervalAuto / Manual
Display
BacklightYes
Data Storage
Min / Max / AvgYes
Other functions
Battery TypeAA alkaline
Removable displayYes
Warranty and Protection







magine the possibilities
What would you do if you could be in two places at once?


The new digital multimeter Fluke 233 TRMS detachable display offers exceptional flexibility for unusual sites of measurement. Place the separate display where you can see, then put the meter in a convenient place: no need to juggle the meter leads and trying to fit into tight spaces. You can now make a statement of measures in areas difficult to reach, or panels on machines physically separated by a limit switch or switch, or in restricted areas such as clean rooms and hazardous environments.
