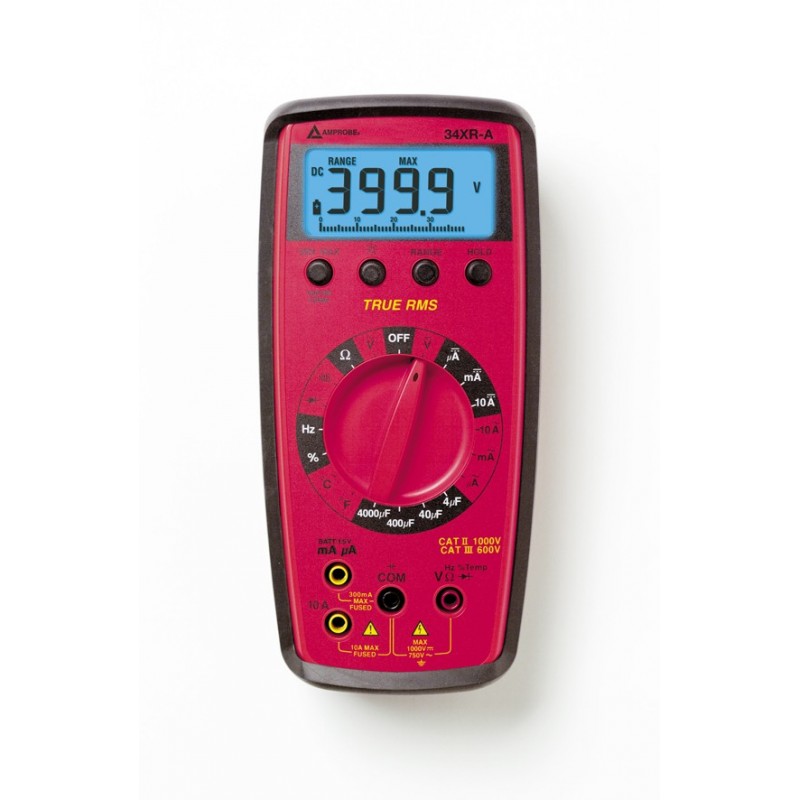

A 34 XR - TRMS Multimeter with professional temperature measurement and display illumination - Amprobe

34 XR A - Multimètre TRMS professionnel avec mesure de la température et éclairage de l'affichage - Amprobe

A 34 XR - TRMS Multimeter with professional temperature measurement and display illumination - AmprobeA 34 XR - TRMS Multimeter

More details



34XR-A

2 weeks

238,00 € tax excl.
285,60 €tax incl.


Comment faire une demande de devis : Transformer mon panier en devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire


Presentation
• Auto-ranging and manual
• Integrated measurement memory (data retention)
• Measure the MIN / MAX, and relative
peak
• Display bar graphs further
(41 segments)
• Illuminated display
• Shock through the protective case
Series
• Automatic Power

Features
• Measures True RMS (TRMS)
• Magnetic Holster (Magne-Grip ™)
• Function of duty ratio



Technical Details

DisplayLCD 3-3/4-digit, 3999 points
Measuring range
AC voltage0.1 mV ... 750 V
Tolerance± (1.2% dl + 8 pts)
Frequency Range45 Hz ... 2 kHz
Voltage DC0.1 mV ... 1000 V
Tolerance± (0.5% dl + 1 pts)
Input resistance10 MW
ACUA 0.1 ... 10 A
Tolerance± (1.5% dl + 8 pts)
Frequency Range45 ... 1 kHz
DCUA 0.1 ... 10 A
Tolerance± (1.0% dl + 1 pts)
Resistance0.1 Ω ... 40 MΩ
Tolerance± (1% dl + 4 pts)
ContinuityR <35 td="">
Duty cycle0 ... 90%
Tolerance(5V-Logic) ± (2.0% dl + 5 pts)
Frequency10.00 Hz ... 1 MHz
Tolerance± (0.1% dl + 3 pts)
Capacity4.000 ... 4.000 nF mF
Tolerance± (5% dl + 10 pts)
Temperature-20 ° C ... 1000 ° C
Tolerance± (2.0% + 4 ° C)
Pollution index2
Overvoltage categoryCAT III / 600 V, CAT V II/1000
Safety toDIN VDE 0411, EN 61010, IEC 61010
Food1 x 9V, IEC 6LR61
Dimensions196 x 92 x 60 mm
Weightapprox. 400 g
Content delivery 34XR-A
1 x 34XR-A
2 x test leads
1 x magnetic case
1 x temperature adapter
1 x temperature sensor (0 ... 200 ° C)
1 x 9 V battery, IEC 6LR61
1 x manual
