More details



SEFRAM7303

2-3 weeks

56,00 € tax excl.
67,20 €tax incl.


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

• Resistance measurement up 40Mohms
• Continuity test with buzzer

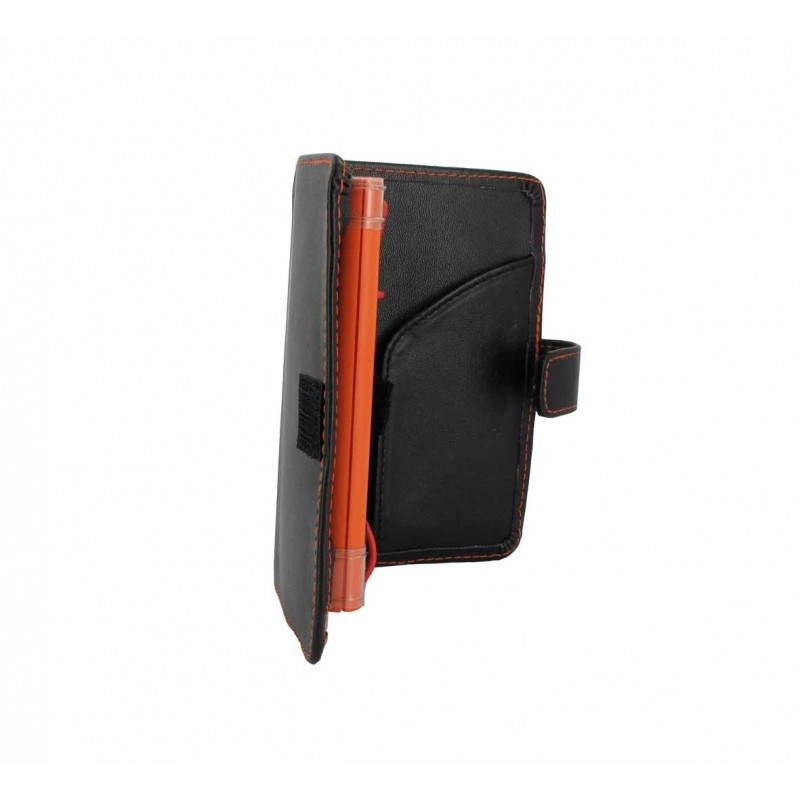

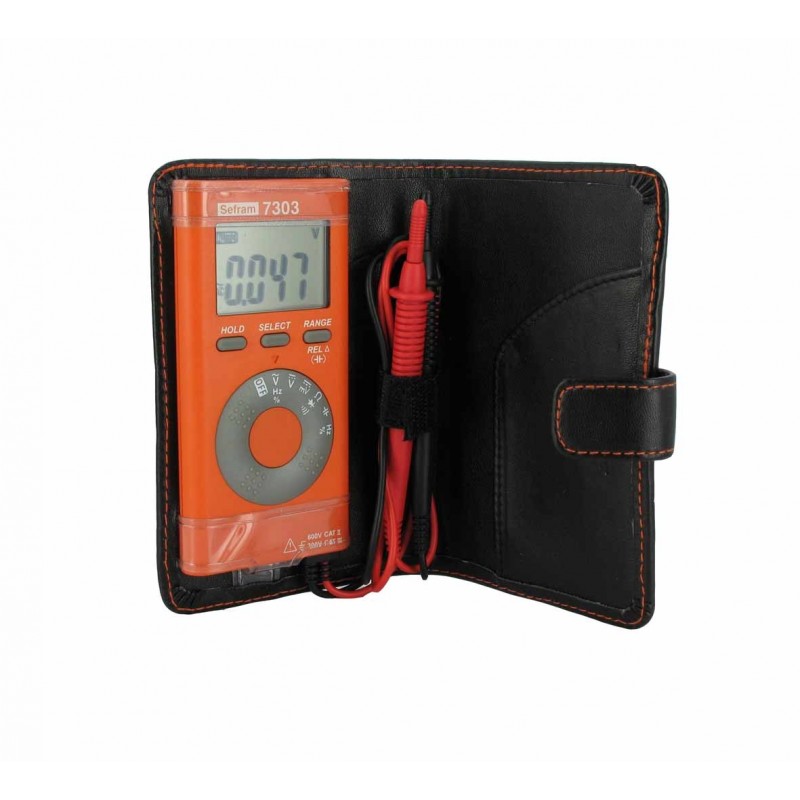

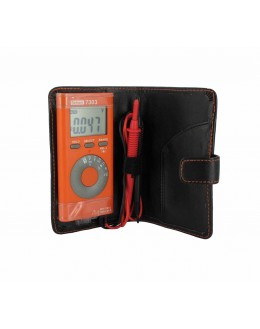

• Comes with protective case

  • Voltages
  • Ranges 400mV to 600V
  • Basic accuracy ± (0.6% + 2dgt)
  • Resolution 0.1 mV to 1V
  • Voltages
  • Ranges 400mV to 600V
  • Resolution 0.1 mV to 1V
  • Basic accuracy ± (0.9% + 5dgt)
  • Bandwidth 50Hz to 100Hz
  • Resistance
  • Ranges to 400ohms 40Mohms
  • Basic accuracy ± (0.9% + 2dgt)
  • Continuity Test yes, with buzzer (threshold to 50 ohms)
  • Diode test yes
  • Frequencies
  • Range 5Hz to 5MHz
  • Basic accuracy ± (0.3% + 5dgt)
  • 600Veff protection.
  • Capacity measures
  • 50nF to 100μF ranges
  • 10pF resolution to 0.1 uF
  • Basic accuracy ± (2.9% + 5dgt)
  • 600Veff protection.
  • % Duty cycle
  • Range 0.1% to 99.9%
  • Basic accuracy ± (0.5% + 3dgt)
  • Sensitivity 0.5 V dc (square wave)
  • 600Veff protection.
  • Hold function, Auto Off



  • Type LCD display
  • Display 3-digit 3 / 4, 5000 points
  • Sampling rate 3 measurements / s
  • Operating temperature 0 ° C to 40 ° C
  • Storage temperature -10 ° C to 60 ° C
  • Electronic protection
  • Security 600V - 300V CAT II and CAT III
  • Power 2 x 1.5 V - GPA76P
  • Typical Autonomy 100h
  • Dimensions 56 x 12 x 112mm
  • Weight 115g
