More details

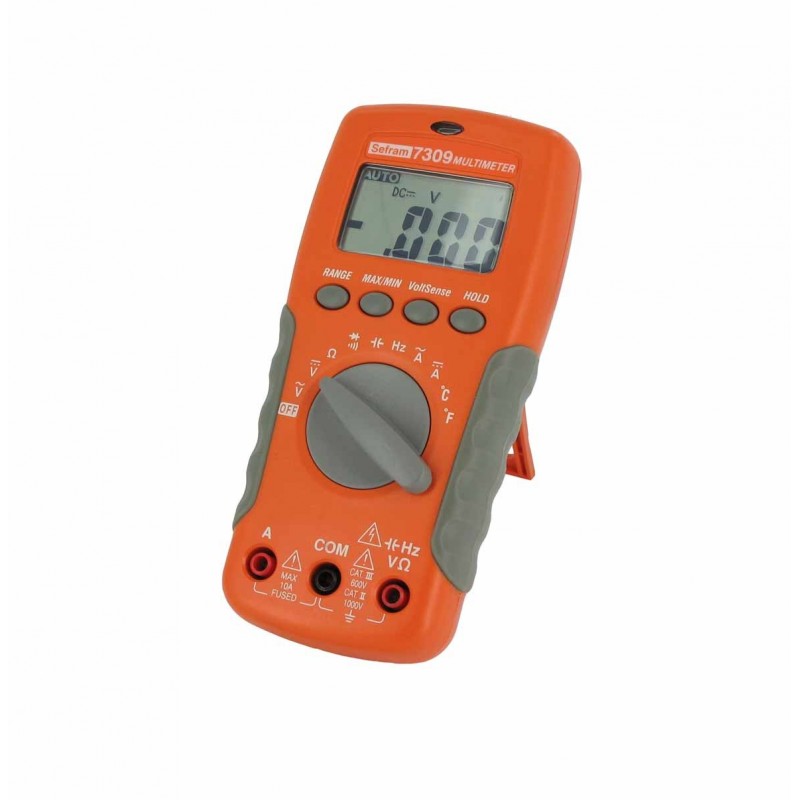

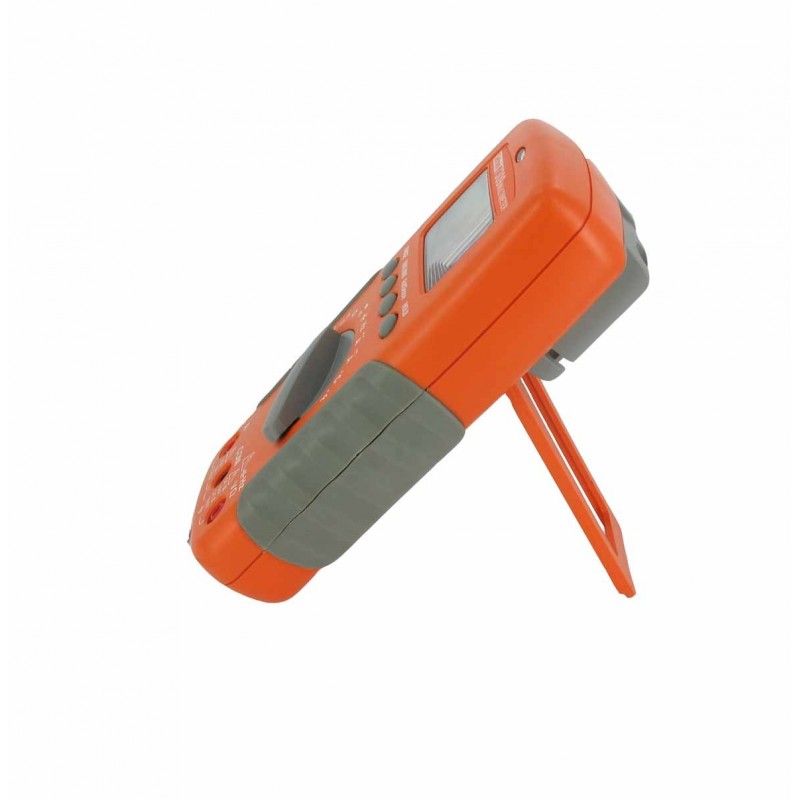

SEFRAM 7309

2-3 weeks

157,00 € tax excl.
188,40 €tax incl.


Comment faire une demande de devis : Transformer mon panier en devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

• Temperature measurement
• Resistance measurement up 20Mohm
• Continuity test with buzzer
• Non-contact voltage detector

Voltages
Range 200mV to 1000V
Basic accuracy ± (0.5% + 2dgt)
Resolution 0.1 mV to 1V
Voltages
2V to 750V ranges
Resolution 1mV to 1V
Basic accuracy ± (1.5% + 5dgt)
Bandwidth 50Hz to 500Hz
Currents
2A and 10A ranges
Basic accuracy ± (1% + 3dgt)
Resolution 1mA and 10mA
Fuse protection
Alternating currents
2A and 10A ranges
Resolution 1mA and 10mA
Basic accuracy ± (1.5% + 5dgt)
Bandwidth 50Hz to 500Hz
Fuse protection
Resistance
Ranges to 200 ohms 20Mohm
Basic accuracy ± (0.7% + 3dgt)
Continuity Test yes, with buzzer
Diode test yes
Voltage detector yes, without contact
Hold function, Auto Off
Frequencies
2000Hz ranges and 20MHZ
Basic accuracy ± (0.01% + 1dgt)
600Veff protection.

Ranges to 2nF 2mF
Resolution 1pF to 1uF
Basic accuracy ± (1.9% + 8dgt)
600Veff protection.
Temperature
Range -20 ° C to +800 ° C
Basic accuracy ± (1% + 3 ° C)
General Characteristics
Type LCD display
Digits1 Display 3 / 2, 1999 points
Rate is 2.5 readings / s
Operating temperature 0 ° C to 40 ° C
Storage temperature -10 ° C to 60 ° C
Electronic protection
Security 600V - CAT III
Power 2 x 1.5 V - AAA
Autonomy 250h typical (alkaline)
Size 74 x 156 x 44mm
Weight 320g
