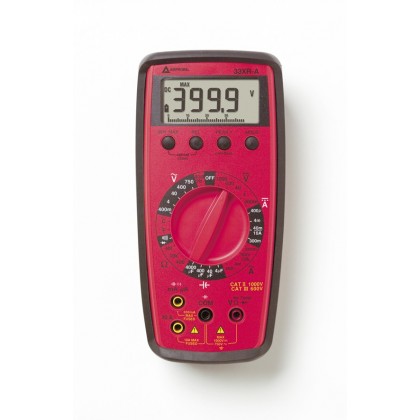

A 33 XR - Professional Multimeter - Amprobe
A 33 XR - Professional Multimeter - AmprobeA 33 XR - Professional Multimeter - AmprobeA 33 XR - Professional Multimeter - Amprob
Recipient :
* Required fields
or Cancel
A 33 XR - Professional Multimeter - AmprobeA 33 XR - Professional Multimeter - AmprobeA 33 XR - Professional Multimeter - Amprob
33XR-A
2 weeks
Warning: Last items in stock!
Availability date:
Presentation
• Manual range selection
• Integrated measurement memory (data retention)
• Measure the MIN / MAX, and relative
peak
• Display bar graphs further
(41 segments)
• Shock through the protective case
Series
• Automatic Power
Features
• Magnetic Holster (Magne-Grip ™)
Technical Details
Display | LCD 3-3/4-digit, 3999 points |
Measuring range | |
AC voltage | 0.1 mV ... 750 V |
Tolerance | ± (1.5% dl + 4 pts) |
CaliberFrequency | 45 ... 500 Hz |
Voltage DC | 0.1 mV ... 1000 V |
Tolerance | ± (0.7% dl + 1 pts) |
Input resistance | 10 MW |
AC | UA 0.1 ... 10 A |
Tolerance | ± (1.5% dl + 4 pts) |
Frequency Range | 45 ... 500 Hz |
DC | UA 0.1 ... 10 A |
Tolerance | ± (1.0% dl + 1 pt) |
Resistance | 0.1 Ω ... 4 MΩ |
Tolerance | ± (1% dl + 4 pts) |
Continuity | R <35 td=""> |
Frequency | 10.00 Hz ... 1 MHz |
Tolerance | ± (0.1% dl + 3 pts) |
Capacity | 4.000 ... 4.000 nF mF |
Tolerance | ± (5% dl + 10 pts) |
Temperature | -20 ° C ... 1000 ° C |
Tolerance | ± (2.0% + 4 ° C) |
Pollution index | 2 |
Overvoltage category | CAT III / 600 V, CAT V II/1000 |
Safety to | DIN VDE 0411, EN 61010, IEC 61010 |
Food | 1 x 9V, IEC 6LR61 |
Dimensions | 196 x 92 x 60 mm |
Weight | approx. 400 g |
Content delivery 33XR 33XR-A 1 x-A
2 x test leads
1 x magnetic case
1 x temperature adapter
1 x temperature sensor (0 ° C ... 200 ° C)
1 x 9 V battery, IEC 6LR61
1 x manual
