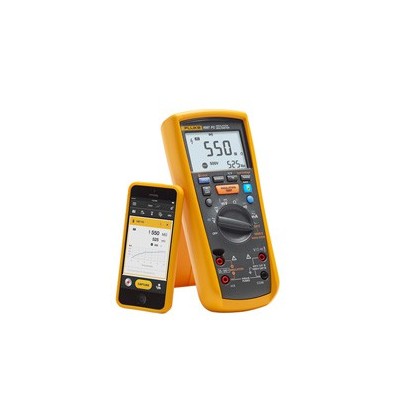

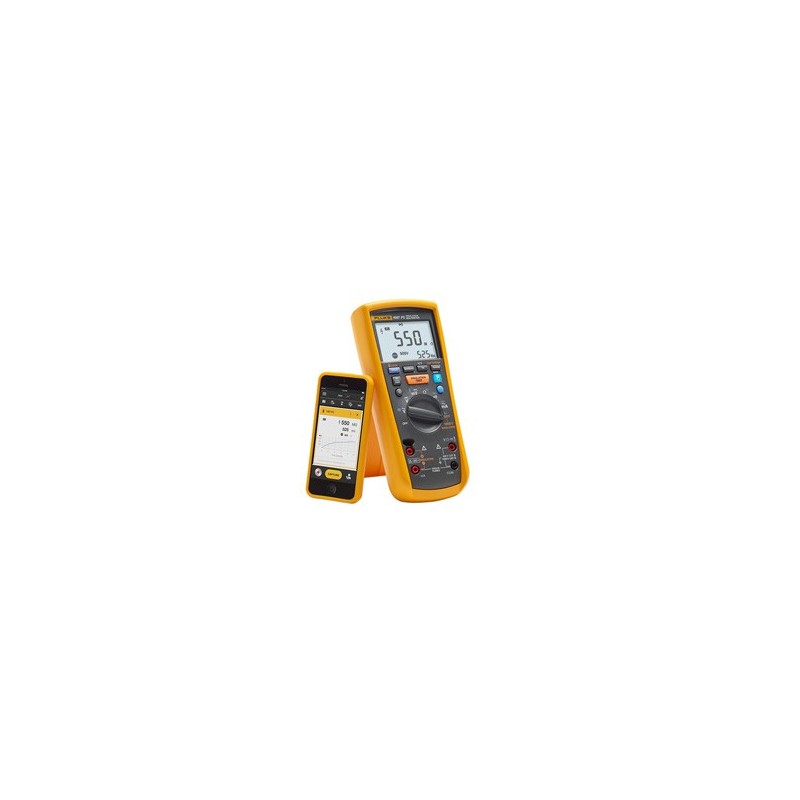

FLUKE 1587 - Multimeter - insulation tester

Reduced price! FLUKE 1587 - Multimeter - insulation testerFLUKE 1587 - Multimeter - insulation testerFLUKE 1587 - Multimeter - insulation teste

FLUKE 1587 - Multimeter - insulation testerFLUKE 1587 - Multimeter - insulation testerFLUKE 1587 - Multimeter - insulation teste

More details



FLUKE-1587FC

within 2 weeks

1 061,15 € tax excl.
1 273,38 €tax incl.

-5%

1 117,00 € tax excl.


Comment faire une demande de devis : Transformer mon panier en devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire



Two powerful tools in one

Multimeters / insulation testers Fluke 1587 and 1577 include a digital insulation tester and multimeter TRMS digital multifunction in one portable and compact, offering maximum flexibility for troubleshooting and preventive maintenance.

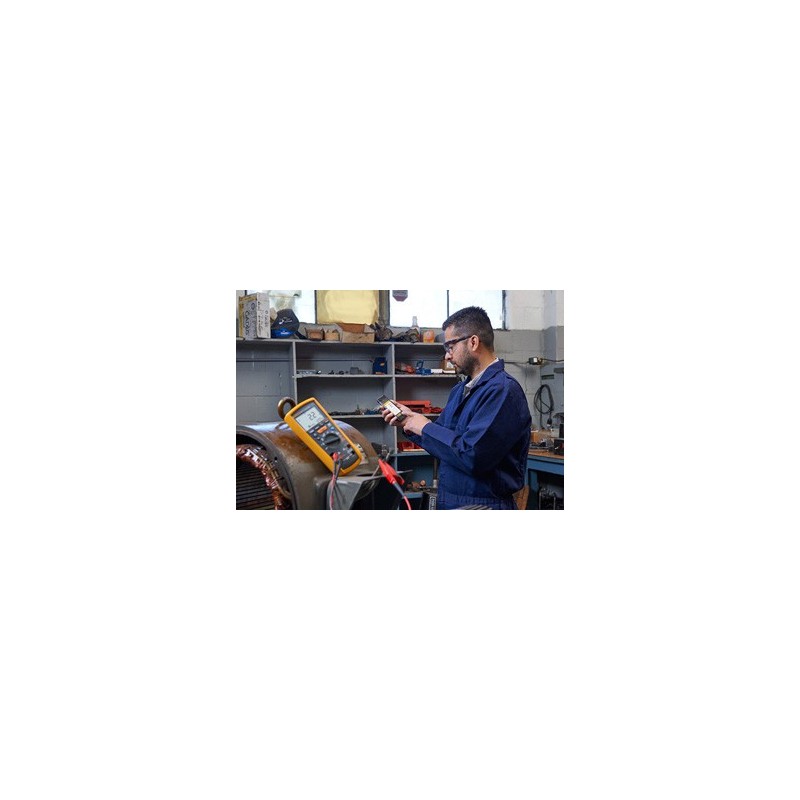

Whether you work on motors, generators, cables and switches, meters / testers Fluke 1587/1577 Insulation will give you valuable assistance, and at a cost well below the price of two separate products.





AC Voltage

Specifications
Voltage DC
Maximum Voltage:1000 V
Accuracy:1577: ± (0.2% + 2)
1587: ± (0.09% + 2)
Maximum Resolution:0.001 V
Maximum Voltage:1000 V
Accuracy:1577: ± (2% + 3)
1587: ± (2% + 3)
AC bandwidth1587: 5 kHz *
* Low-pass filter, 3 dB at 800 Hz
Maximum Resolution:0.1 mV
DC
Amp. Maximum:400 mA
Amp precision. :1577: ± (1.0% + 2)
1587: ± (0.2% + 2)
Maximum Resolution:0.01 mA
AC
Amp. Maximum:400 mA
Amp precision. :1577: ± (2.0% + 2) *
1587: ± (1.5% + 2) *
* Bandwidth of 1 kHz
Maximum Resolution:0.01 mA
Resistance
Maximum resistance:50 MΩ
Accuracy:1577: ± (1.2% + 2)
1587: ± (0.9% + 2)
Maximum Resolution:0.1 Ω
Capacity (1587 only)
Maximum capacity:9999 uF
Accuracy:± (1.2% + 2)
Maximum Resolution:1 nF
Frequency (1587 only)
Maximum frequency:100 kHz
Accuracy:± (0.1% + 1)
Maximum Resolution:0.01 Hz
Temperature measurement (1587 only)
-40 ° C to 537 ° C
(-40 ° F to 998 ° F)
excluding probe
Measuring LED (1587 only)
Range:6 V
Resolution:1 mV
Accuracy:± (2% + 1)
Insulation Test
Test current of 1 kΩ / V:
1 mA
Test voltages:
1577:00:00500, 1000 V
1587:00:0050, 100, 250, 500, 1000 V
Resistance maximum test voltage:
50 V:
100 V:
250 V:
500 V:
1000 V1577: 600 MΩ
1587: 2 GΩ
Resolution maximum test voltage:
50 V:0.01 MΩ
100 V:0.01 MΩ
250 V:0.1 MΩ
500 V:0.1 MΩ
1000 V0.1 MΩ
Precision test voltage:
50 V:± (3% + 5)
100 V:± (3% + 5)
250 V:± (1.5% + 5)
500 V:1577: ± (2.0% + 5)
1587: ± (1.5% + 5)
1000 V1577: ± (2.0% + 5)
1587: ± (1.5% + 5) to 600 MΩ, ± (10% + 3) in excess of 600 MΩ
Environmental Specifications
Operating Temperature
-20 ° C to +55 ° C
Storage temperature
-40 ° C to +60 ° C
Humidity (without condensation)
0% - 95% (10 ° C - 30 ° C)
0% - 75% (30 ° C - 40 ° C)
0% -40% (40 ° C - 55 ° C)
Operating Altitude
2000 m
Safety Features
Overvoltage category
Compliance with ANSI / ISA 82.02.01 (61010-1) 2004, CSA C22.2 NO. 61010-1-04 and IEC / EN 61010-1 (2nd edition) for CAT III 1000 V and CAT IV 600 V
Certifications
2000 m CAT III 1000 V, CAT IV 600 V CAT II 3000 m 1000 V, CAT III 600 V
Mechanical & General Specifications
Dimensions
203 x 100 x 50 mm (with protective cover)
Weight
624 g
Warranty
3 years
Battery life (alkaline)
Meter:1 000 hours
Insulation Tester:Equipped with new alkaline batteries, the device can perform at least 1000 insulation tests at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty ratio of 5 seconds on and 25 seconds off.
Class IP
IP40







Functionality15871577
Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
Insulation test voltages: 500 V, 1000 V
Insulation test: 0.01 MΩ to 2.0 GΩ
Insulation test: 0.1 MΩ to 600 MΩ
Automatic discharge of capacitive voltage
Smoothing of the isolation test
Frequency
Capacity
Diode test
Temperature
Min / Max
Low-pass filter (variable-speed)
AC / DC
DC millivolts
Milliamps AC / DC
Resistance (0.1 Ω to 50 MΩ)
Continuity
3 years warranty

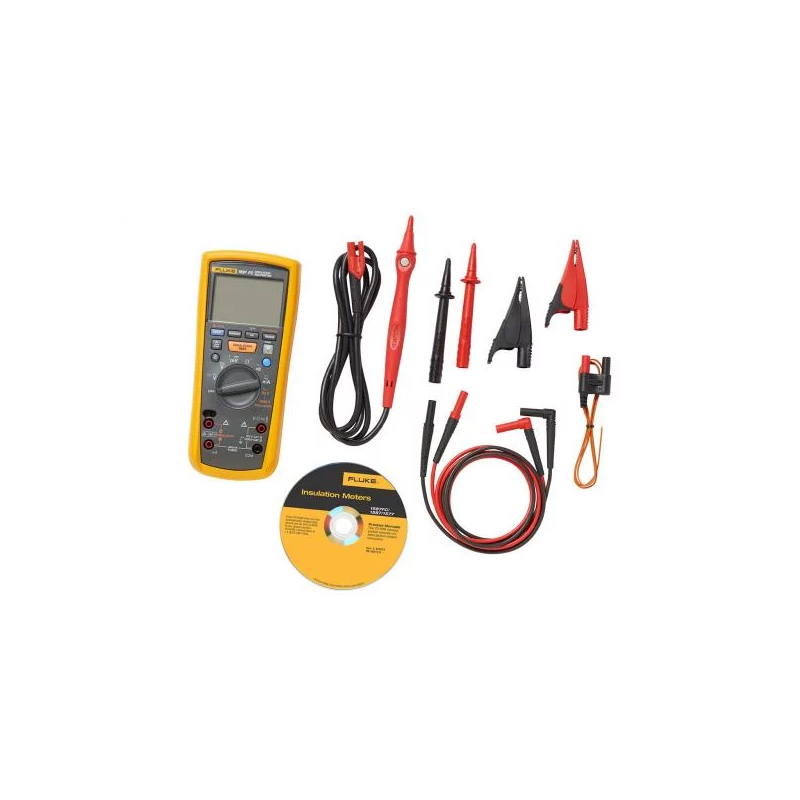

Remote control, test leads, alligator clips
Thermocouple type K
Robust case
Auto power off to extend battery life
TRMS
Large backlit display
Detect live circuits to prevent insulation test if voltage> 30 V
CAT III 1000 V, CAT IV 600 V
Can be used with magnetic hanging system Fluke TPAK TM to keep your hands free

Avis

Soyez le premier à donner votre avis !

Accessoires

Fiche technique 1587 FC

Documentation technique du multimètre d'isolement FLUKE 1587 FC

Download (9.77k)
