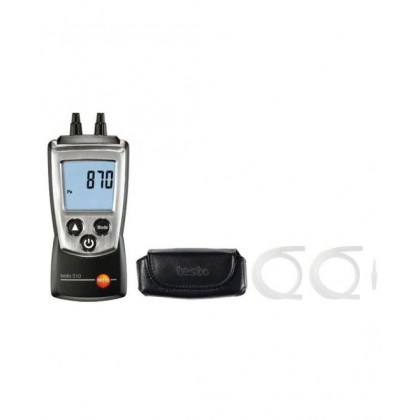

TESTO 510 KIT - Differential pressure gauge - TESTO
Testo 510 - pocket gauge line - TESTOTesto 510 - pocket gauge line - TESTOTesto 510 - pocket gauge line - TESTO
0563 0510
1-2 weeks

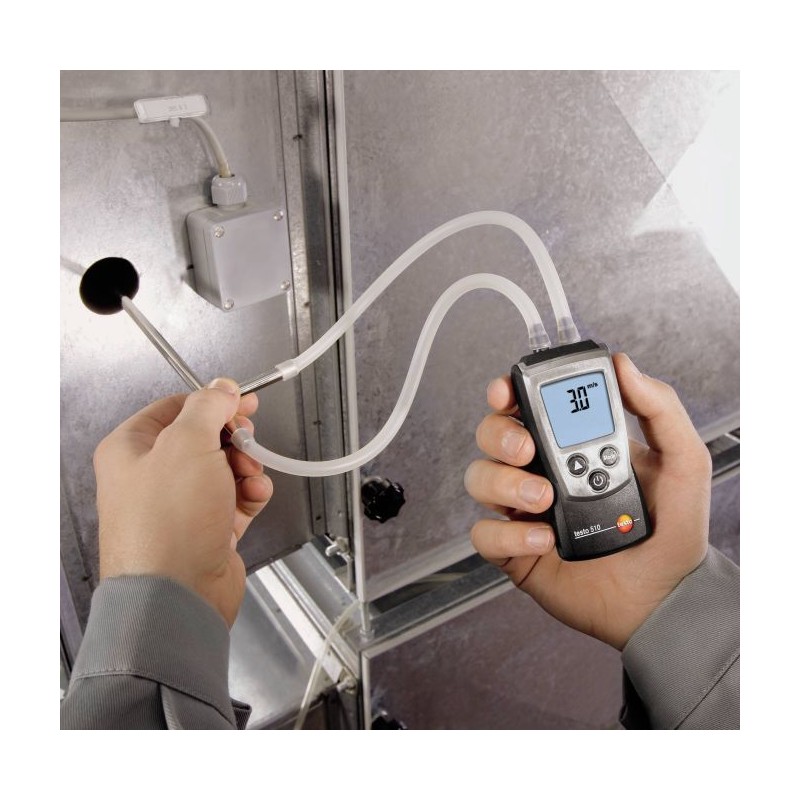

The differential pressure measurement with the testo 510 is temperature compensated for accurate measurements. They can be displayed in Pascal over the whole range. Magnets on the back of the device allow use hands-free. Used with a pitot tube, the Testo 510 displays the air speed. Atmospheric density can be compensated for allowing more accurate measurements.
- Option to display in Pascal over the whole measurement
- Accuracy: ± 0.03 hPa (0 ... 0.30 hPa) / ± 0.05 hPa (0.31 ... 1.00 mb)
- Temperature compensation
- Magnetic attachment
- Flow measurement using Pitot tube (not included with the camera)
- Air density compensation
- Protective cap
- Comes with strap and belt holder
- Backlit
- Choice units: hPa, mbar, Pa mmH2O, mmHg inH2O, inHg, psi, m / s, fpm
| Storage temperature | -40 ... +70 ° C |
|---|---|
| Operating Temperature | 0 ... +50 ° C |
| Battery Type | 2 batteries Type AAA |
| Autonomy | 50 h |
| Weight | 90 g |
| Size | 119 x 46 x 25 mm |
| Probe type Differential pressure | |
|---|---|
| Measuring range | 0 ... 100 hPa |
| Accuracy | ± 0.03 hPa (0 ... 0.30 mb) ± 0.05 hPa (0.31 ... 1.00 mb) ± (0.1 hPa + 1.5% of mv) (1.01 ... 100 hPa) |
| Resolution | 0.01 mb |
ISO calibration certificate / Pressure, 5 pts absolute pressure set on the beach
CONTACT U.S. FOR A QUOTE | 0520 0125 |
ISO calibration certificate, 3 pts absolute pressure set on the beach
CONTACT U.S. FOR A QUOTE | 0520 0185 |
