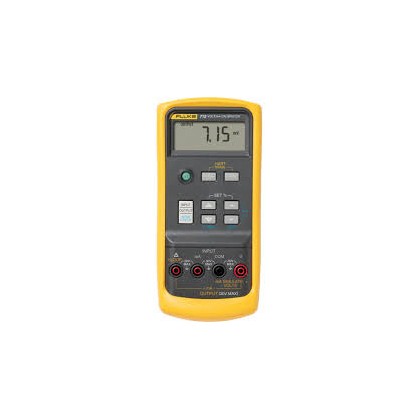

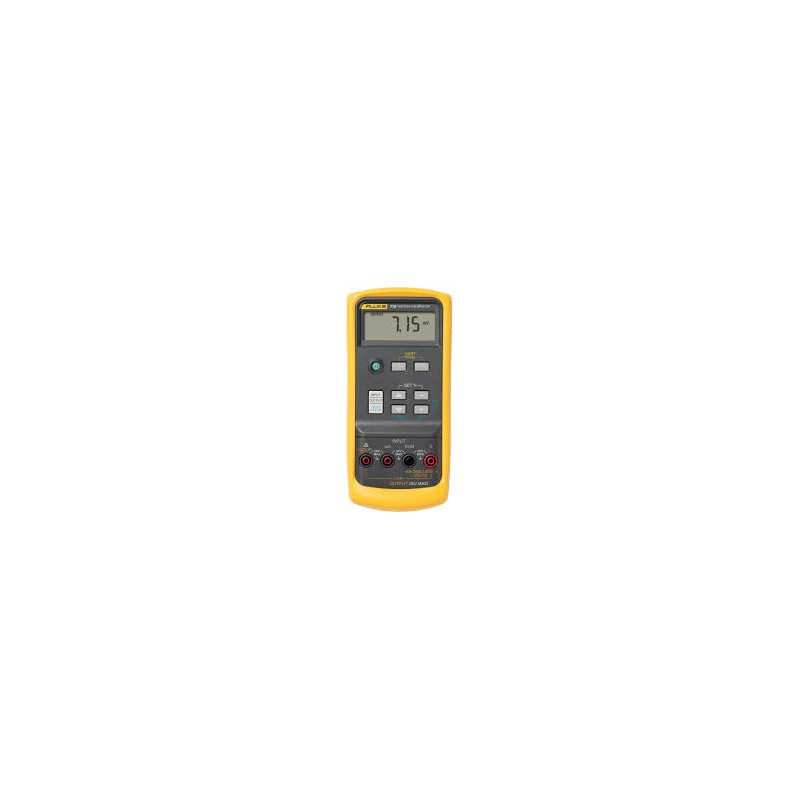

FLUKE 715 - Calibrator Voltage MA

FLUKE 715 - Calibrateur Tension MA

FLUKE 715 - Calibrator Voltage MAFLUKE 715 - Calibrator Voltage MAFLUKE 715 - Calibrator Voltage MA

More details



FLUKE-715

within 3 weeks

1 301,00 € tax excl.
1 561,20 €tax incl.


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

  • Signal measurement loop current (0-20 mA, 4-20 mA) with very high accuracy of 0.015% and a resolution of 1 mA
  • Measurement process signals output voltage from the API / transmitters
  • Generation or simulation of a loop current of 24 mA
  • Source voltage of 100 mV or 10V
  • 24V loop supply with simultaneous current measurement
  • Advanced measurement of voltage and current, and generation of precision
  • Increased autonomy of the battery
  • 250 ohm HART resistor with loop power
  • Holster pocket for test leads
  • Compatible with the magnetic suspension system
  • Linear ramp function output levels and
  • Parameters of the zero and span configurable

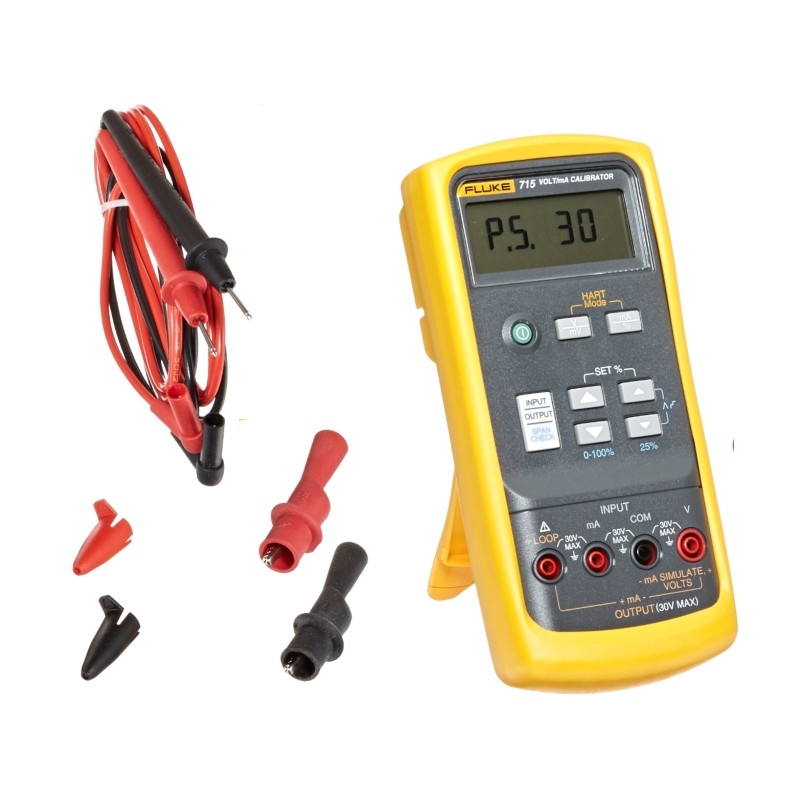

Calibrator Volt / mA delivered with:



  • Protective shell with yellow pocket for test leads
  • Instruction sheet (14 languages)
  • 9 V alkaline battery
  • Test leads with alligator clips
Functional Features
Measurement / Generation mV
Range:0 to 100 mV
Resolution:0.01 mV
Accuracy:0.02% + 2 points
Measure / V-Generation
Range:0-10 V
Resolution:0.001 V
Accuracy:0.02% + 2 points
Measurement / Generation / Simulation mA (% range)
Range:0-24 mA (-25% to 125%)
Resolution:0.001 mA
Accuracy:0.015% + 2 points
Note: Display of the absorption(Simulating transmitter) in mA or% of span
Specifications
Loop Power
Range:24 V DC
Accuracy:+ / - 10%
Note: Variable speed, 20 mA ΰ 1000 Ω with a battery> 6.8 V, 700 Ω with a 6.8 V battery 5.8 ΰ
Display
LCD 5 digit net
CaracEnvironmental characteristics
Operating Temperature
-10 º C to 55 º C
Storage temperature
-40 º C to 60 º C
Humidity (without condensation)
95% (10 º C to 30 º C)
75% (30 º C to 40 º C)
45% (40 º C to 50 º C)
35% (50 º C to 55 º C)
Operating Altitude
3000 m max.
Safety Features
Security
CSA C22.2 No. 1010.1:1992
Mechanical & General Specifications
Dimensions
187 x 87 x 32 mm
(L x W x D)
Weight
Approx. 330 g
Warranty
3 years
Shock and Vibration
Random, 2 g, 5-500 Hz
Drop test of 1 m
Battery Type
9 V alkaline battery ANSI / NEDA 1604A or IEC alkaline 6LR619V
