Using the battery check function is optional and is more comfortable to use but does not exempt you from the control unit to a power source before and after use.

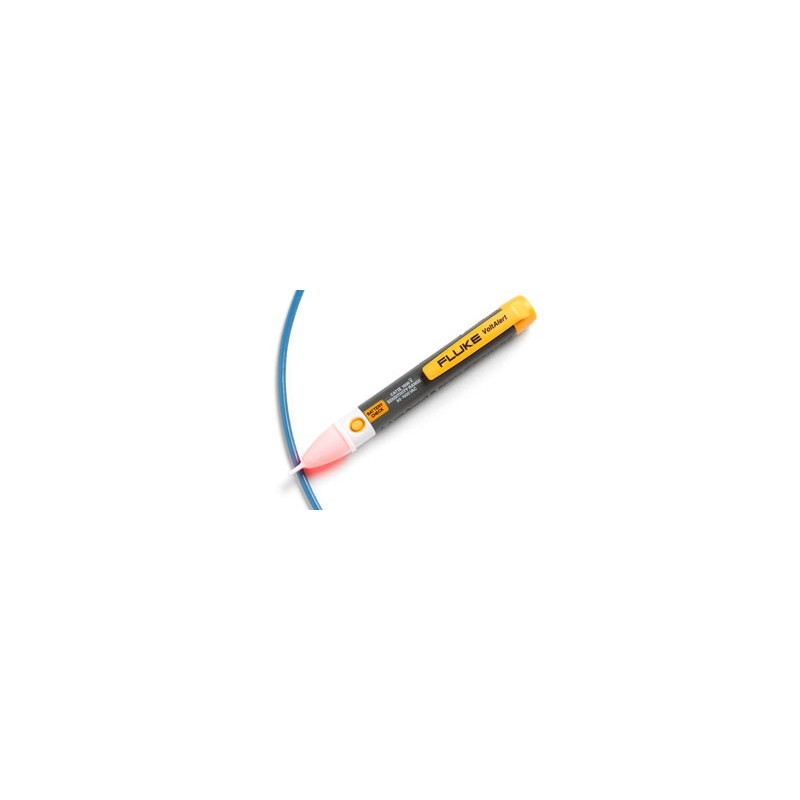

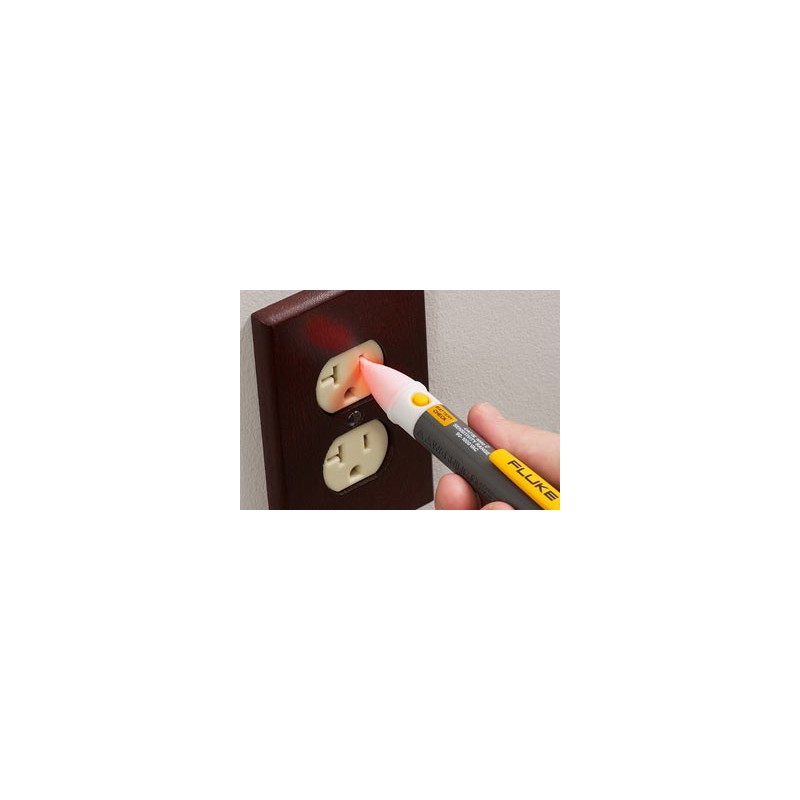

|Operating principle||Analyze the electrostatic field generated by a fixed voltage AC through the isolation and without direct contact with the connector exposed. The tip glows red to indicate the presence of a voltage.|
|Compliance with safety standards:||consistentto IEC 61010-1:2001, UL 61010-1 (2nd ed.) CAN/CSA-C22.2 No. 61010-1-04 and ISA-82.02.01 Pollution degree: 2|
|EMC compliance:||according to IEC 61326-1:2006|
|Operational:||200 V AC to 1000 V AC, CAT IV 1000 V|
|Temperature:||Operating: -10 ° C to 50 ° C |
Storage: -10 ° C to 50 ° C
|Humidity:||0% to 95% |
0% to 75%
0% to 45%
|Altitude:||2000 m (1000 V CAT IV)|
|Cleaning:||Clean only with a damp cloth|
|Battery life:||Usually more than one year|
|Warranty period:||Two years|
