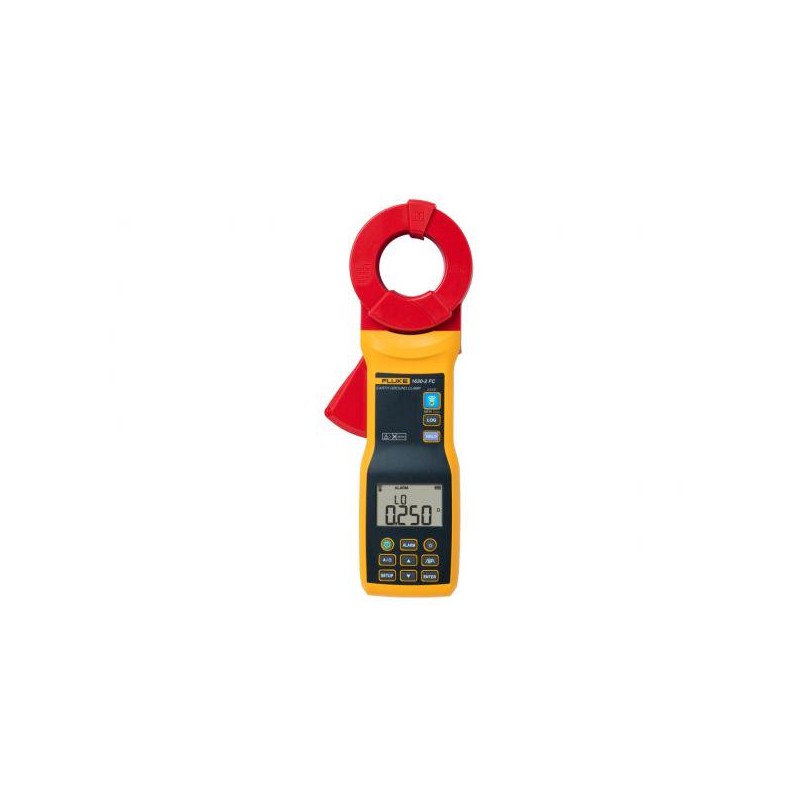

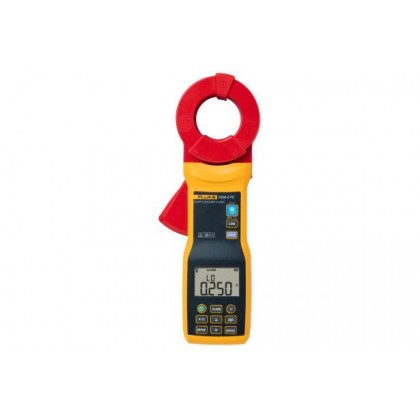

Clamp Meter Fluke 1630 Earth

Clamp Meter Fluke 1630 EarthClamp Meter Fluke 1630 EarthClamp Meter Fluke 1630 Earth

Clamp Meter Fluke 1630 EarthClamp Meter Fluke 1630 EarthClamp Meter Fluke 1630 Earth

More details



FLUKE-1630-2FC

period 2 / 3 weeks

1 538,00 € tax excl.
1 845,60 €tax incl.


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire



Test system Stakeless
The Fluke 1630 uses the test Stakeless, which avoids having to disconnect systems grounded parallel and find suitable locations for placing auxiliary ground stakes. It represents a saving of time and allows utilities to industrial equipment and specialized technicians performing troubleshooting on site to conduct checks of ground loops in places where it is impossible to use other techniques, including inside buildings or on power poles. Using the test method without pole, ground rods are no longer required. The Clamp Meter Fluke 1630 Earth is placed around the ground rod or cable connection. A predetermined voltage is produced by half of the clamp and the current is measured by the other half. The tester automatically determines the resistance of the ground loop at this ground connection.



  • Resistance range of earth loop range (0.025 to 1500 Ω) to meet all needs
  • Large jaw opening (35 mm) for tests on drivers of neutral current and / or equipotential bus bars
  • Measurement of leakage currents to earth (from 0.2 to 1 000 mA) without any disconnection: ideal for troubleshootingsystem
  • Measuring Range AC Current range (0.2 to 30 A) to use an instrument for multiple applications
  • Limit high / low alarm set by the user for a rapid assessment measures
  • Button 'Display Hold' practice to record measurements in places difficult to access
  • Memory function that automatically records and stores measured values, providing a time saving
  • Automatic self calibration ensures correct measurement every time
  • Protection against overload: 200 A
  • Bag and loop resistance test included
  • Time is less than or equal to 8 hours (continuous use)
  • Earth clamp meter
    Includes:

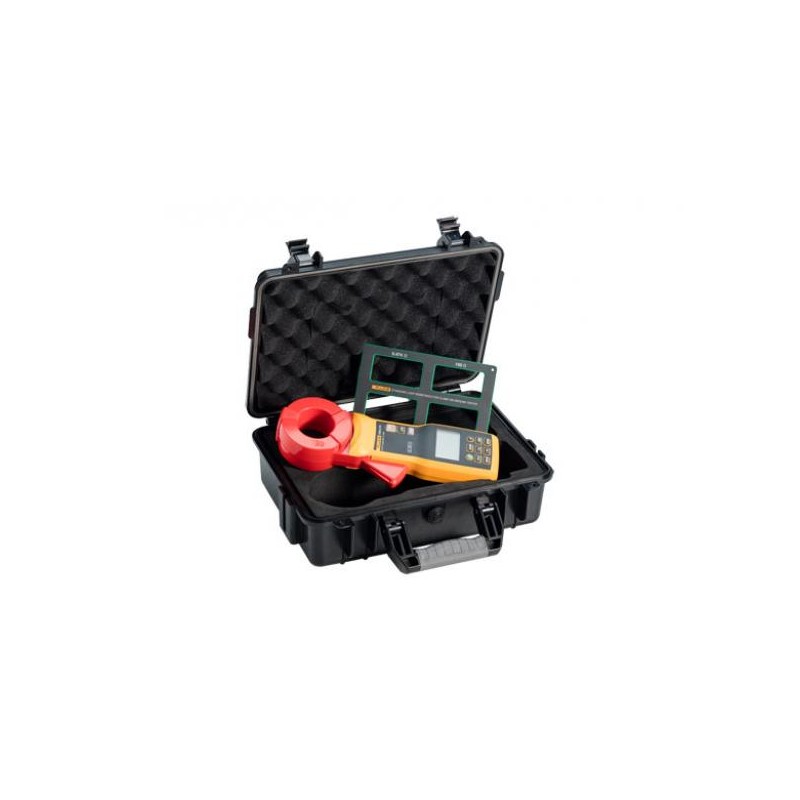

    • Rugged carrying case with shoulder strap
    • Loop resistance test
    • 9 V battery
    • Manual in English, French, Spanish, German, Italian, Portuguese and Chinese Simplified



general characteristics
Operating error
Operating temperature, 2 year warranty
Storage temperature range
-20 ° C to 60 ° C
Reference temperature
23 ° C ± 5 ° C
Storage humidity
<75% RH
Operating Humidity
<85% RH
Display
LCD 999 points (display special symbols)
Protection
IP30 according to IEC 60529 529/EN
Security
IEC 61010-1 and IEC 61010-2-032 CAT III 300V, pollution degree 2
Weight
750 g
Conductor Size
35 mm
Dimension (length x width x depth)
276 x 100 x 47 mm
Emissions
IEC 1000 4-2, IEC 61326 class B-I
Immunity
IEC 61000-4-2, 8kV (Air) Criterion A
IEC 61000-4-3, 3 V / m performance criteria A
Range Selection
Auto
Overload indicator
Display "OL"
Measuring Time
0.5 s
Measuring frequency
3.333 kHz
Battery Type
9V alkaline (type IEC 6 LR 61)
Battery life
≥ 8 hours (continuous use)
Consumption
40 mA
Indication Low battery
Symbol on the screen
Resistance of the ground loop (autoranging Autorange)
Range
Accuracy
(±% of the measure in Ω)
0.025 to 0.25 Ω
My ± 1.5%. ± 0.02 Ω
0.25 to 9.999 Ω
My ± 1.5%. ± 0.05 Ω
10 to 99.99 Ω
My ± 2%. ± 0.3 Ω
100 to 199.9 Ω
± 3% of my. ± 1 Ω
200 to 0.25 Ω
± 5% my. ± 5 Ω
400-600 Ω
± 10% Meas. ± 10 Ω
600 - 1 500 Ω
± 20%
Note:
Loop resistance with no inductance, external magnetic field with <50 a="" m="" external="" electric="" field="" 1="" v="" conductor="" centered="" td="">
