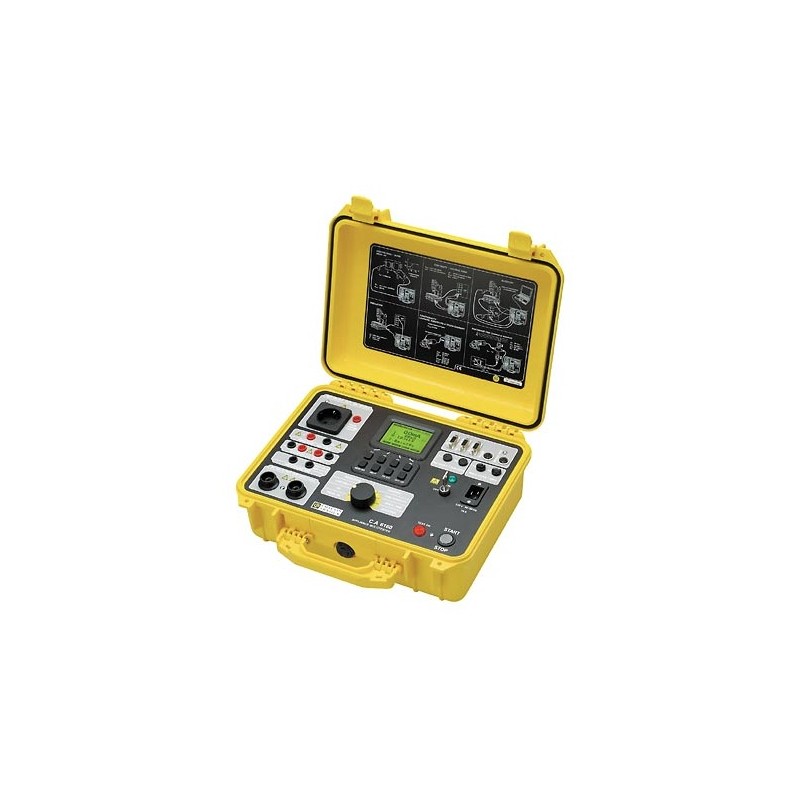

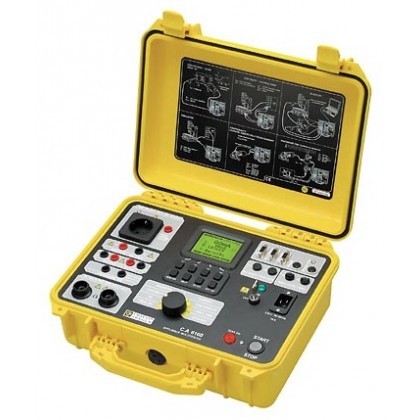

NEW An expert for the compliance of your equipment! The CA 6160 is a portable and efficient to realize the full certification testing of a large number of appliances and electrical equipment: dielectric test, continuity, voltage drop, resistance insulation, leakage current, discharge time and functional test.

  • Dielectric test: methods of measurement standard (A 100 to 5000V with Ilim 500mA) and set (t1, t2, t3, U1, U2)
  • Continuity: up to 100Ω with 0.1 <25a li="">
  • voltage drop: up to 100V (Itest> 10A)
  • Insulation resistance: up to 1000VDC and 1GΩ under 250/500VDC
  • time measurement of internal and external shock (at the plug)
  • leakage currents and residual operating up to 20mA and contact up to 2mA
  • functional test: voltage, current, frequency and power
  • SELF TEST function for automatic sequence of a sequence of measures (50 max)
  • Extended memory: 1600 measurements
  • software to download stored data, creating test reports and program measurement sequences
  • comes standard with all cables necessary measuring and many optional accessories
  • Dimensions: 410 x 175 x 370 mm - weight: 13.5 kg
