CA6030 - Controller Setup - Chauvin Arnoux

CA6030 - Controller Setup - Chauvin ArnouxCA6030 - Controller Setup - Chauvin ArnouxCA6030 - Controller Setup - Chauvin Arnoux

CA6030 - Controller Setup - Chauvin ArnouxCA6030 - Controller Setup - Chauvin ArnouxCA6030 - Controller Setup - Chauvin Arnoux

More details



P01191511


Comment faire une demande de devis : Ajouter au devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

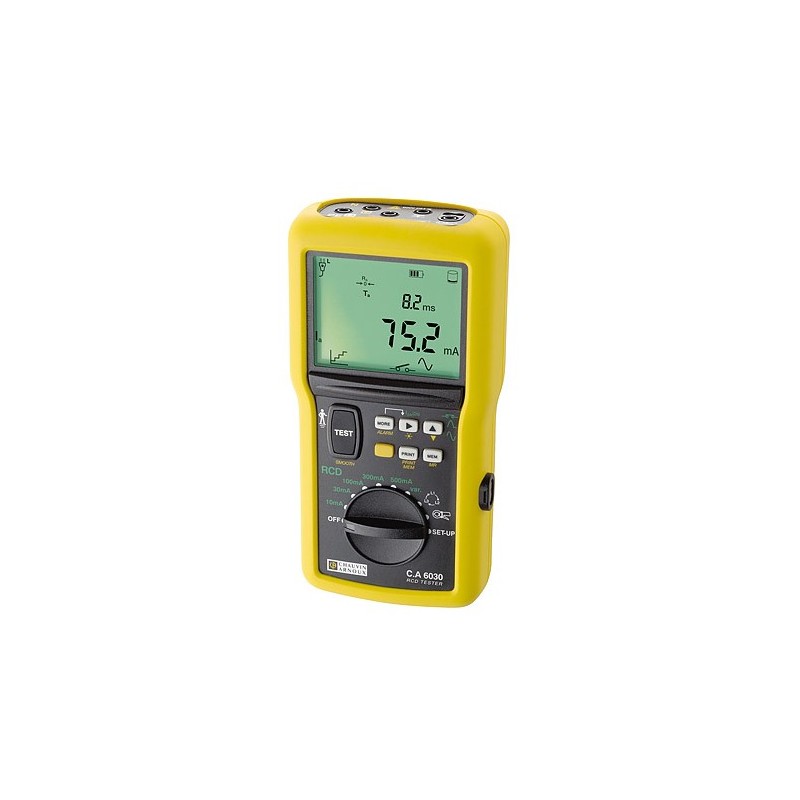

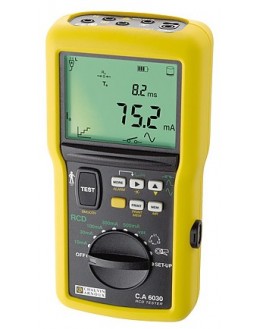

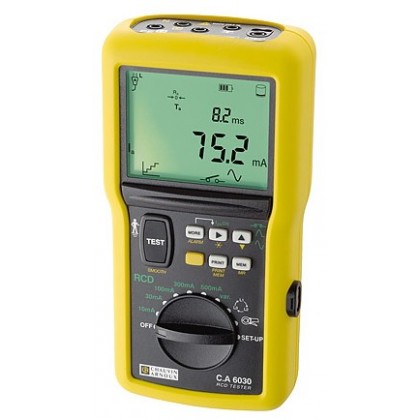

The complete and precise control of circuit breakers and the measurement of earth loop Innovative and user friendly, the differential controller CA 6030 provides user comfort and real performances for checking guards and thus put facilities in accordance with NF C 15-100.

  • safe and direct connection to an electrical outlet installation
  • reliable measurements with the automatic switching between L and N if the wires are reversed at the outlet
  • automatic measurement of voltage and frequency of the installation
  • test on standard types of differential, selective, A or AC
  • 5 + 10/30/100/300/500mA fixed gauges gauge adjustable from 6 to 650mA
  • test for non-disjoction / timing (pulse mode or ramp) and the exact current (ramp mode) for triggering
  • able to live earth: ground loop and ground 1P
  • measuring current & leakage current clamp (optional)
  • Sense Test Phase rotation (2 or 3 son)
  • Cat.III 600V
  • programmable alarms, memory stamped results, direct printing of measurement readings series printer and PC data transfer (transfer software provided as standard)
  • large backlit display / bag hands free
  • battery power, autonomy of 2000 tests
  • dimensions: 270x250x180mm, weight: 900g
