STILL MORE THAN NEW! vide.gif
Qualistar V2 4U/4I and many more features!
The analyzer power quality and power grids Qualistar + enables rapid verification of the electrical network and an effective analysis of results.

Apart from minor improvements, the arrival of version V2 + Qualistar brings major features:

- Ratio of voltage: 1V to 500kV/Configuration or grouped by
- Mix of sensors:
Depending on the sensor, from 10mA to 60kA
Desired combination: the measurements are made simultaneously from several different current sensors.
- Level adjustment Transitional Adjustment V or A / System or grouped by

Ergonomics designed to save time!
Responsive control services and maintenance, Qualistar are designed to quickly verify the quality of networkx and easily exploit the results.

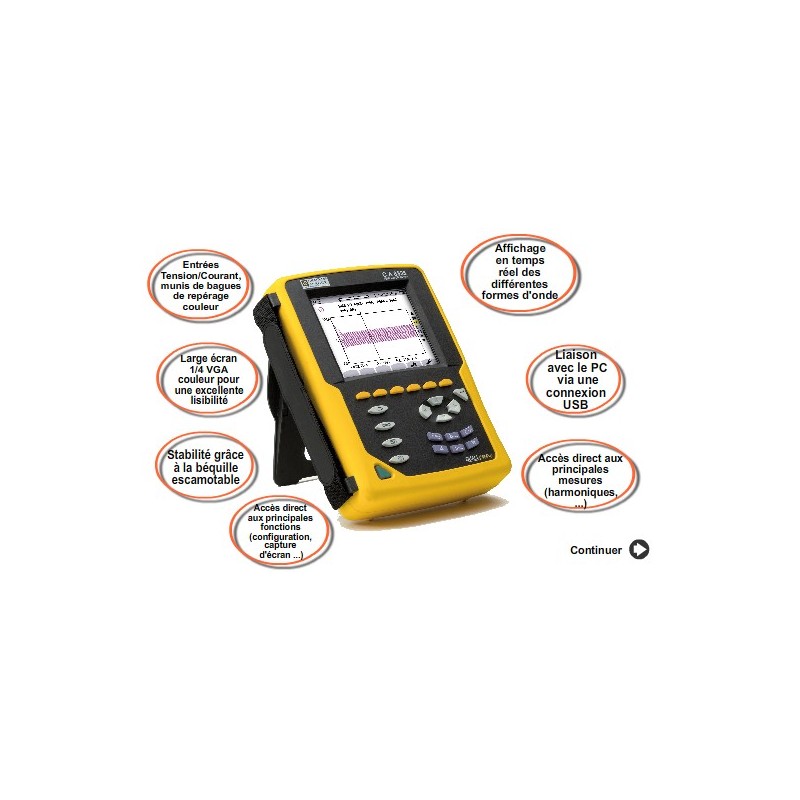

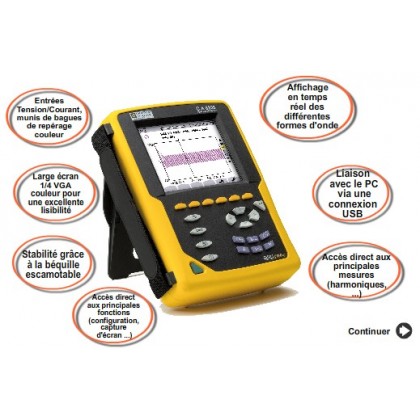

The keyboard is split into easily identifiable zones (direct functions, pop-up menus,

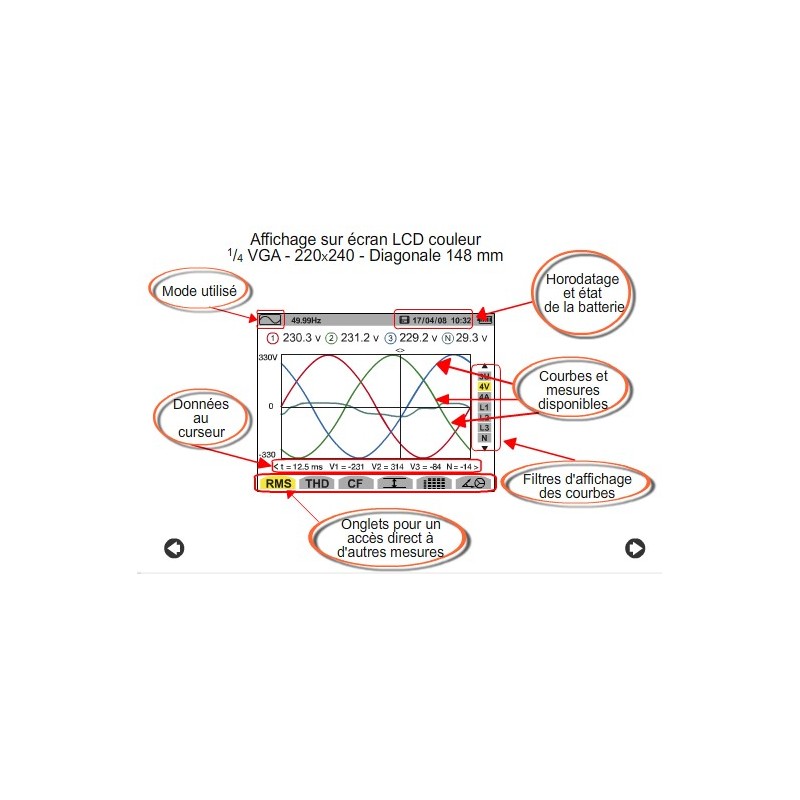

cursors ...), the wide color screen (diagonal 148 mm) contains the symbols on the keyboard. Modes
displays are structured. These provide direct access gain extra time.
The Qualistar are portable but are used as resting on its retractable stand: useful for campaigns long recording times.
In the Qualistar + +, color rings are positioned at each end of the test leads for easy identification of connections.
And more than 25 languages ​​are already available!
Mains PA30W
Ref. P01102057
USB cable-A USB-B
Ref. P01295293
Film Screen Protector QUALISTAR
Ref. P01102059
Thurs-Pawn Rings
Ref. P01102080
WATTMETER CA 8335 AMP450
Ref. P01160573
WATTMETER CA 8335 AMP800
Ref. P01160574
WATTMETER CA 8335 C193
Ref. P01160576
WATTMETER CA 8335 MN
Ref. P01160571
WATTMETER CA 8335 MN93A
Ref. P01160572
WATTMETER CA 8335 CAP
Ref. P01160575
CA 8335 WATTMETER WITHOUT CLAMP
Ref. P01160577
