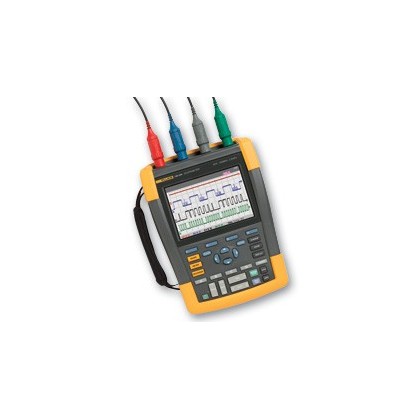

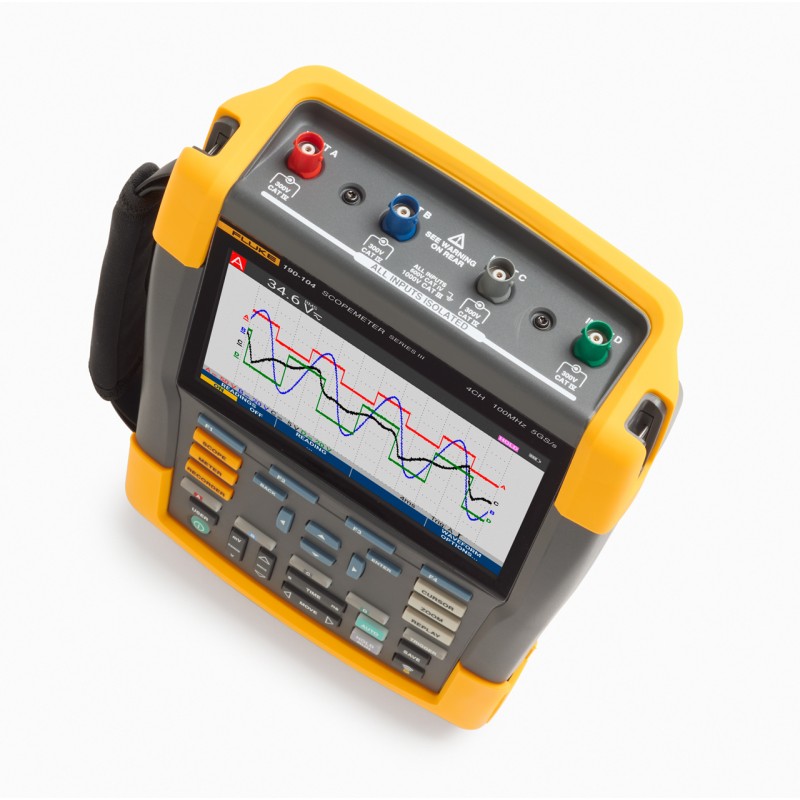

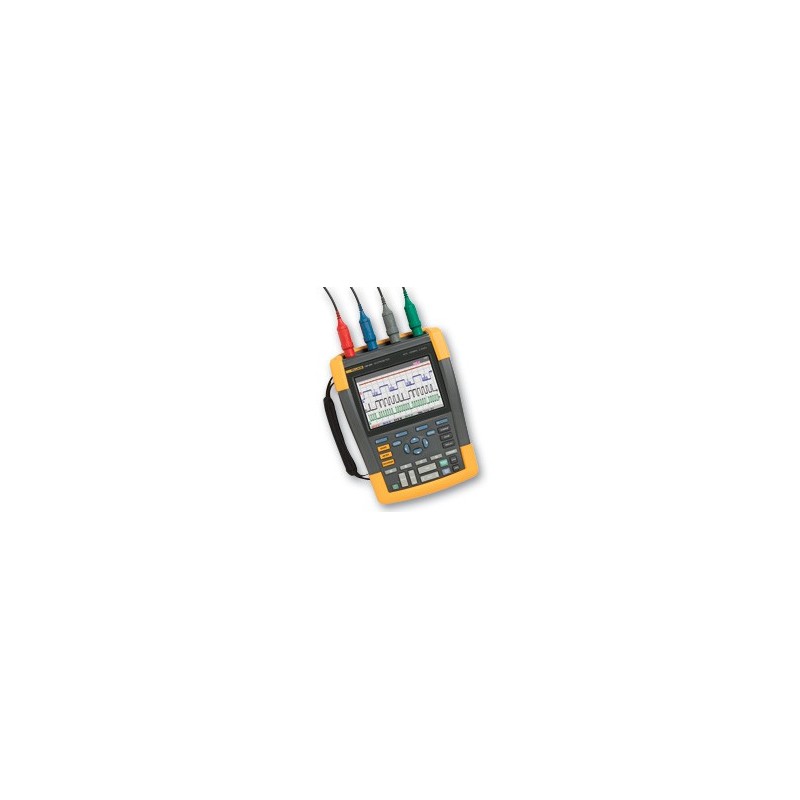

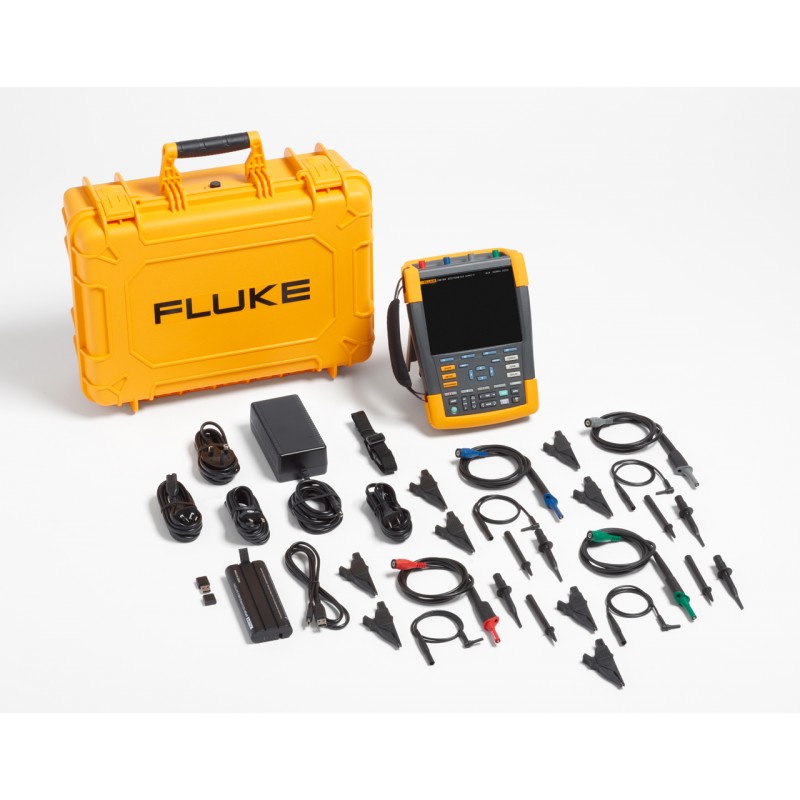

Fluke 190-104S - Color ScopeMeter (100 MHz, 4 channels) with SCC290 kit

Sale! Fluke 190-104S - Color ScopeMeter (100 MHz, 4 channels) with SCC290 kitFluke 190-104S - Color ScopeMeter (100 MHz, 4 channels) w

Fluke 190-104S - Color ScopeMeter (100 MHz, 4 channels) with SCC290 kitFluke 190-104S - Color ScopeMeter (100 MHz, 4 channels) w

More details



FLUKE-190-104/EU/S

within 3 / 4 weeks

4 458,00 € tax excl.
5 349,60 €tax incl.


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

Four-channel portable oscilloscope first certified CAT III 1000 V / CAT IV 600 V, the new Fluke ScopeMeter 190 Series II is a combination of performance and robustness in a portable format. Choose from models 100 MHz or 200 MHz bandwidth, with sampling frequencies in real time up to 2.5 GS / s and a resolution of 400 ps for capturing the noise and other disturbances. Both models have an expanded memory, up to 10,000 samples per channel, which examines in detail some very small portions of the waveform. In addition, both models meet IP-51 for protection against dust, water drops, moisture and temperature variations ..





The new oscilloscope 190 Series II includes all the standard features of the ScopeMeter oscilloscopes, including recording modes and ScopeRecord TrendPlot ™ ™, the automatic Connect-and-View ™ and many other things:

  • Four isolated inputs
  • Certified CAT III 1000 V / CAT IV 600 V
  • Choose a model with 100 MHz or 200 MHz bandwidth
  • Triggering one shot pulse width and video
  • High sampling frequency, up to 2.5 GSPS with a resolution up to 400 ps
  • Memory etense capture waveform with 10 000 samples per channel to zoom in on details
  • Compliance with IP-51 on protection against dust and water droplets, ensuring resistance to harsh environments
  • Isolated USB ports for memory devices and PC connectivity
  • Standard 8-hour autonomy with new Li-ion
  • Rapid replacement of the battery with its access door
  • A handy device allows you to block and lock the oscilloscope when left unattended

Unleash your power diagnostic while respecting the safety standard CAT IV

The new portable oscilloscopes ScopeMeter 190 Series II Fluke oscilloscopes are four-lane dual floating isolation certified for measurements in environments CAT III 1000 V / CAT IV 600 V.

oscilloscope

Inspect simultaneously input signals, output signals, feedback loops and safety interlocks to detect the following problems:

  • Overload voltage or current channels
  • Problems of measuring the time delay and signal timing
  • Mitigation / mismatch of the peremptoryinput impedance
  • Fluctuation or drift of the signal



oscilloscope

Take advantage of the four channels to test frequency converters and inverters used in applications of wind energy production and transportation:

  • Detect the harmonics, transients and expenses in the three phase power inputs
  • Troubleshoot faulty IGBT gates on the DC / AC.
  • Detect and transient reflections on PWM outputs.





Measure from mV to kV safely.

With the standard probes cover a wide range of applications, from mV to kV, you're ready for any eventuality, microelectronics applications in medium voltage industrial power. The entrances isolated eliminate risk of short circuits to ground, allowing you to perform measurements with different ground references.


oscilloscope

Challenge the toughest conditions with the only IP-51 certified oscilloscope market.

Robust and resistant to shocks, all portable oscilloscopesof the family ScopeMeter are built for harsh environments. Their waterproof housing protects from dust, water vapor, drops, moisture and air pollutants, ensuring the reliability and accuracy of each measurement.

A whole day working on a single charge

The new high performance batteries benefit from the Li-ion technology to allow you to work for eight hours. In addition, the access door to the battery allows you to replace quickly.


ScopeMeter usb

Capturing and sharing waveform with ease using the new USB connectivity

Two USB ports, electrically isolated input circuits of measures, can easily connect a PC or a USB memory device. Store an unlimited number of waveforms, screenshots and configurations of instruments in a USB memory device. Connect the oscilloscope to a PC via USB to transfer and archive your key measures, using the FlukeView for Windows.





oscilloscope

Enjoya stable display instantly using the automatic triggering Connect-and-View ™

Functionality Connect-and-View ™ triggering automatically configures correctly recognizing the profile of signals. Without touching a single button, you get a stable, reliable and reproducible in virtually any signal, including signals and motor control. Perform in no time measurement of many test points in quick succession.






oscilloscope

Save up to 48 hours of high resolution waveforms through ScopeRecord ™

ScopeRecord memory can store up to 27,000 data points per channel, capturing intermittent events and anomalies quickly. (Two sets of multichannel recordings can be stored for later analysis.)

  • The oscilloscope stores events like motion profiles, ASI, food and starts the engine.
  • Mode Stop-on-trigger, the ScopeMeter automatically recognize a power failure and store the waveform data preceding it.
  • With the zoom waveform (up to 100x), you can examine the smallest details, like individual power cycles.



oscilloscope

Save up to 16 days with the recorder paperless TrendPlot ™ to detect intermittent failures.

Intermittent faults can be caused by poor connections, dust, dirt, corrosion or to cables or connectors damaged. The power cuts, brownouts or starts and stops of a motor can also stop a machine. The function of the ScopeMeter Fluke TrendPlot you can detect these faults in the following ways:

  • by plotting the peak values ​​minimum, maximum and average over a maximum period of 16 days;
  • tracing any combination of voltages, currents, temperature, frequency and phase on the four entrances, all these values ​​are time-stamped to identify failures.



Specifications

Bandwidth

Fluke 190-204: 200 MHz
Fluke 190-104: 100 MHz

Sampling in real gst

Fluke 190-204: 2.5 GS / s
Fluke190-104: 1.25 GS / s

No. channels

4

Independently floating

Up to 1000 V between channels, reference and ground

Timebase

5 ns - 2 min / div

Input Sensitivity

2 mV-100 V / div

Trigger types

Connect-and-View ™, NFU (Free Run), One-shot, edge, time, video, pulse width selectable external

Double edge trigger and events (number of cycles)

Transient capture

8 ns

Oscilloscope Measurements

Cursor: 7
Automatic: 30

Maximum Length

ScopeRecord mode: 27,500 points per channel
Oscilloscope mode: 10,000 points per channel

Memory

+ Settings screens: 15
Replay + Configurations: 2

Display

Color LCD with 144 mm high frequency update

Persistence

Decay signal oscilloscopes analog idem (activated by the user)

Reference waveform

Visual reference and test pass / fail "Automatic



Environmental Specifications

Operating Temperature

0 º C to 40 º C Supplied with batteries

0 º C to 50 º C. The exception batteries

Storage temperature

-20 to +60 ° C

Operating Altitude

Up to 2000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V, up to 3.000 M (10,000 ft) CAT III 600 V, CAT II 1000 V



Safety Features

Electrical Safety

1,000 V CAT CAT IV III/600V (EN61010-1)



Mechanical & General Specifications

Dimensions

270 x 190 x 70 mm

Weight

2.2 kg

Warranty

3 years parts and labor (1 year on accessories)

Battery

Li-ion battery: Up to 7 hours

USB interfaceIsolated USB ports for memory devices and PC connectivity
