Current Clamp AC small size, convenient and effective

Fluke Current clamps are the ideal tools to extend the current ranges of Multimeters by.

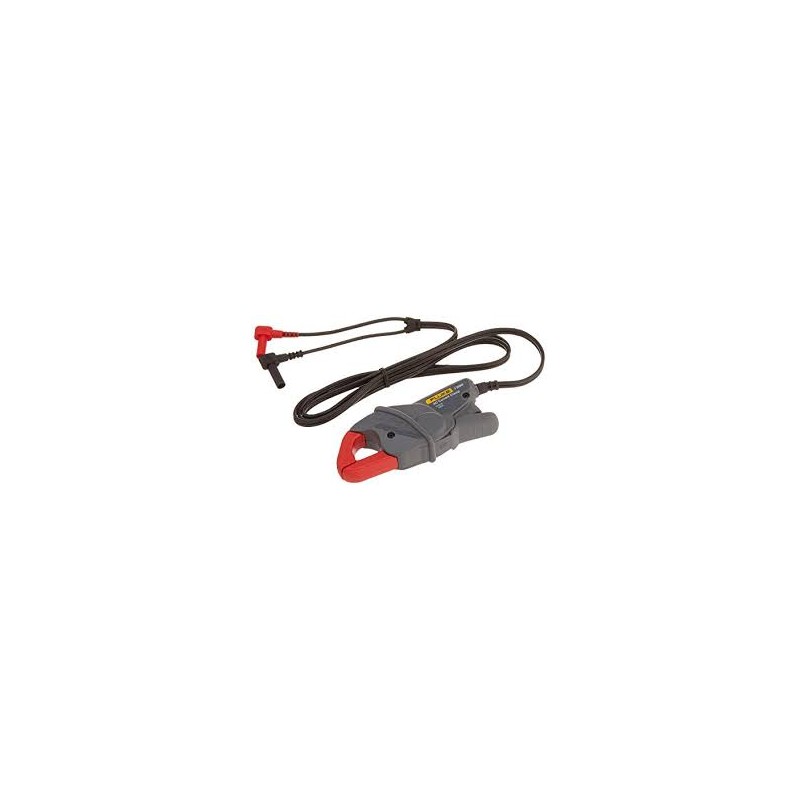

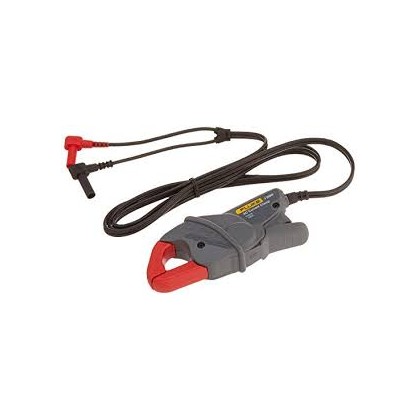

The Fluke i200 Current Clamp is a single phase AC with a 200A output as a signal intensity through two safety shrouded banana plugs. The i200 is compatible with most Fluke multimeters and with any measuring instrument that accepts shrouded banana plugs.



Specifications
Nominal current range
200 A
Continuous current range
0.5 A - 200 A
Maximum current nondestructive
240 A
Lowest measurable current
0.5 A
Basic Accuracy
1% + 0.5 A
(48-65 Hz)
(% Reading +.)
Usable frequency
40 Hz - 10 kHz
Level (s) output
1 mA / A
Safety Features
Security
CAT III 600 V
Maximum Voltage
600 V AC
Mechanical & General Specifications
Warranty
1 year
Maximum diameter of conductor
20 mm
Maximum size conductor (power bar)
20 x 5 mm
Length of output cable
1.5 m
Shielded banana plug output
Yes
