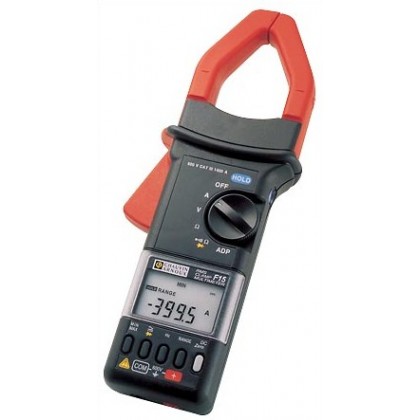

F15 - Digital Clamp Meter TRMS AC / DC - Chauvin Arnoux

F15 - pince multimètre numérique TRMS AC/DC - CHAUVIN ARNOUX

F15 - Digital Clamp Meter TRMS AC / DC - Chauvin ArnouxF15 - Digital Clamp Meter TRMS AC / DC - Chauvin ArnouxF15 - Digital Clam

More details



P01120755


Comment faire une demande de devis : Ajouter au devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

All functions of a multimeter in a clamp 1000A RMS & DC
To ensure flawless quality measurement, the F15 is a measure true RMS (RMS), whatever the current, deformed or sinusoidal. It also offers the DC measurement with fully automatic setting of zero.

• AC current (RMS): 0.2 to 400 and 700A (2 cal.)
• DC current 400 and 1400A DC (2 cal.)
• Accuracy: 2.5% + /-2pt *
• AC & DC voltage: 400 to 600V (5 cal.)
• Accuracy: 1.5% + /-2pt *
• RMS (TRMS)
Auto • AC / DC and auto-range (with manual selection possible)
• Bandwidth: 45Hz-450Hz
• Resistance: 400Ω to 0.5-4MΩ (5 cal.)
• Audible continuity test: R <40Ω
• frequency 1.00 Hz to 4 kHz (3 cal.)
• functions: automatic DC zero, memory, the max / min and automatic shutdown
• gauge adapter (ADP) 0-4000mV, prev. 0.1% + / -15 pt
• Clamping: 1 cable Ø42 mm, Ø25 mm 2 cables, 2 bars 50 x 5mm
• Electrical safety: IEC 1010 & IEC1010-2-032 600V Cat III-2
• Dimensions: 254 x 97 x 46mm - weight: 600g
