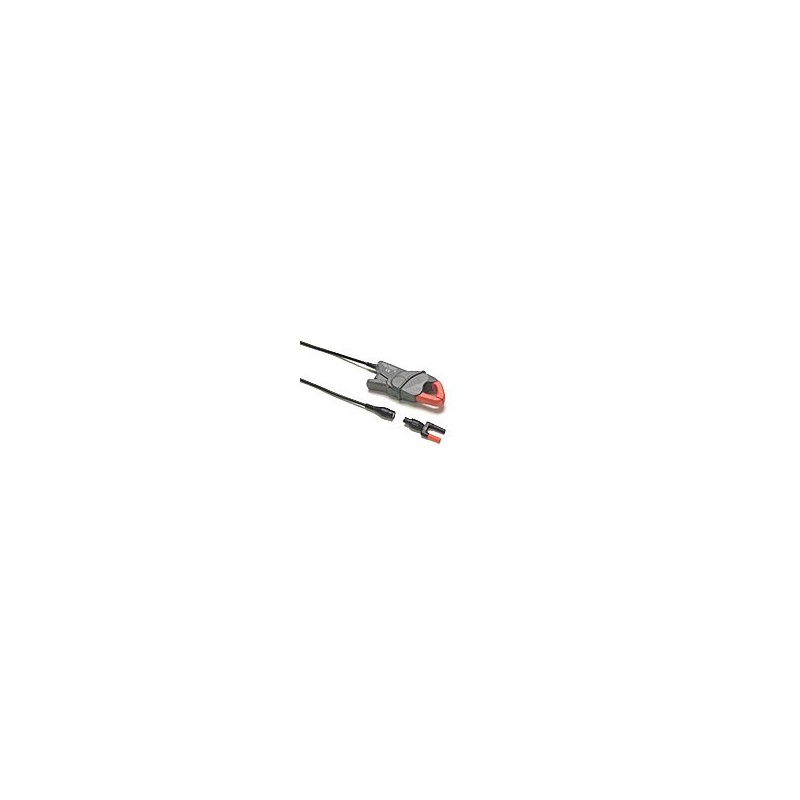

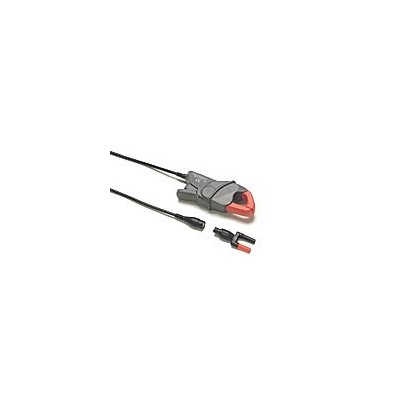

Current Clamp AC small size, convenient and effective

Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools offered by. The Fluke i200s current clamp is a two-lines (20A and 200A AC) with an output as a voltage signal via a BNC connector incorporating a safety insulation. Two banana plugs an adapter to BNC is provided to allow connection to the i200s multimeters equipped with banana inputs.



  • Accessory ScopeMeter, DMM or Analyzer can measure currents up to 200 A AC
  • DMM adapter included
  • Two ranges: 20 A and 200 A, exit 10 or 100 mV / A
  • Accurate current measurements without breaking the circuit
  • Max. Driver: 20 mm
  • Certified CAT III 600 V



Specifications
Nominal current range
20 A
200 A
Continuous current range
0.1 A - 24 A
0.5 A - 200 A
Maximum current nondestructive
240 A
Lowest measurable current
0.1 A
Basic Accuracy
1.5% +0.5 A
(48-65 Hz)
(% Reading +.)
Usable frequency
40 Hz - 10 kHz
Level (s) output
100 mV / A
10 mV / A
Safety Features
Security
CAT III 600 V
Maximum Voltage
600 V AC
Mechanical & General Specifications
Warranty
1 year
Maximum diameter of conductor
20 mm
Maximum size conductor (power bar)
20 x 5 mm
Length of output cable
2.0 m
BNC adapter
Yes
BNC to banana adapter included
Yes
