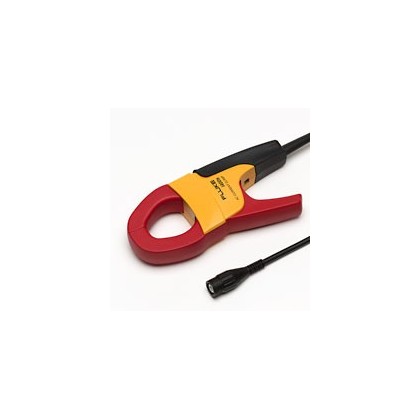

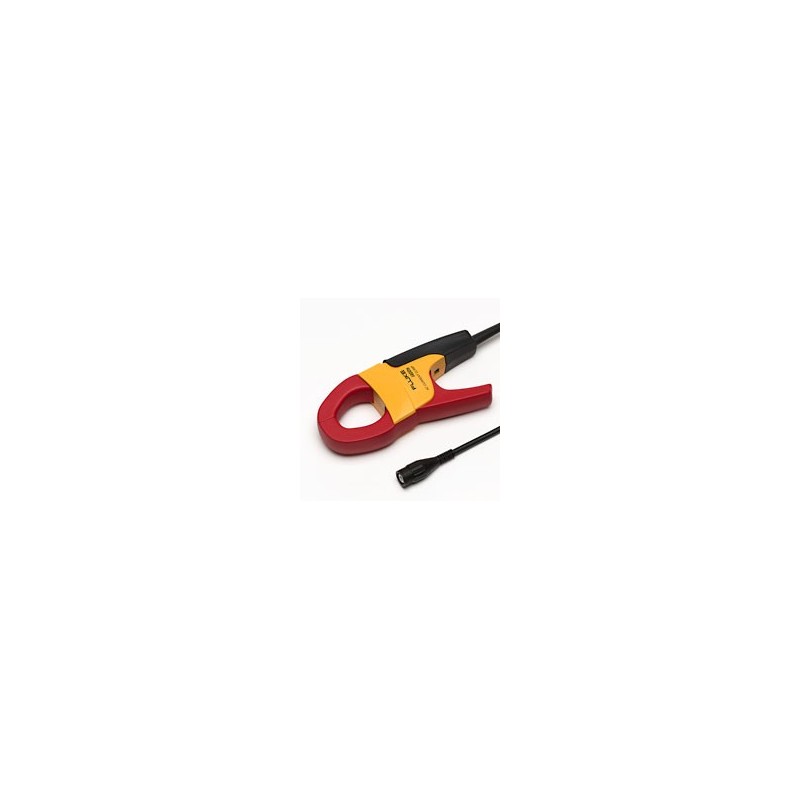

I400 AC Current Clamp

pince de courant AC I400S

I400 AC Current ClampI400 AC Current ClampI400 AC Current Clamp

More details



I400S

within 2 weeks

436,00 € tax excl.
523,20 €tax incl.


Comment faire une demande de devis : Transformer mon panier en devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire



  • ScopeMeter Accessory or Analyzer can measure currents up to 400 A AC
  • Coupled to a current clamp certified CAT IV 600 V / CAT III 1000 V, these solutions are ideal for instruments measuring current CAT IV.
  • Compact design for maximum comfort
  • To measure current without breaking the circuit
  • Non-slip flexible molded handle
  • Can be used with digital multimeters equipped with the BNC / Banana PM9081/001 (optional)
  • Two ranges: 40 and 400A, exit 10 or 1 mV / Amp
  • Max. Driver: 32 mm



Specifications
Nominal current range:
A range of 400.5 A to 40 A
Range of 400 A5 A to 400 A
Basic accuracy:
A range of 402% + 0.015 A (45 - 400 Hz)
Range of 400 A2% + 0.04 A (45 - 400 Hz)
Phase shift:
A range of 40
0.5 to 1 AUndefined
1-5 A4 °
5-10 A3 °
10-20 A3 °
20-40 A2 °
40-400 ASO
Range of 400 A
0.5 to 1 ASO
1-5 ASO
5-10 AUndefined
10-20 A2 °
20-40 A2 °
40-400 A1.5 °
Bandwidth type:
A range of 405 Hz - 10 kHz
Range of 400 A5 Hz - 10 kHz
Level (s) of release:
A range of 4010 mV / A
Range of 400 A1 mV / A
Crest Factor:
A range of 40≤ 3
Range of 400 A≤ 3 to 300 A
≤ 2.5 to 400 A
FeaturesSecurity
Security
CAT IV 600 V, CAT III 1000 V
Maximum Voltage
1000 V AC
Mechanical & General Specifications
Warranty
1 year
Maximum conductor size
32 mm (1.25 inches)
Length of output cable
2.5 meters (8.2 feet)
BNC adapter
Yes
Dimensions
150 x 70 x 30 mm
Weight
114 g
