Finally diagnostics electrical work!

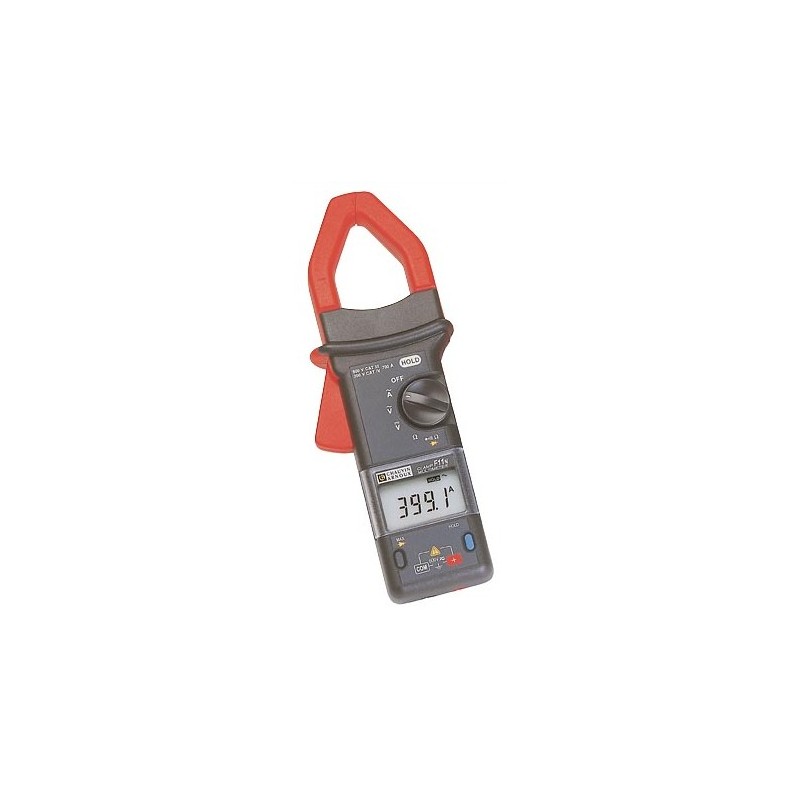

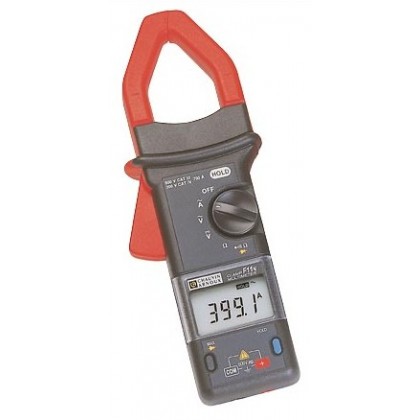

Two devices in one: F11N combines the advantages of a clamp to the scope of functions of a multimeter.
For the measurement of intensity on U1000RO2V 1x630-2, HO7RNF 1x300-2 or 2 bars of 50x5mm.

• AC intensity: 400 and 700A (2 cal.)
• Accuracy ± 2% at 0.5 A cal. 400A, 2% cal. 700A
• AC & DC voltage: 400 to 600V (2 cal.)
• DC accuracy 0.5%, 1% AC
• Bandwidth: 45-450Hz
• average value
• Impedance: 1MW
• Resistance: 400Ω to 4kΩ (2 cal.) Prev. 1%
• Audible continuity test: R <40Ω
• memory functions and maximum value
• Clamping: Ø42mm cable, 2 bars 50x5mm
• Electrical safety: IEC 1010 600V Cat III-2
• Dimensions: 254 x 97 x 46 mm. Weight: 600g
