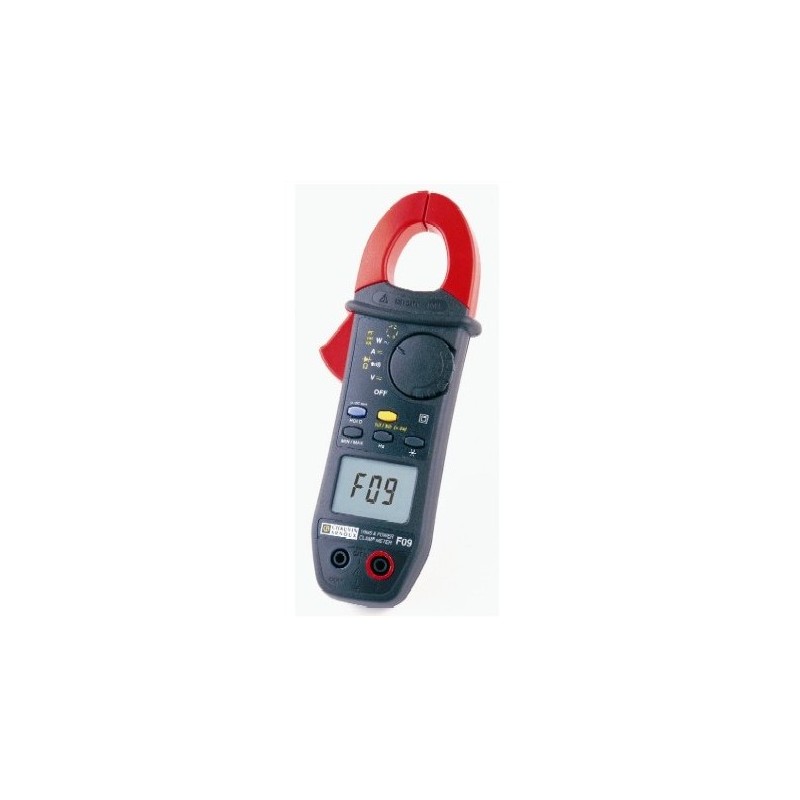

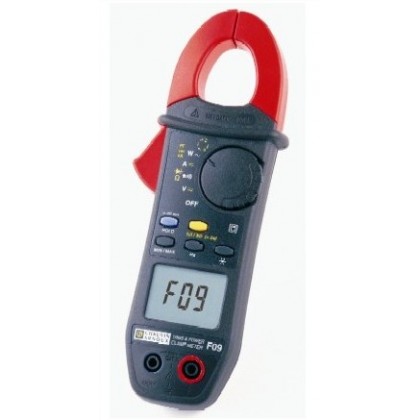

A pocket clip TRMS AC + DC Full Auto
In paperback, a mat, the new small-diameter clamp "F09 can be manipulated with one hand. Ideal for U1000RO2V-1X1852 H07RNF-1x702 or 20mmx5mm bars, she is a professional measurement tool (600V Cat.III). Fully automatic, TRMS AC + DC, the F09 will be the ally of all your actions ..

  • clamping: ø26mm
  • AC + DC current: 0.20 to 40/400A (600A peak)
  • AC + DC voltage: 0.20 to 40/400/600V (900V peak)
  • phase rotation (2 son)
  • inrush current: inrush currents
  • power (single and three phase): 5 W to 240 kW from 5 to 240 kvar; 5 to 240 kVA
  • 2% power factor
  • Frequency Hz
  • Auto AC / DC - Hold
  • DC Auto Zero
  • Resistance: 0.2 to 40kΩ
  • continuity / buzzer
  • diode test
  • min / max / peak
  • automatic lead compensation
  • backlight
  • buzzer overrange
  • level of battery life
  • automatic shutdown
  • Safety EN 61010-1 and EN 61010-2-032 600V - cat.II
  • dangerous voltage signal
  • Dimensions: 70x193x37mm - weight: 260g
