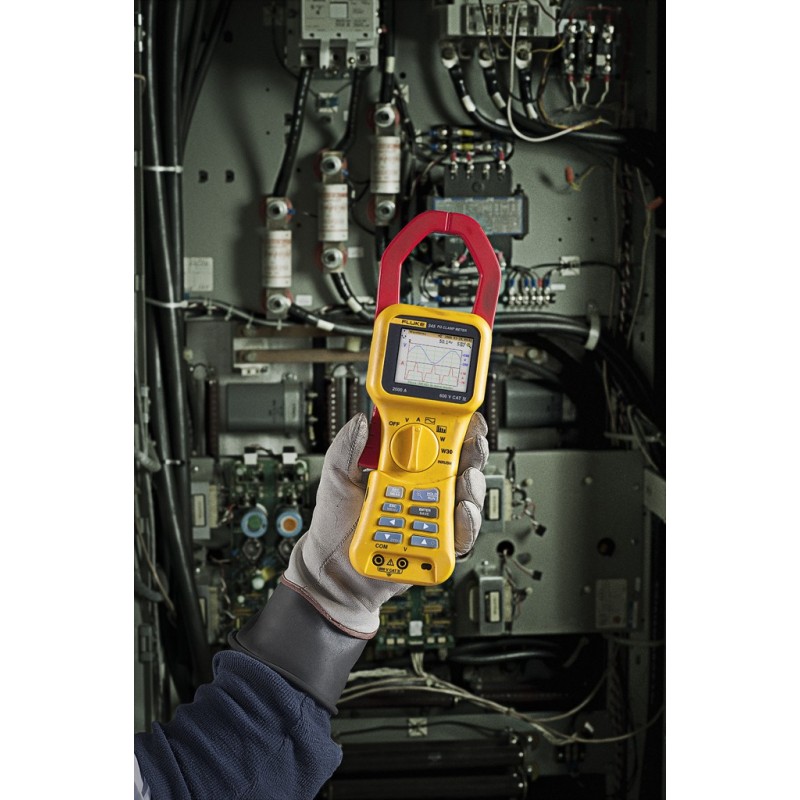

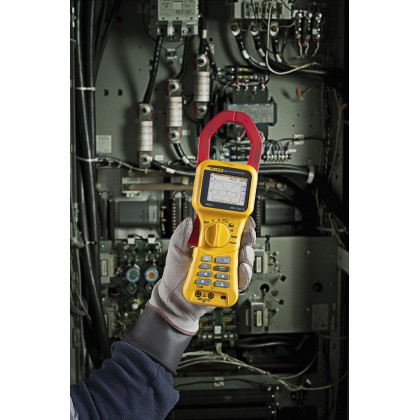

With its bright color display to analyze the harmonic spectrum, its low-pass filter removing high frequency noise and its high EMC immunity design, the Fluke 345 power analyzer is ideal for troubleshooting disturbances quality of electric power on switching loads. In addition, this model clamp meter Hall effect to measure the dc current possible without having to interrupt the circuit with the power. The internal memory of the Analyzer allows a recording of the quality of long-term power to analyze trends or intermittent problems.

Applications

  • Setup and troubleshoot variable frequency drives and UPS systems: verification of proper operation by measuring key parameters of power quality
  • Harmonic Measurement: update harmonic issues that can disrupt or damage the equipment
  • Capture the current startup: Check starting current when resets or nuisance circuit breaker tripping occurs
  • Load studies: testing the ability of an electrical system before adding loads




  • AC / DC: Measurement of AC current clamp effective to 1400 A rms and dc current up to 2000 A without breaking the circuit
  • High security: power meter 600 V CAT IV certified for use on electrical installations
  • Specific environments "noisy": the multi clampmeter is very efficient for wave measurements with high distortion present on the electronic loads with low-pass filter
  • Registration data: to identify intermittent faults by recording the energy parameters for several minutes or even a month, including harmonics
  • Battery check: direct measurement of dc ripple (%) for batteries and DC systems
  • Troubleshoot harmonics: harmonic analysis and recording of digital or graphic form

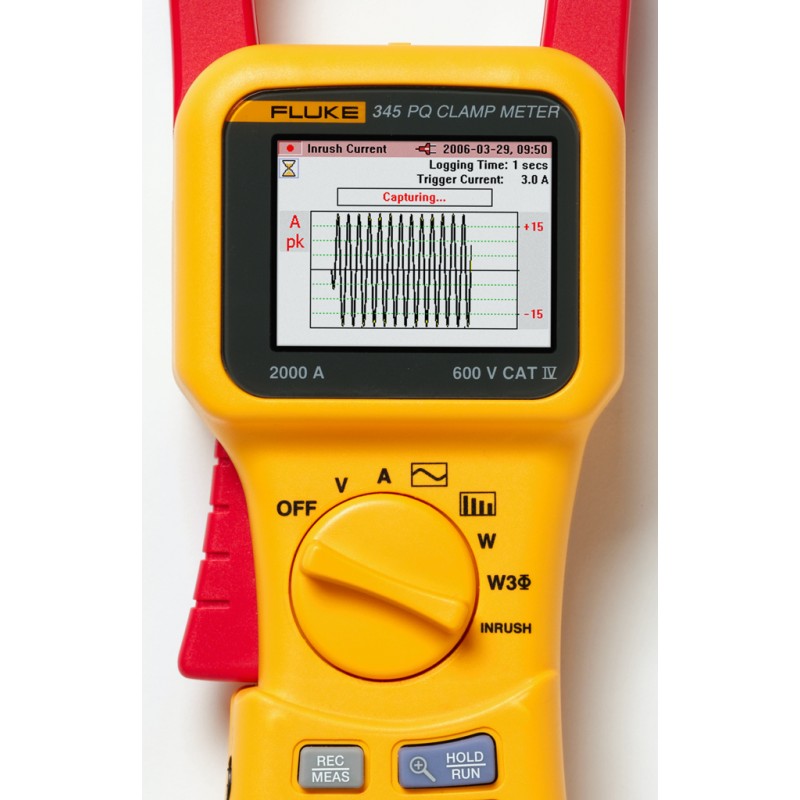

  • Inrush current: Capture and analyze nuisance tripping of 3 to 300 seconds
  • Ease of use: easy confirmation of the configuration of the device with a large color display with backlight waveforms and trends
  • Current phase: integrated feature for balanced loads
  • View graphs and generate reports: Using the Analyzer with Integrated Power Log software
Display
Color transmissive LCD 320 x 240 pixels (70 mm diagonal) backlit 2-level
Food
6 x 1.5 V alkaline AA MN 1500 or IEC LR6
Battery life (in general)
> 10 hours (backlight level)
> 12 hours (backlight reduced)
Adapter BE345
Entry110/230 V, 50/60 Hz
Output15 V DC, 300 mA
Ambient conditions (only for indoor use)
Terms of Reference
All details set at 23 ° C ± 1 ° C.
Operating Temperature
0 ° C to 50 ° C
Current temperature coefficient
≤ ± 0.15% my. per ° C
Temperature coefficient of voltage
≤ ± 0.15% my. per ° C
Maximum relative humidity
80% for temperatures up to 31 ° C decreasing linearly to 50% relative humidity at 40 ° C
Maximum operating altitude
2000 m
Electrical Safety
Safety standard EN 61010-1 600 V CAT IV double or reinforced insulation, pollution degree 2
Protection: IP40, EN60529
Maximum safe operating voltages
Current measurement600 V AC or DC between the effective bare conductor and earth
Voltage measurement600 V AC or DC between the effective input connection and ground, or 825 V between phase voltages fed (triangle configuration)
Electromagnetic compatibility (EMC)
Emissions
IEC / EN 61326-1:1997 Class A
Immunity
IEC / EN 61326-1:1997 Annex C Performance Criterion B
Mechanical characteristics
Dimensions (length x width x depth)
300 mm x 98 mm x 52 mm
Weight (with battery)
820 g
Jaw opening
60 mm
Ability of the jaw
58 mm diameter
Cleaning
The device can be cleaned with a cloth dampened with isopropyl alcohol. Do not use abrasives or solvents.
Electrical Characteristics
Current measurement (DC, DC efficient AC rms)
Measuring range
0-2 000 A DC or AC 1400 effective
Autoranging Autorange
40 A / 400 A / 2000 A
Resolution
10 mA in the range 40 A
100 mA in the range 400 A
1 A in the range 2000 A
Accuracy: DC and DC effective
I> 10 A:My ± 1.5%. ± 5 digits
I <10 a:="" td="">± 0.2 A
Accuracy: MOY
I> 10 A:± 3% of my. ± 5 digits
I <10 a:="" td="">± 0.5 A
Accuracy: CR
I> 10 A:± 5% my. ± 5 digits
I <10 a:="" td="">± 0.5 A
Accuracy: Ah
I> 10 A:My ± 2%. ± 5 digits
I <10 a:="" td="">± 0.5 Ah
Accuracy: CF (Crest Factor)
1.1 ≤ CF <3± 3% of my. ± 5 digits
3 ≤ CF <5:± 5% my. ± 5 digits
Resolution:0,01
Accuracy: RPL (Ripple)
2% ≤ RPL <100%:± 3% of my. ± 5 digits
100% ≤ RPL <600%:± 5% my. ± 5 digits
Resolution:0.1%
Idc> 5 A, Iac> 2 A
Voltage measurement (DC, DC efficient AC rms)
Measuring range
0 to 825 V dc or ac rms
Autoranging Autorange
4 V / 40 V / 400 V / 750 V
Resolution
1 mV in 4 V range
10 mV in the range 40 V
100 mV in the range 400 V
1 V in 750 V range
Accuracy: DC and DC effective
V> 1 V:± 1% my. ± 5 digits
V <1 v:="" td="">± 0.02 V
Accuracy: MOY
V> 1 V:± 3% of my. ± 5 digits
V <1 v:="" td="">± 0.03 V
Accuracy: CR
V> 1 V:± 5% my. ± 5 digits
V <1 v:="" td="">± 0.03 V
Accuracy: CF (Crest Factor)
1.1 ≤ CF <3± 3% of my. ± 5 digits
3 ≤ CF <5:± 5% my. ± 5 digits
Resolution:0,01
Accuracy: RPL (Ripple)
2% ≤ RPL <100%:± 3% of my. ± 5 digits
100% ≤ RPL <600%:± 5% my. ± 5 digits
Resolution:0.1%
VDC> 0.5V, V AC> 0.2 V
All measurements dc and 15 Hz to 1 kHz
Maximum surcharge of 1000 Vrms
The rms voltage is a measure of true-rms (AC + DC)
Harmonics
Total harmonic distortion (THD)
≤ 1% THD <100%:± 3% of my. ± 5 digits
100% ≤ RPL <600%:± 5% my. ± 5 digits
Resolution:0.1%
DF (THD)
≤ 1% THD <100%:± 3% of my. ± 5 digits
Resolution:0.1%
≤ Vharm H02± 5% my. ± 2 digits
≤ Vharm H13± 10% Meas. ± 2 digits
All measures up to the 30th harmonic (40th harmonic of 15 Hz to 22 Hz)
Range of fundamental frequencies F 0 15 Hz to 22 Hz and 45 Hz to 65 Hz
VACrms> 1 V
Wattage (single and three phase) (DC, DC, effective, efficient AC)
Measuring range
0-1 DC 650 kilowatts or 1 200 kW AC
Autoranging Autorange
4 kilowatts, 40 kW, 400 kW, 1 650 kilowatts
Resolution
1 W at 4 kW
10 W to 40 kilowatts
100 W to 400 kilowatts
1 kilowatt to 1 200 kW
Accuracy
My ± 2.5%. ± 5 digits
W1Ø <2 kw="" 0="" 08="" kilowatts="" td="">
W3Ø <4 kw="" 0="" 25="" kilowatts="" td="">
VA measurement (single and three phase) (DC, DC, effective, efficient AC)
Measuring range
0 to 1 650 kVA 1200 kVA DC or AC
Autoranging Autorange
4 kVA, 40 kVA, 400 kVA, 1650 kVA
Resolution
1 VA for 4 kVA
10 VA to 40 kVA
100 VA to 400 kVA
1 kVA to 1200 kVA
Accuracy
VA> 2 kVA:My ± 2.5%. ± 5 digits
VA <2 kva:="" td="">Kvam ± 0.08
VAR measurement (single and three phase)
Measuring range
0 to 1 250 kVAR
Autoranging Autorange
4 kVAR, 40 kVAR, 400 kVAR, kVAR 1200
Resolution
1 VAR for 4 kVAR
10 VAR for 40 kVAR
VAR 100 for 400 kVAR
1 kVAR to 1200 kVAR
Accuracy
VAR> 4 kVAR:My ± 2.5%. ± 5 digits
VAR <4 kvar:="" td="">± 0.25 kVAR
Range of power factor
0.3
Power factor (single and three phase)
Measuring range
Capacitive load of 0.3 and 1.0 to 0.3 inductive (capacitive load of 72.5 ° and 0 ° inductive to 72.5 °)
Resolution
0,001
Accuracy
± 3 °
Frequency Range
15 Hz to 1 kHz
Displacement power factor (single and three phase)
Measuring range
Capacitive load of 0.3 and 1.0 to 0.3 inductive (capacitive load of 72.5 ° and 0 ° inductive to 72.5 °)
Resolution
0,001
Accuracy
± 3
Frequency Range
15 Hz to 22 Hz and 45 Hz to 65 Hz
Kilowatt hour (kWh)
Measuring range
40 000 kWh
Autoranging Autorange
4 kWh, 40 kWh, 400 kWh, 4000 kWh, 40,000 kWh
Resolution
1 Whin the range of 4 kWh
10 Wh in the range of 40 kWh
100 Wh in the range of 400 kWh
1 kWh in the range of 4000 kWh
10 kWh in the range of 40 000 kWh
Accuracy
kWh> 2 kWh:± 3% of my. ± 5 digits
kWh <2 kwh:="" td="">± 0.08 kWh
All the powers in Watts / VA / VAR / PF
Frequency Range:DC and 15 Hz to 1 kHz
Current Range:10 A to 1400 A rms
Voltage Range:1 V to 825 Vrms
Maximum input voltage:825 Vrms / 1 400 A rms
Maximum overload:1 000 000 A Vrms/10All measurements dc and 15 Hz to 1 kHz. Maximum surcharge of 10 000 A or RMS x frequency <400,000
Frequency measurement (from current sources or voltage)
Measuring range
15 Hz to 1 kHz
Resolution
0.1 Hz
Accuracy
15 to 22 Hz ± 0.5% Meas.
40 Hz to 70 Hz ± 0.5% Meas.
15 Hz to 1000 Hz ± 1% my.
Current Range
10 A to 1400 A rms
Voltage Range
1 V to 825 Vrms
Oscilloscope function
Current measurement
Ranges:10 A / 20 A / 40 A / 100 A / 200 A / 400 A / 1000 A / 2000 A
Resolution:1 A to 40 A
10 A to 400 A
50 A to 2000 A
Accuracy:± 3% of my. ± 1 pixel
Maximum overload:10000 A
Voltage measurement
Ranges:4 V / 10 V / 20 V / 40 V / 100 V / 200 V / 400 V / 1000 V
Resolution:100 mV to 4 V
1 V to 40 V
10 V to 400 V
31.25 V to 1000 V
Accuracy:My ± 2%. ± 1 pixel
Maximum overload:1000 Vrms
Frequency Range:DC and 15 Hz to 600 Hz
Timebase
2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms / div
Refresh Rate
0.5 seconds
Maximum sampling rate
15.625 kHz
Measurement function of inrush currents
Ranges
40 A, 400 A and 2000 A
Resolution
10 mA in the range 40 A
100 mA in the range 400 A
1 A in the range 2000 A
Accuracy
I> 10 A:± 5% my. ± 1 pixel
I <10 a:="" td="">± 0.5 A
All measurements dc and 15 Hz to 1 kHz
Maximum overload
Maximum surcharge of 10 000 A or RMS x frequency <400,000
The true rms current is a measure of TRMS TRMS (AC + DC)
Capture time
1 s, 3 s, 10 s, 30 s, 100 s and 300 s
Maximum sampling rate
15.625 kHz
Interface
USB interface to PC
Power Log software to download, analysis and reporting
Utility upgrade for the Fluke 345 to install a new version of firmware
Recording memory
Recording areas
Three zones can be used individually or combined into a single large area
Average-
1 sec, 2 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min and custom
ModelOrdering InformationCurrent prices

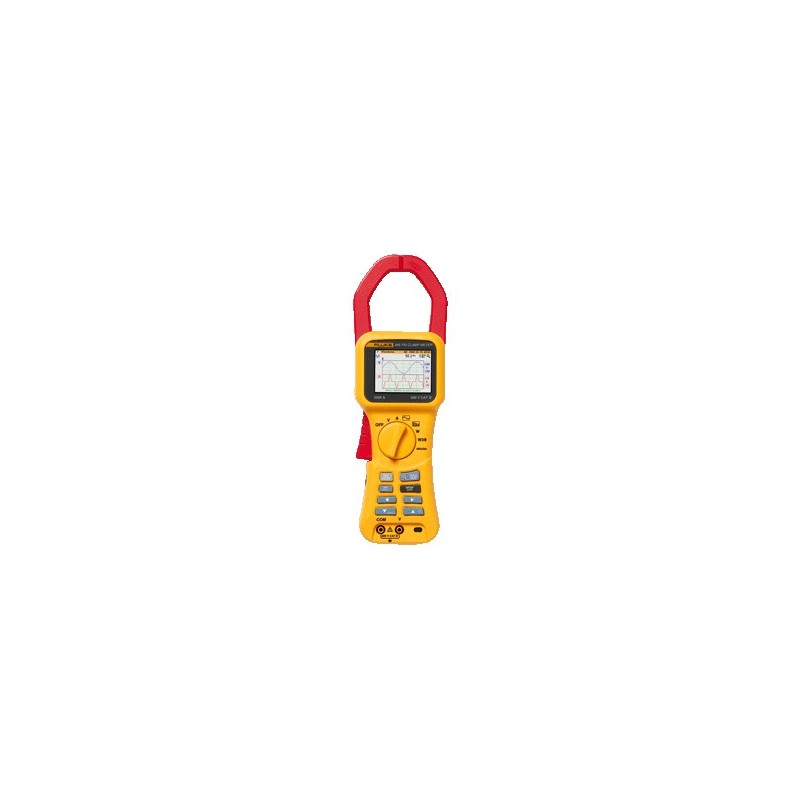

Fluke 345Power Quality Clamp Meter

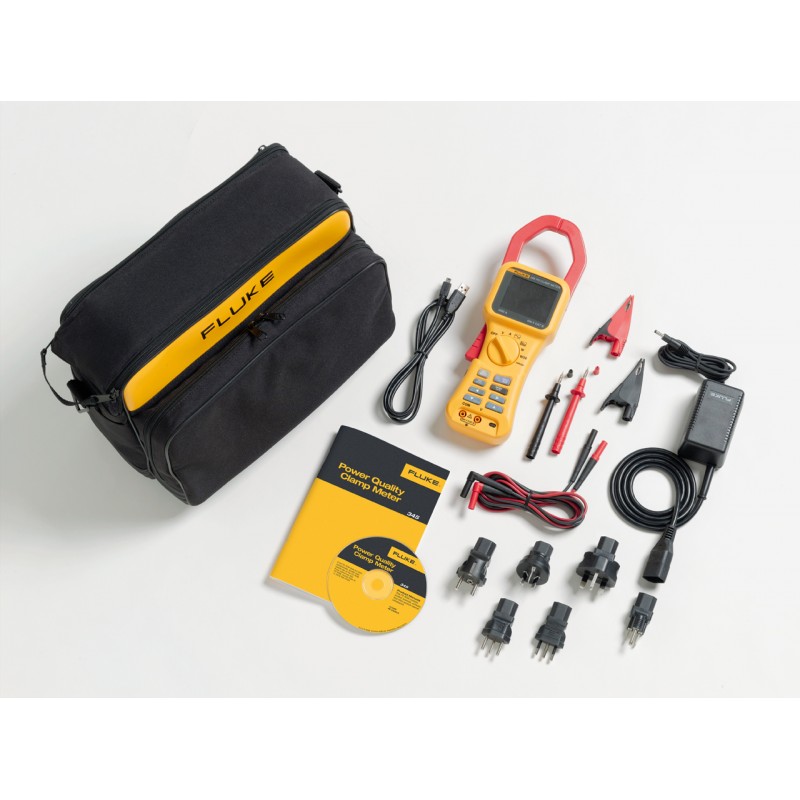

Includes:
  • 345 Power Quality Clamp Meter
  • Carrying Case
  • Power Log software
  • Test Leads
  • Alligator clips
  • Test Probes
  • USB cable
  • International AC adapter / battery exclusion device
  • English user manual printed
  • Multilingual manualsCD
€ 1,327

Test leads, test probes and clips for electronic circuitsCurrent prices
top_pick_order_icon_30px_x_20.gifAC220
Probe Set to SureGrip ™ Alligator Clip€ 36
top_pick_order_icon_30px_x_20.gifTLK291
Fused test probe set€ 47
top_pick_order_icon_30px_x_20.gifTP1
Spikes Slim Reach (Flat Head)€ 12
top_pick_order_icon_30px_x_20.gifTP220
SureGrip ™ Industrial Test Probes€ 11

Bags, boxes, cases and casesCurrent prices
top_pick_order_icon_30px_x_20.gifC345
Carrying Case C345€ 63
top_pick_order_icon_30px_x_20.gifC550
Tool bag€ 105

LampsCurrent prices
top_pick_order_icon_30px_x_20.gifL200
L200 Probe Light€ 19
top_pick_order_icon_30px_x_20.gifL210
Lighting + extension probe€ 32



Display
Color transmissive LCD 320 x 240 pixels (70 mm diagonal) backlit 2-level
Food
6 x 1.5 V alkaline AA MN 1500 or IEC LR6
Battery life (in general)
> 10 hours (backlight level)
> 12 hours (backlight reduced)
Adapter BE345
Entry110/230 V, 50/60 Hz
Output15 V DC, 300 mA
Ambient conditions (only for indoor use)
Terms of Reference
All details set at 23 ° C ± 1 ° C.
Operating Temperature
0 ° C to 50 ° C
Current temperature coefficient
≤ ± 0.15% my. per ° C
Temperature coefficient of voltage
≤ ± 0.15% my. per ° C
Maximum relative humidity
80% for temperatures up to 31 ° C decreasing linearly to 50% relative humidity at 40 ° C
Maximum operating altitude
2000 m
Electrical Safety
Safety standard EN 61010-1 600 V CAT IV double or reinforced insulation, pollution degree 2
Protection: IP40, EN60529
Maximum safe operating voltages
Current measurement600 V AC or DC between the effective bare conductor and earth
Voltage measurement600 V AC or DC between the effective input connection and ground, or 825 V between phase voltages fed (triangle configuration)
Electromagnetic compatibility (EMC)
Emissions
IEC / EN 61326-1:1997 Class A
Immunity
IEC / EN 61326-1:1997 Annex C Performance Criterion B
Mechanical characteristics
Dimensions (length x width x depth)
300 mm x 98 mm x 52 mm
Weight (with battery)

Avis

Soyez le premier à donner votre avis !

12 other products in the same category:
