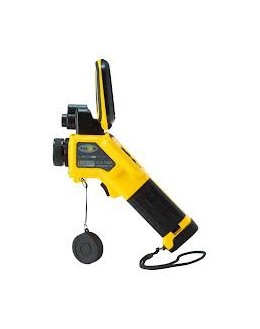

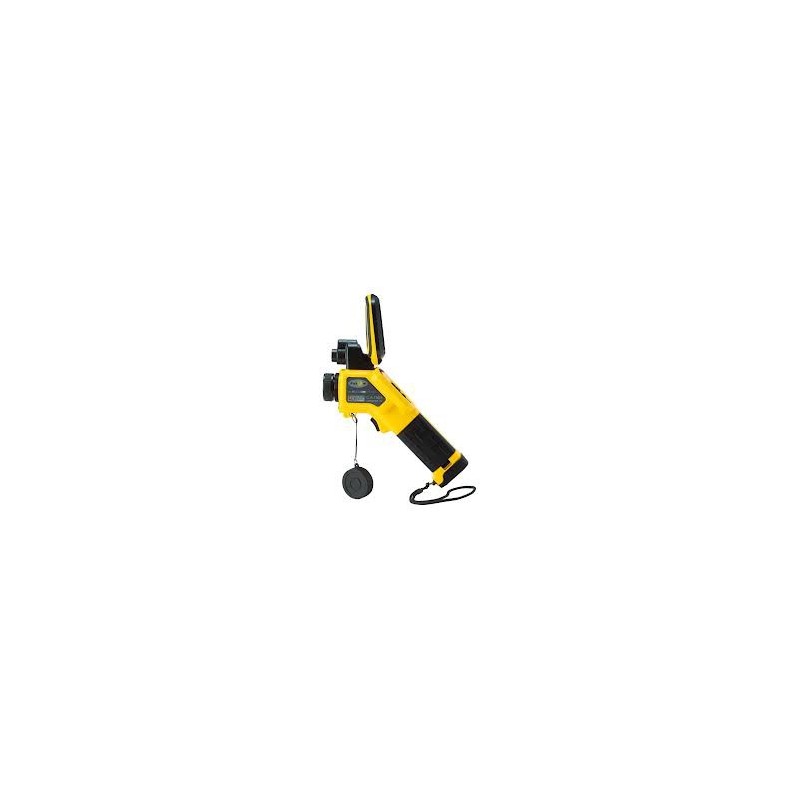

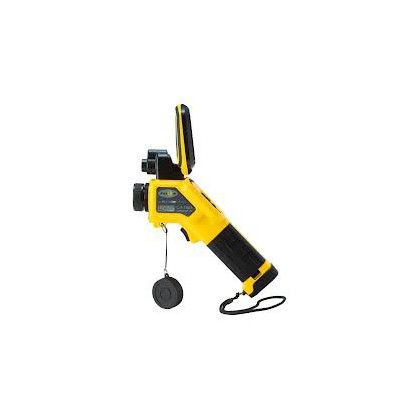

CA1888 - infrared camera - Chauvin Arnoux

CA1888 - infrared camera - Chauvin ArnouxCA1888 - infrared camera - Chauvin ArnouxCA1888 - infrared camera - Chauvin Arnoux

CA1888 - infrared camera - Chauvin ArnouxCA1888 - infrared camera - Chauvin ArnouxCA1888 - infrared camera - Chauvin Arnoux

More details



P01651272


Comment faire une demande de devis : Ajouter au devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire
MIXVISION, THE REAL MIXER WITH INFRARED vide.gif
High resolution detector

RayCAm the camera is perfectly suited to the needs of service & preventive maintenance
predictive power, electronics and
mechanical (industrial and service sectors) and for the inspection of buildings or education and engineering.

The new 3.5 inch display provides excellent readability and ownership of RayCAm is still as simple and enjoyable.
The CA 1888 is suitable for all measures with a temperature range up to 600 ° C.

Performance-wise, it offers many possibilities:
• Analysis and real accurate, allowing
appropriate corrections due to the environment
· 1000 radiometric images recordable on
MiniSD Card
Voice memo · possible through the systemI
Bluetooth (optional)
• The software provided allows RayCAm Report
analysis of measures and the creation of
reports.

Specifications:
Thermal · Sensitivity: 0.08 ° C
· Detector: 384x288
• Frequency: 50 Hz
Space • Resolution: 1.3 mrad
Spectral · Frequency: 7.5 to 14 mm
Temperature: -20 ° C to +600 ° C, and option
High temperature "
MixVision · Mode to see the IR image
Real and the overlay of IR in the real
· Functions Analyses: 1-4 slider mobile
· Screen 3.5 inch
° Sealing: IP 54
· Autonomy: 3h minimum
• Interfaces: Video output
