Simplicity, speed & efficiency

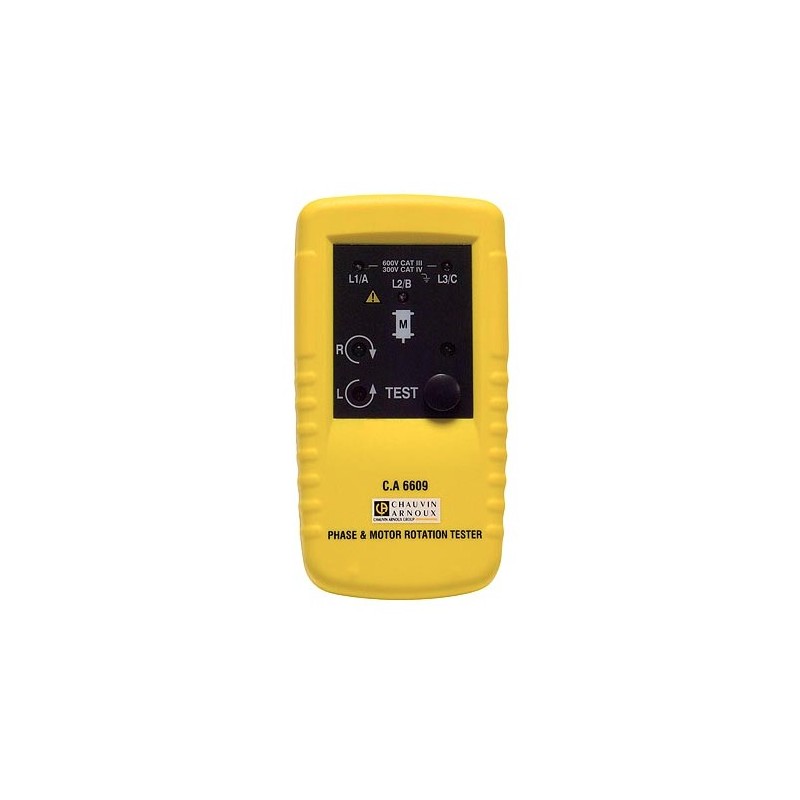

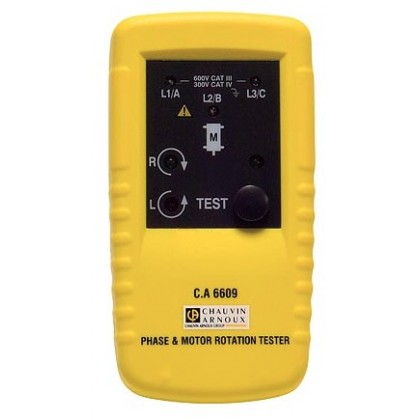

For installation services, monitoring and maintenance, Chauvin Arnoux markets the phase rotation tester CA 6609. This instrument is essential to identify the phase sequence of an electrical installation and rotation of any industrial equipment connected to this facility. The identification of phases allows a proper and safe wiring installations or motors, thereby avoiding damage to the equipment connected to the network phase.
The CA 6609 allows to quickly determine the phase sequence and to detect any breach of any of phases. In addition, it has additional functions dedicated to industrial equipment (motors, pumps, etc.):
- Indication of the direction of the rotating field without connection
- Determining the direction of connecting the son of the phases
These various controls are carried out as soon as the cables are connected to the phase sequence and the touch of a button-pusher for the test equipment industry. The results led to ignition of the LEDs are easily interpretable.
Complete and simple to use with color register terminals and cables, this unit is perfectly suited for the inspection and maintenance of industrial buildings. It comeswith all the accessories needed for different tests.
Features & Specifications:
- Automatic control of the connections are made
- Indication of the presence or absence of phase
- Determining the direction of rotation of an engine with or without contact
- Operating Voltage:
40 to 600 VAC between phases with connections 120 to 400 VAC between phases without connections
- Frequency: 15 to 400 Hz
- Electrical Safety CAT III 600 V
- Size / weight: 130x69x32mm / 130 grams
