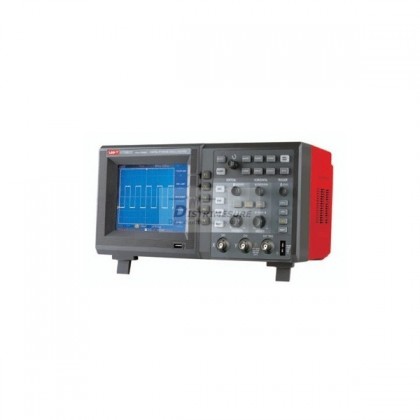

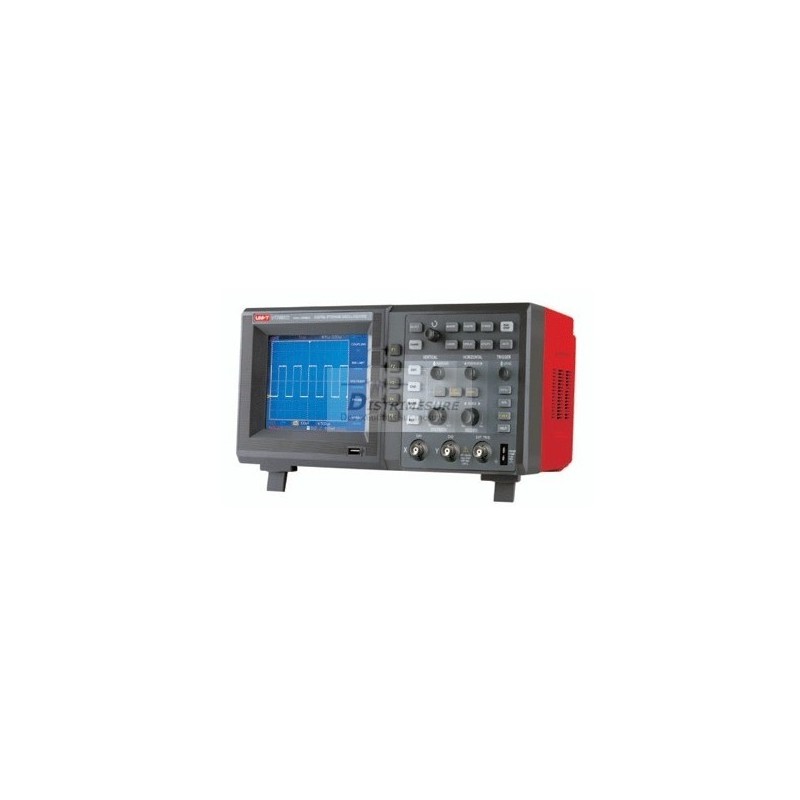

UT2102CE - oscilloscope 2x100Mhz - UNI-TREND

UT2102CE - oscilloscope 2x100Mhz - UNI-TREND

UT2102CE - oscilloscope 2x100Mhz - UNI-TRENDUT2102CE - oscilloscope 2x100Mhz - UNI-TRENDUT2102CE - oscilloscope 2x100Mhz - UNI-T

More details



UT 2102CE

Deadline 6 / 7 weeks

529,00 € tax excl.
634,80 €tax incl.


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

  • Power 100 - 240VACRMS, 45Hz - 440Hz, CAT II
  • LCD Diagonal 145mm (5.7 inches)
  • Red and gray color camera, white and gray
  • Net Weight 4kg (unpackaged)
  • Standard size 320mm (W) x 150mm (H) x 130mm (D)
  • Standard Accessories Probe x 2 (Ix, IOx) power cable, USB cable, software and manual (English)
  • Individual packaging x 1
  • Warranty 2 years

Bandwidth 100 MHz
Rise time ≤ 3.5ns
Measuring range1GS / s
2mV ~ 5V/div vertical sensitivity
Record Length (Max) 25k
Sampling rate 1GS / s real-time, 50GS / s equivalent-time
Timebase Range 5ns ~ 50 s / div
Trigger mode Front, Pulse, Video and Alternating
Automatic Waveform Measurements 28
Standard connectivity interface: USB device, USB host PASS / FAIL; Optional: LAN
Operations Addition, Subtraction, Multiplication, Division, and Inverse FFT
Applications College Education, R & D, assembly line
electronic products ...
Displaying 64k Colors LCD 320x240
