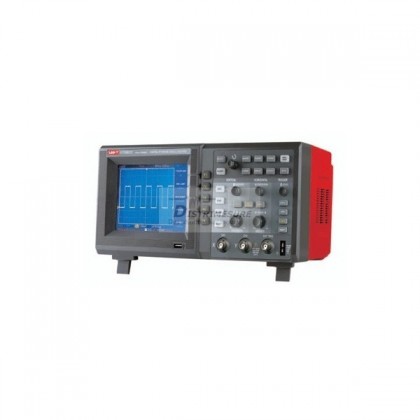

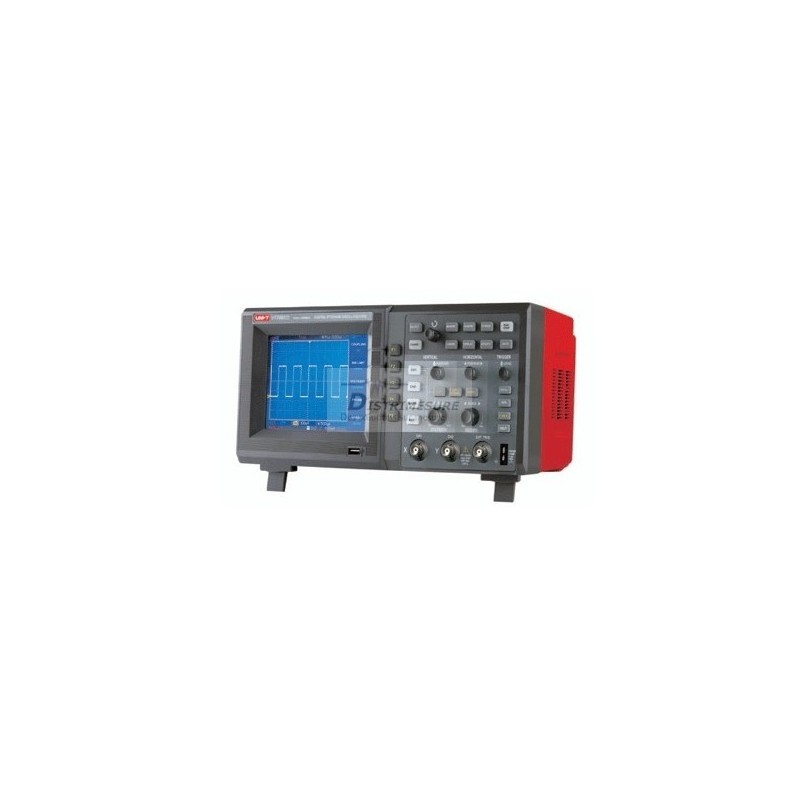

UT2062CE - oscilloscope 2x60MHz - UNI-TREND - 1GS / s

Reduced price! UT2062CE - oscilloscope 2x60Mhz - UNI-TREND

UT2062CE - oscilloscope 2x60MHz - UNI-TREND - 1GS / sUT2062CE - oscilloscope 2x60MHz - UNI-TREND - 1GS / sUT2062CE - oscilloscop

More details



Comment faire une demande de devis : Ajouter au devis

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

  • Power 100 - 240VACRMS, 45Hz - 440Hz, CAT II
  • LCD Diagonal 145mm (5.7 inches)
  • Red and gray color camera, white and gray
  • Net Weight 4kg (unpackaged)
  • Standard size 320mm (W) x 150mm (H) x 130mm (D)
  • Standard Accessories Probe x 2 (Ix, IOx) power cable, USB cable, software and manual (English)
  • Individual packaging x 1
  • Warranty 2 years


Bandwidth 60 MHz

Rise time ≤ 5.8ns

Measuring range 1GS / s

2mV ~ 5V/div vertical sensitivity

Record Length (Max) 25k

Sampling rate 1GS / s real-time, 50GS / s equivalent-time

Timebase Range 5ns ~ 50 s / div

Trigger modeFront, Pulse, Video and Alternating

Automatic Waveform Measurements 28

Standard connectivity interface: USB device, USB host PASS / FAIL; Optional: LAN

Operations Addition, Subtraction, Multiplication, Division, and Inverse FFT

Applications College Education, R & D, assembly line of electronic products ...

Displaying 64k Colors LCD 320x240
