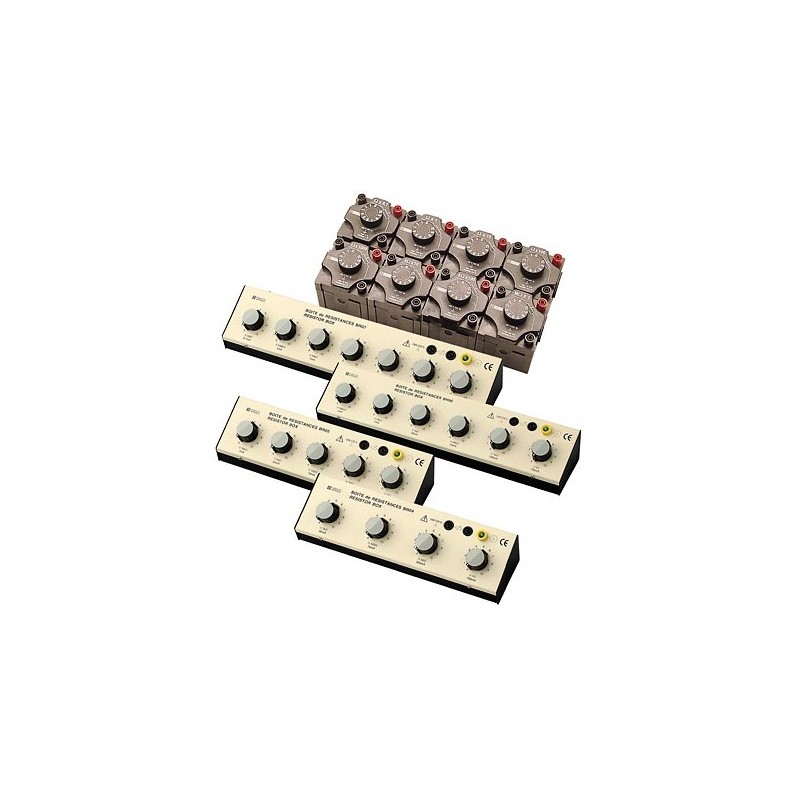

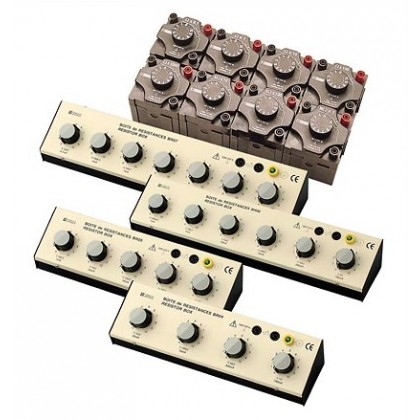

P03197527A - Decade Box 100 to 1000kOhms - CHAUVIN ARNOUX
P03197527A - box 100 to 1000kOhms decade - Chauvin ArnouxP03197527A - box 100 to 1000kOhms decade - Chauvin ArnouxP03197527A - b
P03197527A
2 to 3 weeks
Components for electrical and mechanical assemblies
• Rotary switch selectable contacts
• Stop avoiding the accidental from October to January
• Ground terminal disillusioned male
• Output terminals security ø4mm
• Typical accuracy: 0.5% (resistors), 2% (building)
• Dimensions: 72x72x90mm, weight: 160 to 350g
Supplied with 25 cm cable with rear IEC 1010
Resistance boxes | Maximum current |
0.1 to 1Ω | 1A |
1 to 10Ω | 750mA |
| 10 to 100Ω | 250mA |
| 100 to 1000Ω | 75mA |
1 to 10 k ohms | 25mA |
10 to 100kΩ | 7.5 mA |
100 to 1000kΩ | 2mA |
1 to 10MΩ | 0.2 mA |
New
Resistance boxes 4, 5, 6 and 7 decades
• resistance box in console enclosure
• Output: safety sockets Ø 4 mm
• Front and metal casing connected to earth socket security undeceived.
New BR04
Decade | Scope | Max I |
1 | 1 Ω to 10 Ω | 700 mA |
2 | 10 Ω to 100 Ω | 200 mA |
3 | 100 Ω to 1 kΩ | 70 mA |
4 | 1 kΩ to 10 kW | 20 mA |
Total Resistance: 11.11 kΩ
Accuracy: 1%
Dimensions and weight: 310 x 90 x 80 mm - 1 kg
New BR05
Decade | Scope | Max I |
1 | 1 Ω to 10 Ω | 700 mA |
2 | 10 Ω to 100 Ω | 200 mA |
3 | 100 Ω to 1 kΩ | 70 mA |
4 | 1 kΩ to 10 kW | 20 mA |
5 | 10 kW to 100 kΩ | 7 mA |
111.11 kΩ total resistance
P recision: 1%
Dimensions and weight: 310 x 90 x 80 mm - 1 kg
New BR06
Decade | Scope | Max I |
1 | 1 Ω to 10 Ω | 700 mA |
2 | 10 Ω to 100 Ω | 200 mA |
3 | 100 Ω to 1 kΩ | 70 mA |
4 | 1 kΩ to 10 kW | 20 mA |
5 | 10 kW to 100 kΩ | 7 mA |
6 | 100 kΩ to 1 MΩ | 1 mA |
Total Resistance: 1.11111 MΩ
Accuracy: 1%
Dimensions and weight: 410 x 90 x 80 mm - 1.4 kg
New BR07
Decade | Scope | Max I |
1 | 1 Ω to 10 Ω | 700 mA |
2 | 10 Ω to 100 Ω | 200 mA |
3 | 100 Ω to 1 kΩ | 70 mA |
4 | 1 kΩ to 10 kW | 20 mA |
5 | 10 kW to 100 kΩ | 7 mA |
6 | 100 kΩ to 1 MΩ | 1 mA |
7 | 1 MΩ to 10 MW | 0.1 mA |
Total Resistance: 11.11111 MΩ
Accuracy: 1%
Dimensions and weight: 410 x 90 x 80 mm - 1.4 kg
