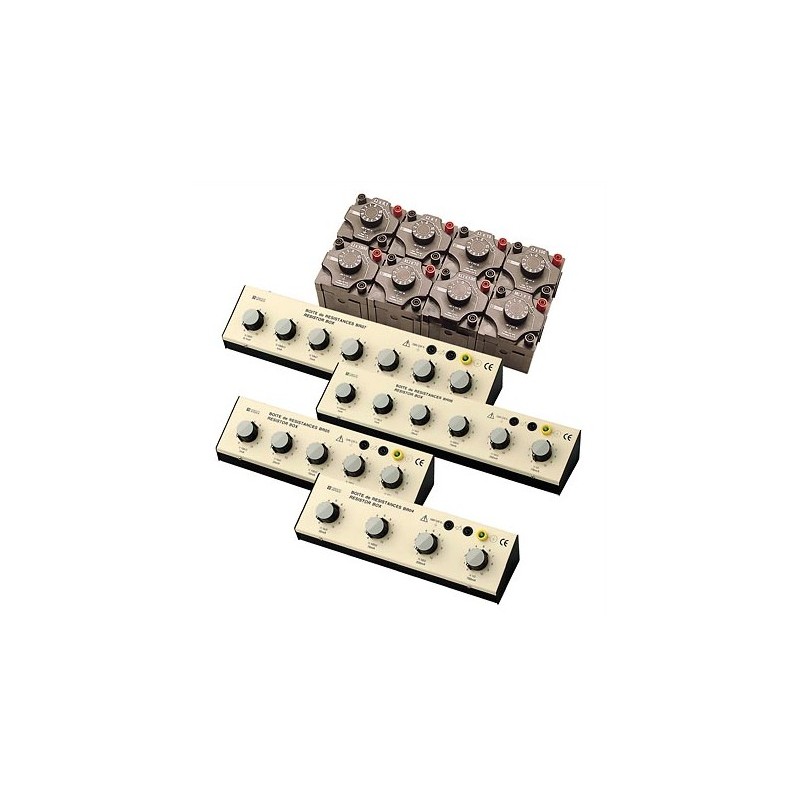

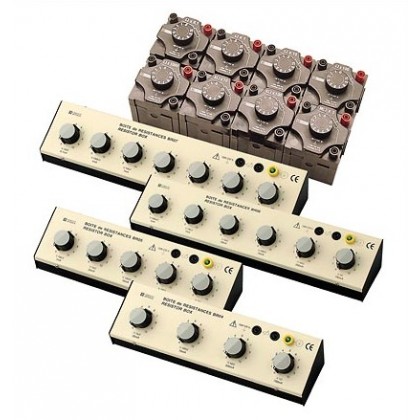

P03197524A - Box decade from 100 to 1000 Ohms - Chauvin Arnoux

P03197524A - Boîte à décade 100 à 1000 Ohms - CHAUVIN ARNOUX

P03197524A - Box decade from 100 to 1000 Ohms - Chauvin ArnouxP03197524A - Box decade from 100 to 1000 Ohms - Chauvin ArnouxP031

More details



P03197524A

2 to 3 weeks

194,00 € tax excl.
232,80 €tax incl.


Comment faire une demande de devis : Transformer mon panier en devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

Components for electrical and mechanical assemblies
• Rotary switch selectable contacts
• Stop avoiding the accidental from October to January
• Ground terminal disillusioned male
• Output terminals security ø4mm
• Typical accuracy: 0.5% (resistors), 2% (building)
• Dimensions: 72x72x90mm, weight: 160 to 350g
Supplied with 25 cm cable with rear IEC 1010

Resistance boxes

Maximum current

0.1 to 1Ω

1A

1 to 10Ω

750mA

10 to 100Ω

250mA

100 to 1000Ω

75mA

1 to 10 k ohms

25mA

10 to 100kΩ

7.5 mA

100 to 1000kΩ

2mA

1 to 10MΩ

0.2 mA

New
Resistance boxes 4, 5, 6 and 7 decades
resistance box in console enclosure
• Output: safety sockets Ø 4 mm
• Front and metal casing connected to earth socket security undeceived.

New BR04

Decade

Scope

Max I

1

1 Ω to 10 Ω

700 mA

2

10 Ω to 100 Ω

200 mA

3

100 Ω to 1 kΩ

70 mA

4

1 kΩ to 10 kW

20 mA


Total Resistance: 11.11 kΩ
Accuracy: 1%
Dimensions and weight: 310 x 90 x 80 mm - 1 kg

New BR05

Decade

Scope

Max I

1

1 Ω to 10 Ω

700 mA

2

10 Ω to 100 Ω

200 mA

3

100 Ω to 1 kΩ

70 mA

4

1 kΩ to 10 kW

20 mA

5

10 kW to 100 kΩ

7 mA

111.11 kΩ total resistance
P recision: 1%
Dimensions and weight: 310 x 90 x 80 mm - 1 kg

New BR06

Decade

Scope

Max I

1

1 Ω to 10 Ω

700 mA

2

10 Ω to 100 Ω

200 mA

3

100 Ω to 1 kΩ

70 mA

4

1 kΩ to 10 kW

20 mA

5

10 kW to 100 kΩ

7 mA

6

100 kΩ to 1 MΩ

1 mA

Total Resistance: 1.11111 MΩ
Accuracy: 1%
Dimensions and weight: 410 x 90 x 80 mm - 1.4 kg

New BR07



Decade

Scope

Max I

1

1 Ω to 10 Ω

700 mA

2

10 Ω to 100 Ω

200 mA

3

100 Ω to 1 kΩ

70 mA

4

1 kΩ to 10 kW

20 mA

5

10 kW to 100 kΩ

7 mA

6

100 kΩ to 1 MΩ

1 mA

7

1 MΩ to 10 MW

0.1 mA



Total Resistance: 11.11111 MΩ

Accuracy: 1%

Dimensions and weight: 410 x 90 x 80 mm - 1.4 kg
