|Install Multifunctional controller|

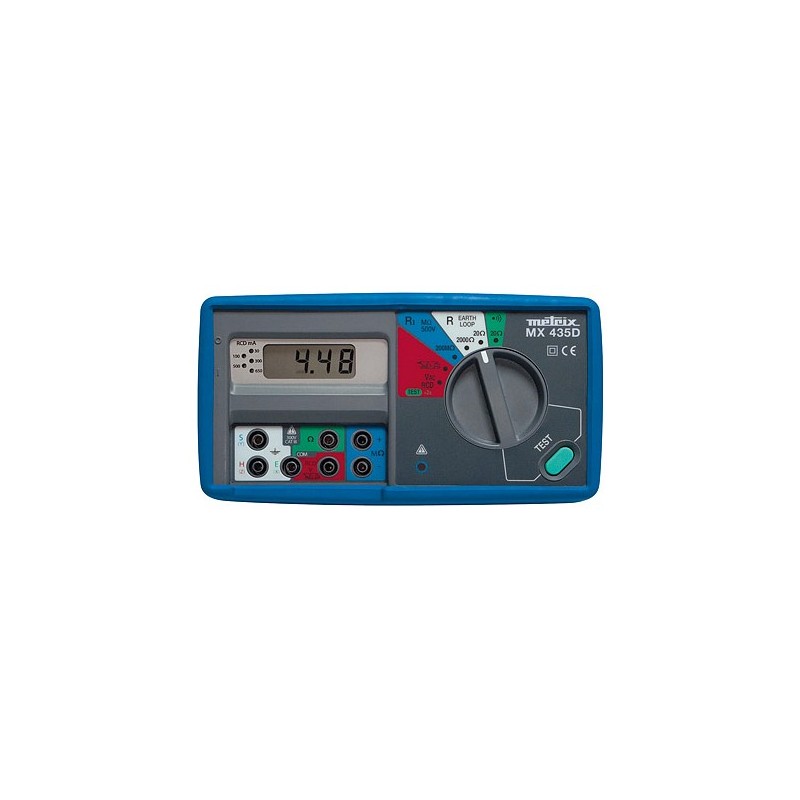

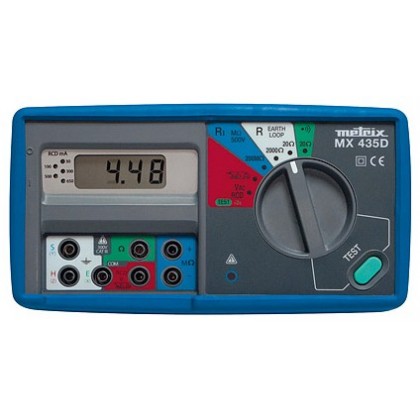

|Complete, lightweight multi-function controller MX 435D has the essential functions to check the electrical safety standards by: |
NF C 15-100, EN 61557 (1-2-4-5-6), VDE 0100, IEE 16 th, IEC 64-8, OVE IN-1, RBT MIE.
Specially designed for craftsmen, installers, regulators or maintenance, it represents an excellent price / performance.
Main technical characteristics:
-Isolation: from 0.5 to 199.9 MΩ
Continuity with beeper-: from 0.10 to 19.99 Ω
Isolation at 500-V: from 0.50 to 199.9 Ω
-Ground Resistance: from 0.10 to 1999 Ω
-Earth loop: from 0.10 to 19.99 Ω / 20 to 1999 Ω
Differential-Test: Gauges 30 mA / 100 mA /
300 mA / 500 mA / 650 mA
Fashion Pulse 1 x IAn
-Voltage: 0 to 600 VAC
-Current and leakage current (per clip). : Ranges from 2 A / 200 A
• Connection and immediate error due to the color code between the terminals and the switch
• Protection against external voltages without fuse
• Electrical safety: IEC 61010, 300 V CAT III
