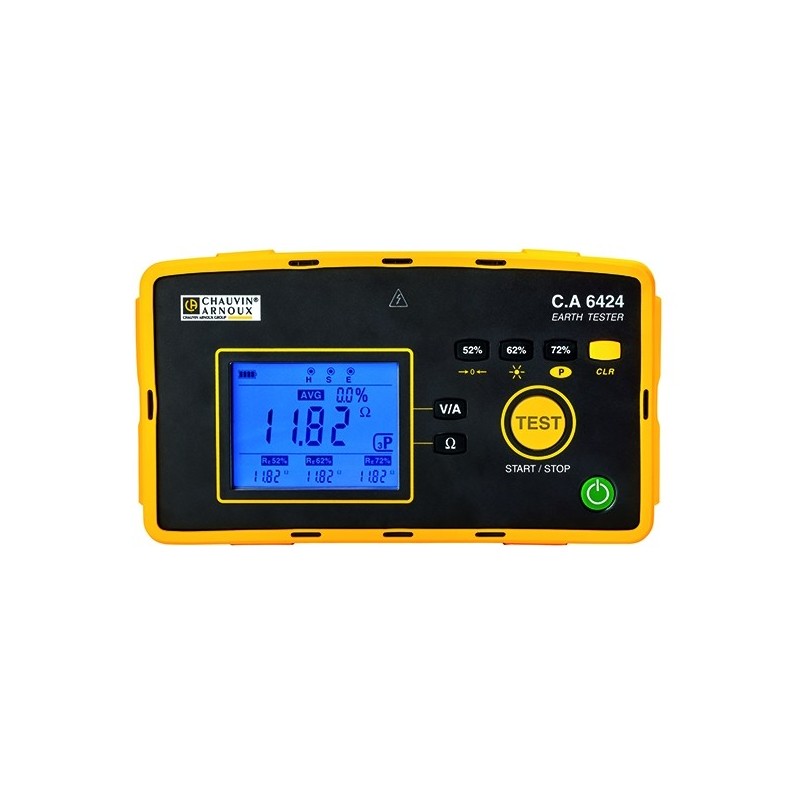

CA6424 - Earth Controller - CHAUVIN ARNOUX - without earth kit

CA6456 EURO - Contrôleur d'installation + KIT terre 3P (50m) - CHAUVIN ARNOUX

CA6456 EURO - Controller Setup + KIT land 3P (50m) - Chauvin ArnouxCA6456 EURO - Controller Setup + KIT land 3P (50m) - Chauvin

More details



P01127014

2 to 3 weeks

746,00 € tax excl.
895,20 €tax incl.


Comment faire une demande de devis : Transformer mon panier en devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire
Control of the earth ... whatever the configuration of the system!
Innovative and easy to use, the ground controller Universal CA 6456 provides user comfort and real performances for the compliance of facilities with standard NFC 15-100.

  • safe and direct connection to an electrical outlet installation
  • reliable measurements with the automatic switching between L and N if the wires are reversed at the outlet
  • automatic measurement of voltage and frequency of the installation
  • measurement of earth resistance on a plant OFF: traditional picket auxiliary (3P or 2P)
  • measurement of earth resistance on a plant LIVE: ground loop and ground 1P with choice of the measuring current (strong for better precision or low not trigger differential)
  • resistance and impedance loops LN, LL and L-PE from 0.20 to 4kΩ
  • short-circuit current up to 40kA posted by calculation (Vref / ZL-PE)
  • measuring current & leakage current clamp (optional)
  • Cat.III 600V
  • programmable alarms, memory stamped results, direct printing of measurement readings series printer and PC data transfer (transfer software provided as standard)
  • large backlit display / bag hands free
  • battery power, autonomy measures in 2000
  • Dimensions: 270x250x180mm / weight: 900g
