DIAM - Multifunction - Kimo

DIAM - Multifunction - Kimo

DIAM - Multifunction - KimoDIAM - Multifunction - KimoDIAM - Multifunction - Kimo

More details



DIAM LOG

within 3 weeks

169,00 € tax excl.
202,80 €tax incl.


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire



Anemometer

  • Propeller Ø 70 mm: 0.3 to 35 m / s
  • 100mm dia: de0, 25 to 35 m / s
  • Héllice Ø 14 mm: 0.8 to 25 m / s
  • Hot wire of 0.15 to 30 m / s

Thermometer

  • K Thermocouple: -200 to +1300 ° C
  • Thermocuple J: -100 to +750 ° C
  • Thermocouple T: -200 to +400 ° C

Manometer

  • 0 to ± 1000 mmH 2 O
  • Pitot speed: 2 to 100m / s

Hygrometer

  • from 3 to 98% RH

Comes with certificate of verification and aluminum carrying case.



Moisture Probe

Smart Plus

Relative Humidity: 3-98% RH



Temperature sensors

Smart Plus

Wide range of temperature sensors for all applications, general, penetration, contact, ambient, Flap, Velcro ...
Type: Pt 100 / Pt 1000, NTC, Thermocouple


Probe tachometry

Smart Plus

Optical tachometer sensor: 60 to 60 000 rpm
Contact adapter for optical tachometer sensor: 30 to 20 000 rpm


Vane probe

Smart Plus

Ø100mm helix: from 0.25 to 35 m / s
Propeller 70mm: 0.3 to 35 m / s
Propeller Ø14mm (straight or telescoping gooseneck): 0.825 m / s


Hot wire probe

Smart Plus

Type: Standard model handles straight or telescoping gooseneck.
Speed: 0.15 to 30 m / s
Flow: 0 to 99999 m3 / h
Temperature: -20 to +80 ° C


Multifunction probe

Smart Plus

Speed: 0.15 to 30 m / s
Humidity: 5 to 95% RH
Temperature: -20 to +80 ° C


CO Sensor (CO2) / Temperature / Humidity

Smart Plus

CO sensor / temperature
CO2 / temperature
CO2 / temperature / humidity


Pressure Module

5 scales available

Modules with two inputs pressure and thermocouple input


Temperature Module

Thermocouple

Modules with 4 thermocouple inputs



Pitot tubes type L

With temperature compensation

KIMO offers a wide range of Pitot tubes, stainless steel high quality and precision made according to the standards AFNOR NFX 10-112.





Tubes

Crystal silicon and

Clear tube Ø 5 x 8, for test instruments in a fixed position (m / l or 25 m).
Silicone tube Ø 4 x 7 Black or white, for test instruments postfixed (m / l or 25 m).


Black ball

Notebook and sensors

The black bulb thermometer, manufactured by KIMO, is intended to measure the radiant temperature.


Telescopic extension

Probe Cell

Telescopic extension at 90 ° indexing.
Lg 1m compatible with all probes equipped with a handle.



Cone debit

For hot-wire anemometers

Cone K35: 10 to 400 m³ / h - 200 x 200 x 300 mm.
Cone K75: 30 to 750 m³ / h - 300 x 300 x 470 mm.



Cone debit propeller

100mm diameter

Cone debit adaptable probes 100mm diameter propeller.
Flow: 10 to 400m 3 / h.

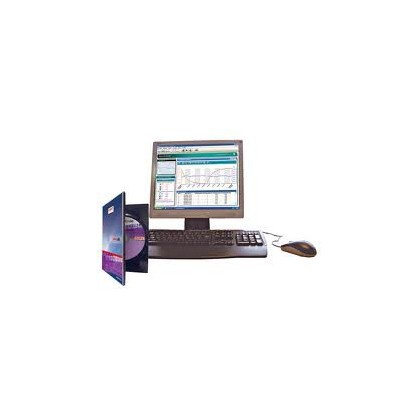

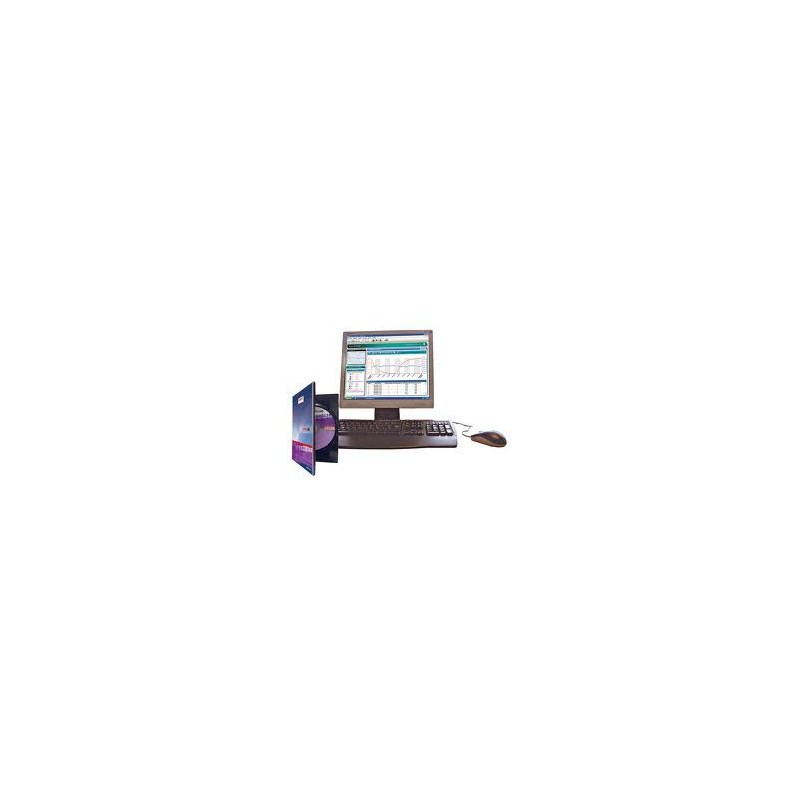

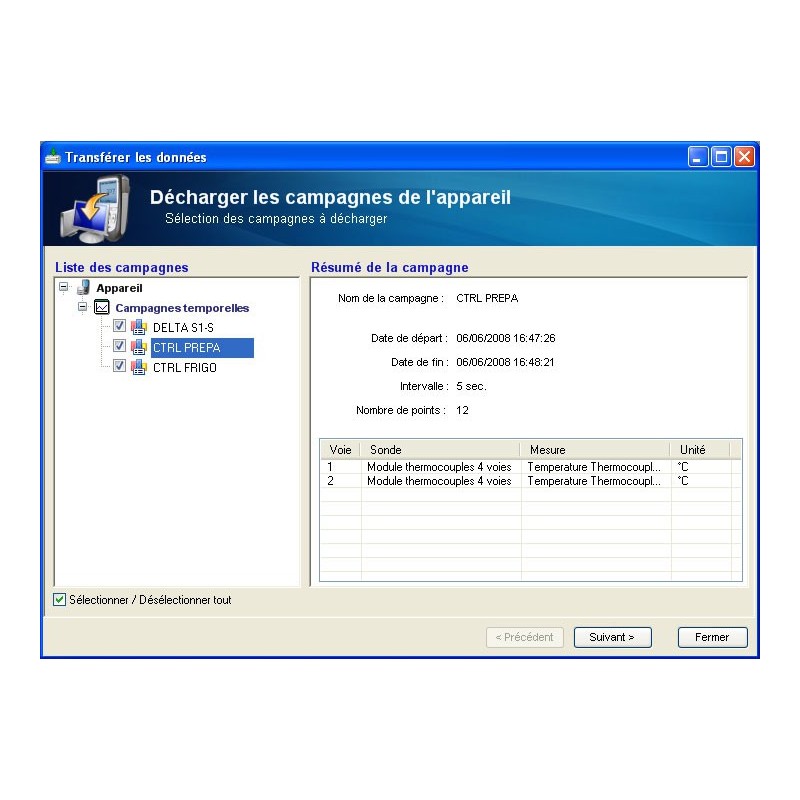

Dia-Log

Operating Software

PC software for recording and data mining.
