NEW! VERSIONS SD, LIFETIME WARRANTY!

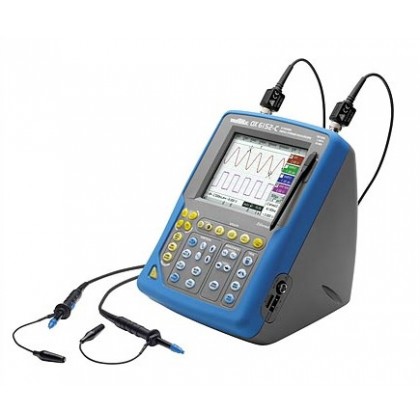

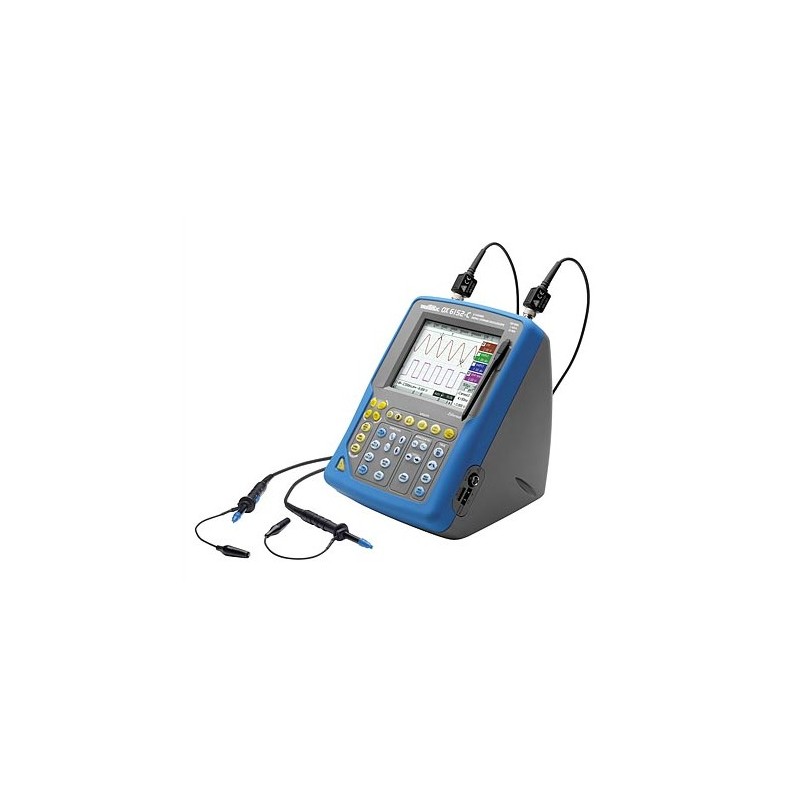

Ergonomic, compact, oscilloscope analyzer touch-screen phone
The oscilloscope OX 6062 FFT analyzer is a "Real Time". With 2 measuring channels Cat.II-300V, it displays up to 4 curves on screen.
Now, the SD versions are available. Equipped with a removable SD card, the OX6062 increase their storage capacity and storage until
2 GB! Also new SD versions are guaranteed for life *.

Ergonomic, a small footprint, storage space for cables or sensors is integrated into the device.
Front, 28 buttons are direct access and the menus Windows-like "further simplify the use of the OX 6000.

Additional features:
Display: LCD with backlight, 4 curves + 4 references.
Bandwidth: 60 MHz
Vertical resolution: 10-bit converter and 4-digit display
Wide dynamic entRanked: 2.5 mV to 100 V / div
Advanced trigger: Auto, Normal, Single, Car 50% level, CH1, CH2, EXT, LINE, Front, Pulse width, TV Frame, TV Online, hold-off
Meter: 2-Way 8000 pts + bargraph min / max recording time-stamped
Other measures: Resistance, continuity, capacity, frequency, temperature, diode test.
Communication: Ethernet LAN, Ethernet Remote, USB & RS232
Application software for PC SX-Metro "
