MX9030Z - Differential Probe 1x30Mhz autonomous 600V - METRIX

MX9030Z - Sonde différentielle 600V - METRIX

MX9030Z - Differential Probe 1x30Mhz autonomous 600V - METRIXMX9030Z - Differential Probe 1x30Mhz autonomous 600V - METRIXMX9030

More details



MX9030-Z

2 to 3 weeks

341,00 € tax excl.
409,20 €tax incl.


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire
NEW! vide.gif
The essential complement to your digital or analog oscilloscopes Class 1!

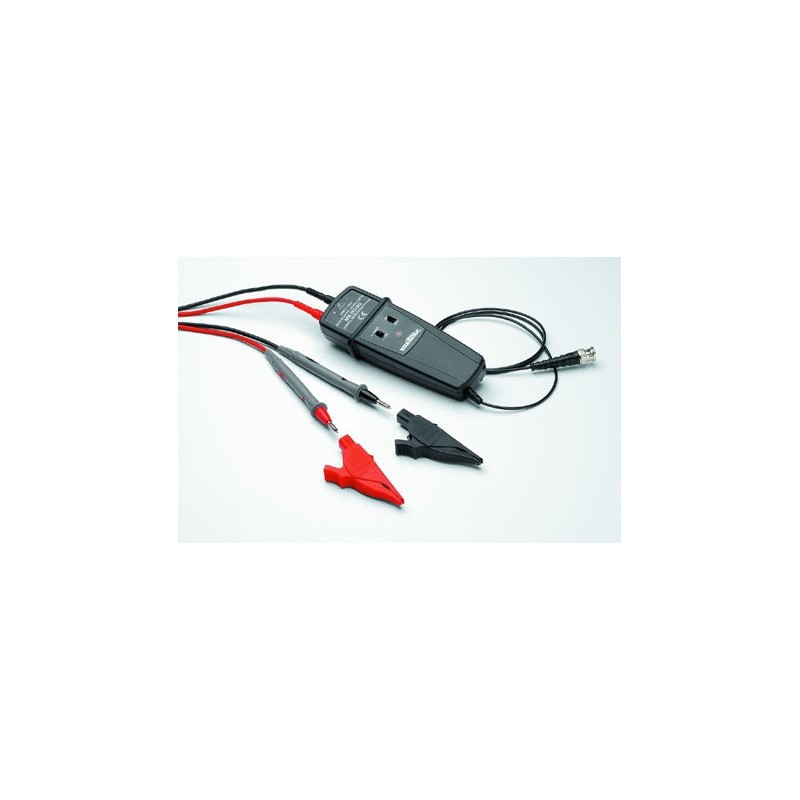

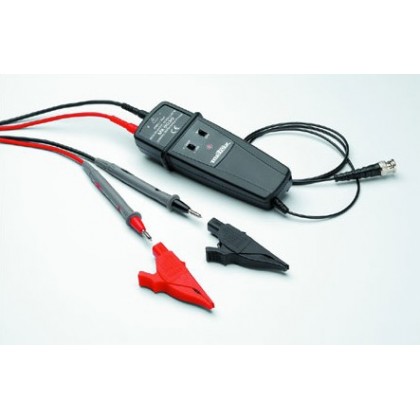

Important complement to any oscilloscope Class 1 earthed, the MX 9030 differential probe is used independently. It helps smooth and convert the differential input voltage into a low voltage available at the BNC output.
Powered by a battery, the MX 9030 works with removable banana test leads connected to the rear of the case.

Specifications:

  • Bandwidth: 30 MHz
  • Voltage ratios: 1 / 20 and 1 / 200
  • Input: 1 channel differential / removable banana leads
  • Range of input differential voltage: ± 0.1V to ± 600V
  • Input Impedance: 2MΩ - 6pF
  • Common Mode Rejection: 80dB at 50Hz, 50dB at 1MHz
  • Oscilloscope output: ± 3V loaded with 1 MΩ, BNC cable 1.10 m
  • Power / Range: 1 9V 6LF22 / 18 hours
  • Safety / EMC: IEC 61010-1, Cat.IV - 600V, according to NF EN 61326-1 EMC
  • Dimensions: 163 x 62 x 40 mm
  • Weight: 195 g with battery
