OX6202 - SD Card + digital oscilloscope 2x200Mhz Color - METRIX

Sale! OX6202 - oscilloscope numérique + Carte SD 2x200Mhz Couleur - METRIX

OX6202 - SD Card + digital oscilloscope 2x200Mhz Color - METRIXOX6202 - SD Card + digital oscilloscope 2x200Mhz Color - METRIXOX

More details



OX6202E


Comment faire une demande de devis : Ajouter au devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire
OSCILLOSCOPE touch-screen phone vide.gif
New! Available now in version SD Lifetime Warranty!

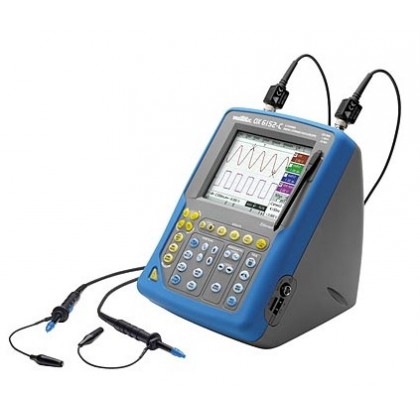

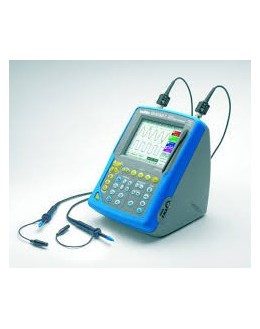

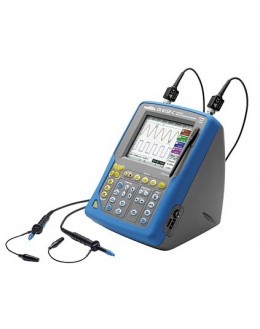

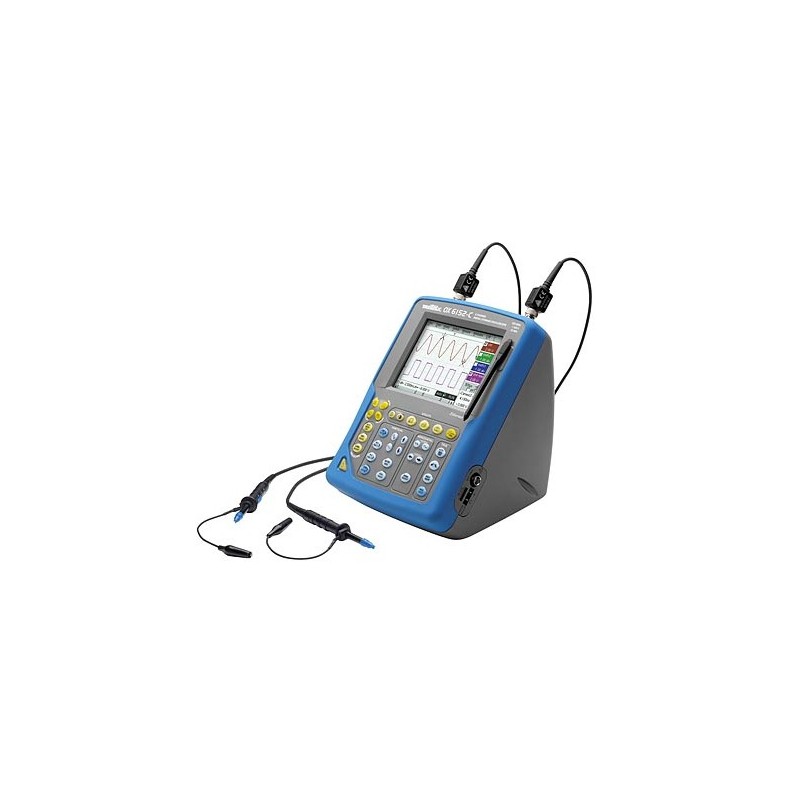

The oscilloscope OX 6202 FFT analyzer is a "Real Time". With its 2 lanes is 300 V-Cat. II, it can display up to 4 curves on screen.
Now it is also available in SD. With a removable SD card, the recording capacity and storage OX 6202 is extended to over 2 GB! In addition, the new version of SD * Lifetime Warranty!
Ergonomic and ultra-compact, it offers a hidden storage space to store cables or probes.
Front, 28 buttons are directly accessible menus and Windows-like "simplify even further the use of the OX 6202.

Additional requirements:
Display: LCD with backlight, 4 curves + 4 references.
Bandwidth: 200 MHz
Vertical resolution: 10-bit converter and 4-digit display
Wide input dynamic range: from 2.5 mV to 100 V / div
Emption: Auto, Normal, Single, Car 50% level, CH1, CH2, EXT, LINE, Front, Pulse width, TV Frame, TV Line, Hold-off
Meter: 2 channels, 8,000 pts + bargraph min / max recording time-stamped
Other measures: Resistance, continuity, capacity, frequency, temperature, diode test.
Communication: Ethernet LAN, Ethernet Remote, RS232 & USB
Application software for PC SX-Metro "
