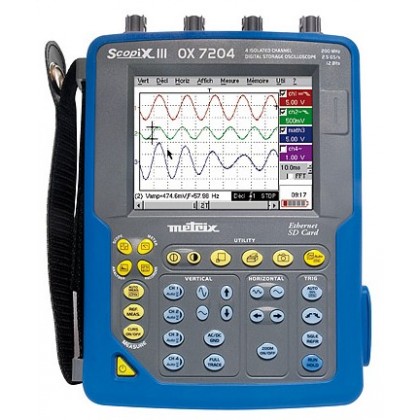

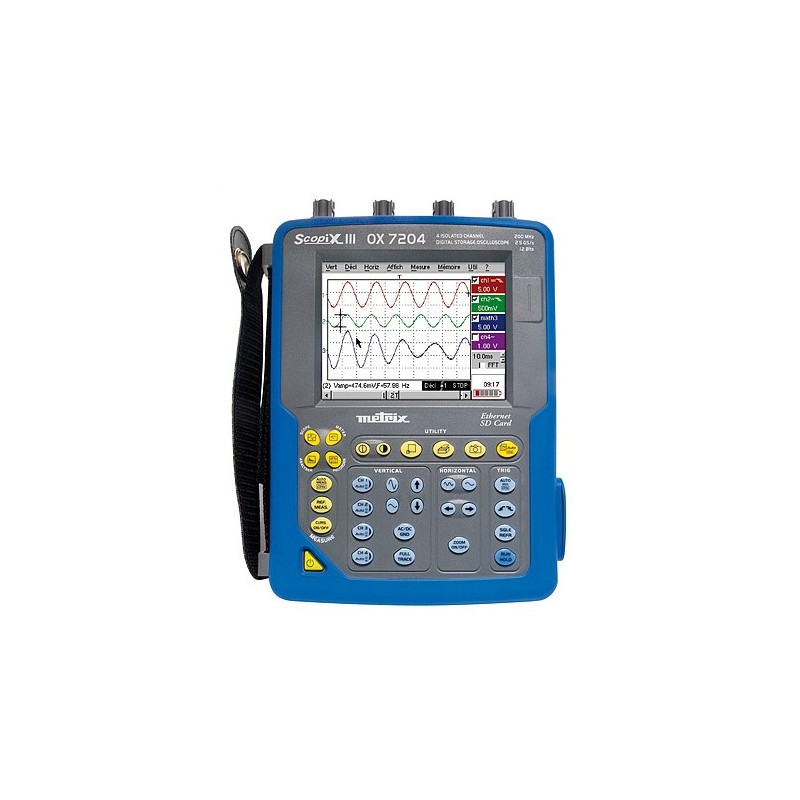

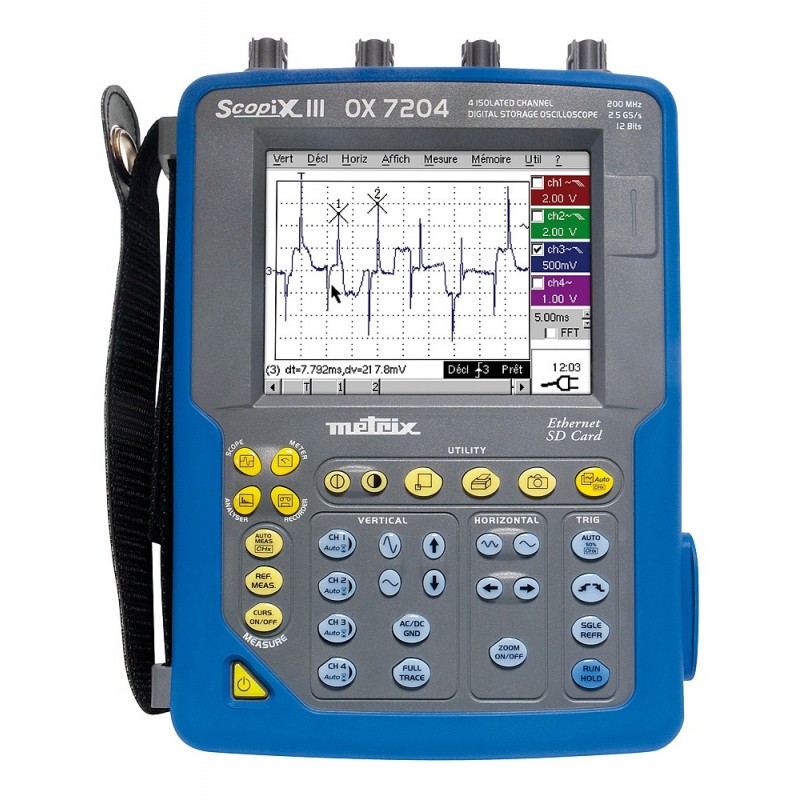

OX7204CSD - Portable Digital Oscilloscope 4x200Mhz color screen - METRIX

OX7204CSD - Oscilloscope numérique portable 4x200Mhz écran couleur - METRIX

OX7204CSD - Portable Digital Oscilloscope 4x200Mhz color screen - METRIXOX7204CSD - Portable Digital Oscilloscope 4x200Mhz color

More details



OX7204CSD


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire
4 isolated channels 600V CAT III vide.gif
BP 200 MHz, special electronic applications
The OX 7204 widens the scope with bandwidth of 200 MHz, particularly for electronic applications, laboratories, offices, electronic maintenance ...

Efficient, it benefits from the versatility of SCOPIX, 5 tools in one: Oscilloscope, Multimeter, FFT analyzer, harmonic analyzer and recorder. It has 4 input channels isolated 600 V CAT III.
Even better, he now has a bandwidth of 200 MHz and a sampling of 2.5 GS / s per channel in single shot, 100 GS / s repetitive. With a 12-bit converter, the OX 7204 offer a wide input dynamic range of 156 mV / div to 200 V / div. Mode oscilloscope and multimeter, it allows triggers and thresholds on measurement acquisition. The user can analyze the signal or the triggering event, or find a condition ons automatic measurements (depending on the level, duration ...).

The patented accessory plug and play Probix is the assurance of implementation of the instrument quickly and with no risk of errors. The coefficients, scales and units of the sensors and the channel configuration are managed automatically, the probes and adapters are recognized immediately when connected.

The Ethernet network interface with web server, used to take control of the instrument remotely from transfer curves and screen shots, without additional software.


The user server / client communication is also available FTP
