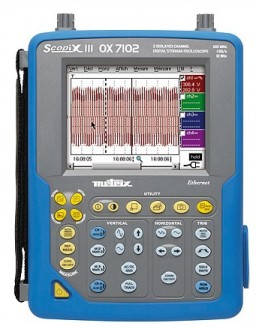

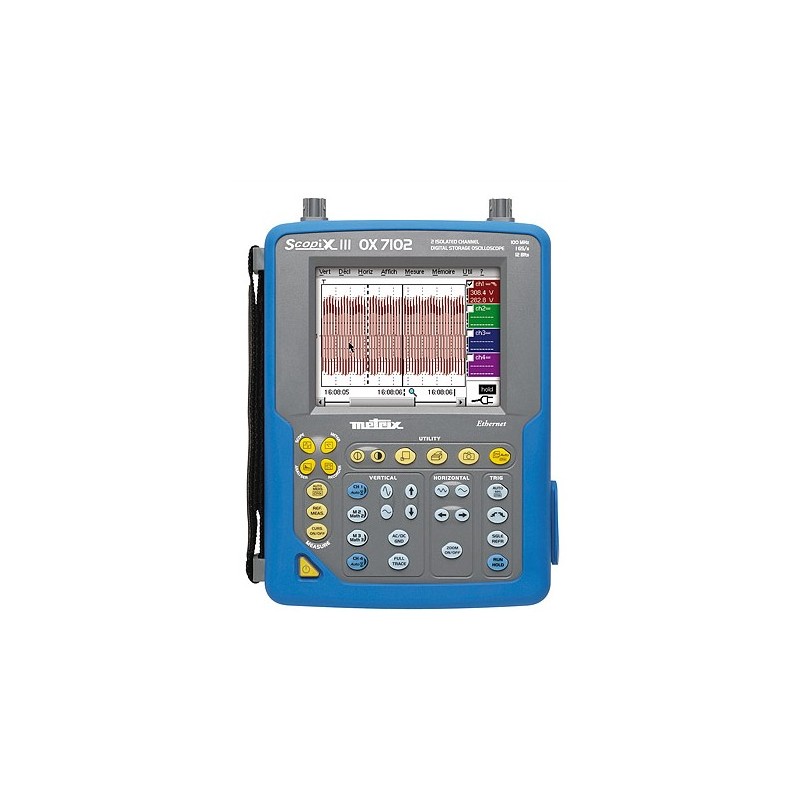

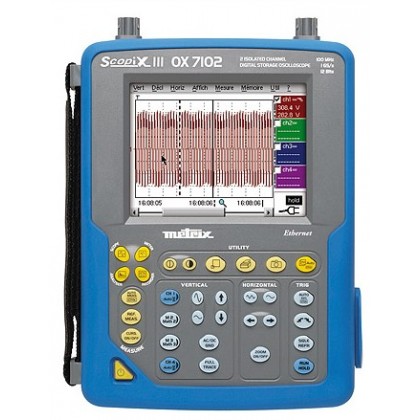

OX7202CSD - Portable Oscilloscope 2x200Mhz color display, Ethernet - METRIX

OX7202CSD - Oscilloscope portable 2x200Mhz écran couleur, ethernet - METRIX

OX7202CSD - Portable Oscilloscope 2x200Mhz color display, Ethernet - METRIXOX7202CSD - Portable Oscilloscope 2x200Mhz color disp

More details



OX7202-CSD


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire
2 WAY INSULATED 600 V CAT III vide.gif
Special electronic applications, BP 200 MHz
The OX 7202B extends the scope with bandwidth of 200 MHz, particularly for electronic applications, laboratories, offices, electronic maintenance ...

Efficient, it benefits from the versatility of SCOPIX, 5 tools in one: Oscilloscope, Multimeter, FFT analyzer, harmonic analyzer and recorder. It has 2 input channels isolated 600 V CAT III.
Even better, he now has a bandwidth of 200 MHz and a sampling of 2.5 GS / s per channel in single shot, 100 GS / s repetitive. With a 12-bit converter, the OX 7202 offers a wide input dynamic range of 156 mV / div to 200 V / div. Mode oscilloscope and multimeter, it allows triggers and thresholds on measurement acquisition. The user can analyze the signal or the triggering event, or find a condition on measuresautomatic (depending on level, duration ...).

The patented accessory plug and play Probix is the assurance of implementation of the instrument quickly and with no risk of errors. The coefficients, scales and units of the sensors and the channel configuration are managed automatically, the probes and adapters are recognized immediately when connected.

The Ethernet network interface with web server, used to take control of the instrument remotely from transfer curves and screen shots, without additional software.


The user server / client communication is also available FTP
