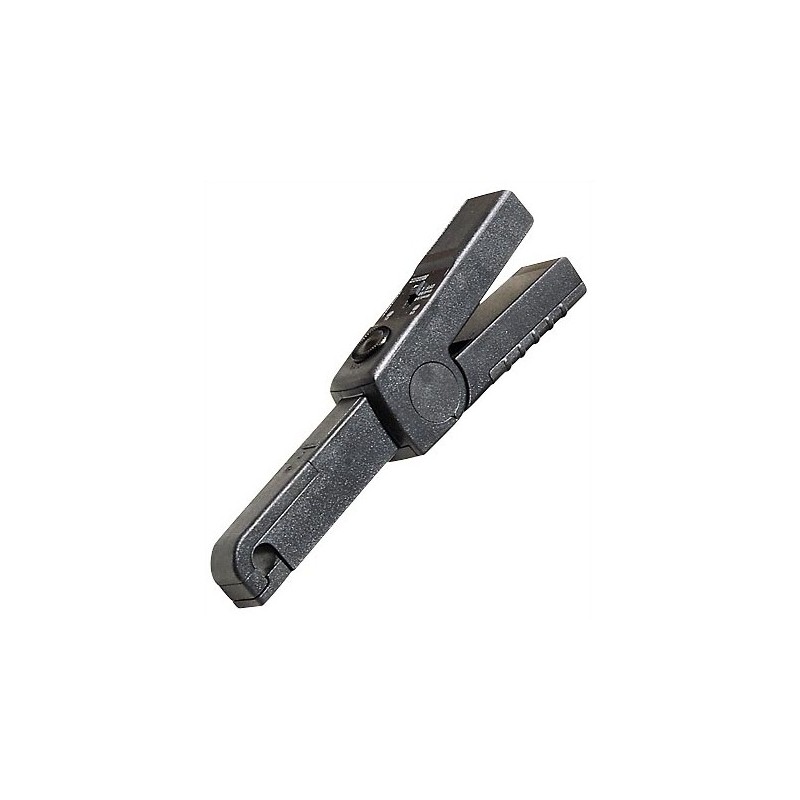

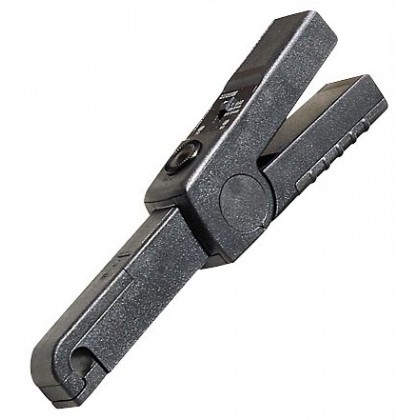

E3N - isolated current sensor 100A AC / DC - METRIX

E3N - isolated current sensor 100A AC / DC - METRIXE3N - isolated current sensor 100A AC / DC - METRIXE3N - isolated current sen

E3N - isolated current sensor 100A AC / DC - METRIXE3N - isolated current sensor 100A AC / DC - METRIXE3N - isolated current sen

More details



P01120043A


Comment faire une demande de devis : Ajouter au devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire
To measure 5mA to 150A
The E series is designed to measure AC and DC current using Hall effect technology. Currents measured from a few milliamps to over 100A.

  • narrow and elongated shape measuring strands in cables or in confined spaces
  • their low phase provides excellent performance for power measurement
  • output voltage (mV)
  • signal measurement AC + DC true RMS measurements
  • connectable to multimeters, recorders, data loggers, oscilloscopes (Model E3N - clamp with BNC connector) , etc..





Model

Measuring range

Voltage

Report transferred.

Bandwidth

Accuracy typ.

E1N

0.05 ... 2 A DC

2 V DC

1 A / 1 V

DC .. 2 kHz

2%

0.05 ... 1.5 A AC

1.5 V AC

0.5 ... 150 A AC / DC

150 mV AC / DC

1 A / 1 mV

DC .. 8 kHz

1.5%

E3N

0.05 ... 10 A peak

1 V peak

1 A/100 mV

DC .. 100 kHz

3%

1 ... 100 A peak

1 A/10 mV

4%

E6N

5 mA ... 2 A DC

2 V DC

1 A / 1 V

DC .. 2 kHz

2%

5 mA ... 1.5 A AC

1.5 V AC

20 mA ... 80 A AC / DC

0.8 V AC / DC

1 A/10 mV

DC .. 8 kHz

4%
