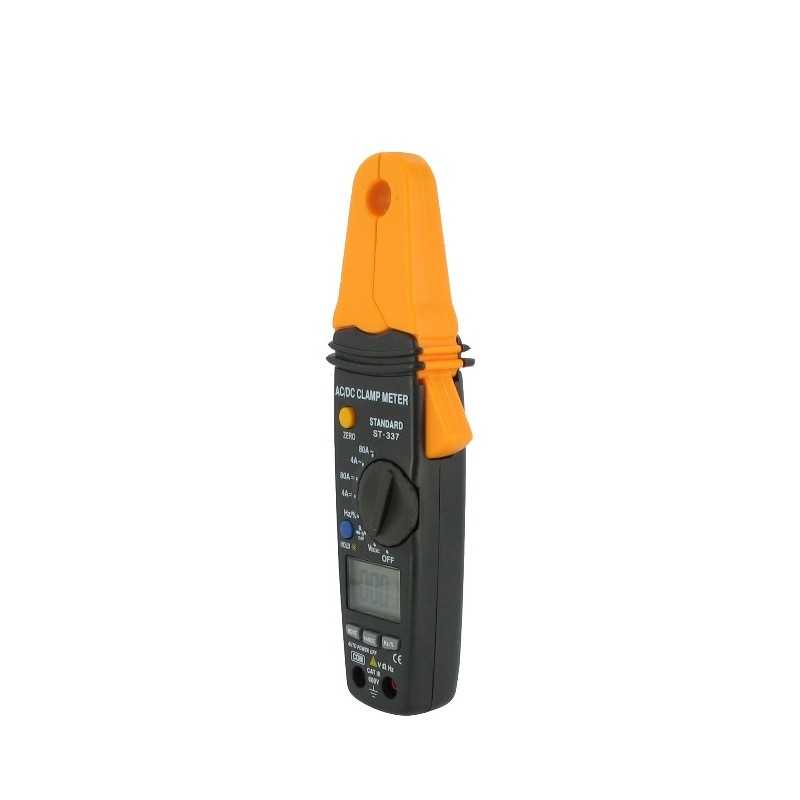

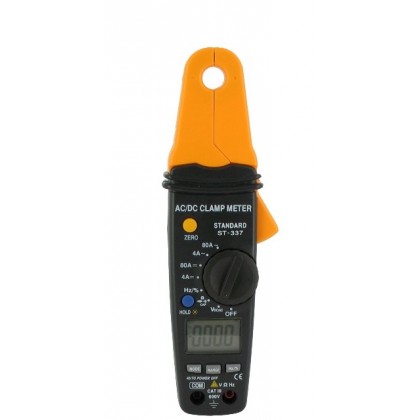

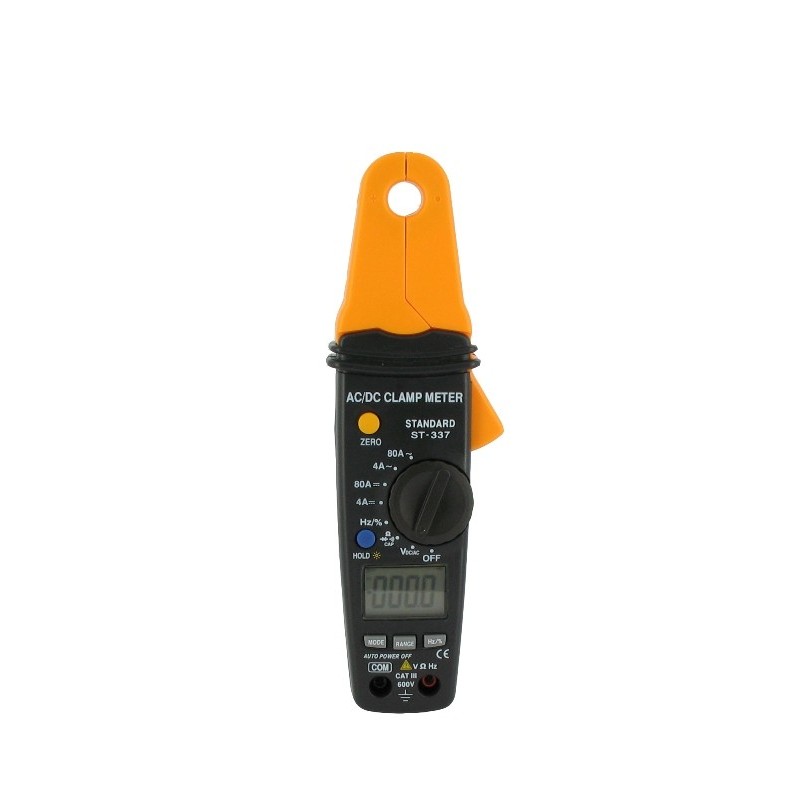

IM337 - Mini Clamp Meter - Imesure
IM337 - Mini Clamp Meter - ImesureIM337 - Mini Clamp Meter - ImesureIM337 - Mini Clamp Meter - Imesure
IM-337
- Pliers with 4000 points digital LCD backlight
- 12mm jaw opening
- Analog output 10mV / A (20kHz)
High-resolution 1mA
- Wide measurement range, from very low up to 80A
- Autoranging
- Function maintiet data displayed and MAX function
- Auto Power Off
- Comes with 2 AAA batteries 1.5 V, 1 set of cords and carrying case
- Warranty 1 year
| Features | IM337 |
| Display | 4000 points |
| Caliber change | Manual / Auto |
| Basic Accuracy | 1% |
| VDC | 0.1 ... 400mV - 4-40-400-600VDC |
| VAC | 0.1 ... 400mV - 4-40-400-600VAC |
| IDC | 40A-80ADC |
| IAC | 40A-80AAC |
| Ohm | 0.1 ... 400Ohm - 4-40-400k - 4-40M |
| Capacity | 40-400nF - 4-40-100μF |
| Frequency Hz | 0.001 ... 5-50, 500 Hz - 5-50-500k - 5-10Mhz |
| Temperature | |
| Analog Output | IAC / IDC 10mV / A (0 ... 20 kHz) 3kohm |
| Diode test and continuity | LED 0.3 mA 1.5 V / rings R <150ohm |
| Duty cycle | 0.5 to 99.9% |
| Sprinkler | after 10 mins |
| Dimensions (LxWxD), Weight | 200mm x 50mm x 35mm, 200g |
| EN 61010-1 | CATIII 600V |
