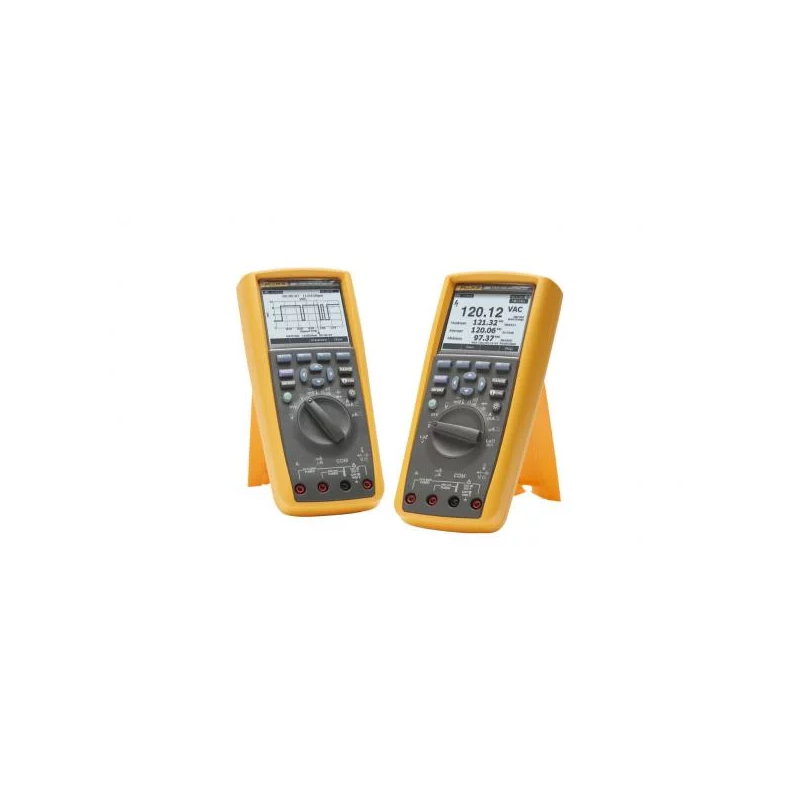

FLUKE289FVF - Fluke TRMS Logging Multimeter with software

FLUKE289FVF - Fluke TRMS Logging Multimeter with softwareFLUKE289FVF - Fluke TRMS Logging Multimeter with softwareFLUKE289FVF -

FLUKE289FVF - Fluke TRMS Logging Multimeter with softwareFLUKE289FVF - Fluke TRMS Logging Multimeter with softwareFLUKE289FVF -

More details



Fluke-289/FVF/EUR

2 weeks

802,00 € tax excl.
962,40 €tax incl.


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

Both multimeters can perform advanced data records unattended and display trend data directly on the screen, without prior transfer to a PC. TrendCapture function helps engineers and technicians to identify problems more quickly during the preventive and predictive maintenance (for example).

An extra-large screen to display a graphical representation of results. It is provided with an improved user interface with built-in help (information button "i") available in seven languages ​​and an interface to the function keys. Both meters can record data sessions unattended in the field. The saved can then be viewed without having to use a PC. In addition, both devices come with a lifetime warranty.

Benefits of the Fluke 287/289:

  • DC accuracy of 0.025%, 100 kHz
  • AC bandwidth
  • Large matrix display 50 000 points of 320 x 240 pixels
  • Data recording function with expandable memory
  • TrendCapture allows you to view readings in graphical format directly on the meter, without using a PC. Capacitystorage of 15 000 measurements over time
  • Records Min / Max / Avg advanced: Display of all data, and the start time and elapsed time on a single screen
  • Information button 'i' to see the integrated help
  • Lifetime warranty

In addition, the Fluke 289 has the following characteristics:

  • Range of 50 Ω between the two terminals, with resolution of 1 mΩ, 10 mA
  • Low-pass filter for performing precise measurements of frequency and voltage variable speed drives
  • Function mode LoZ Volts. Function of low impedance eliminating ghost voltage

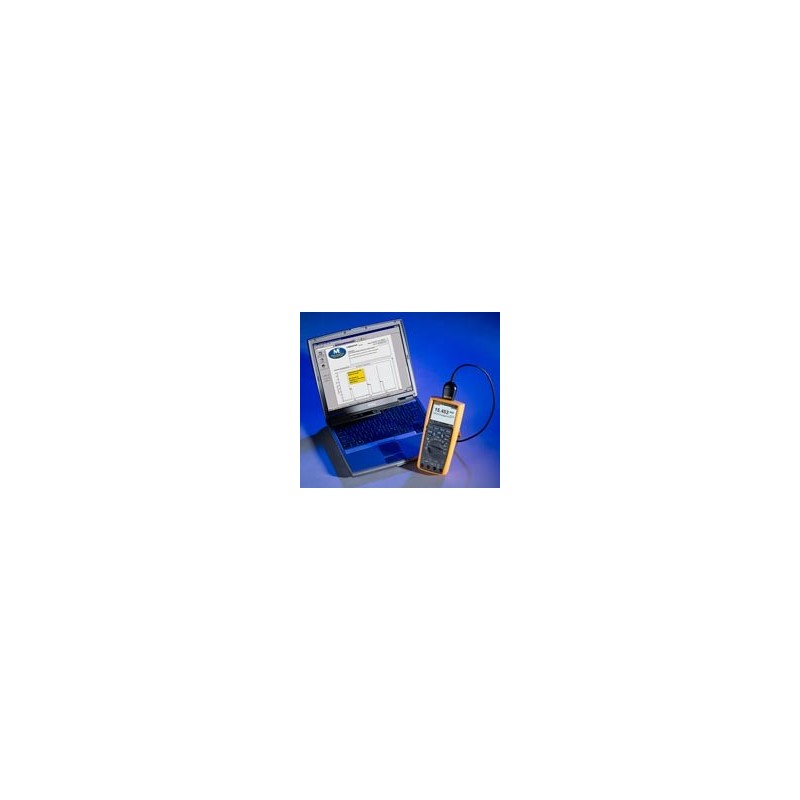

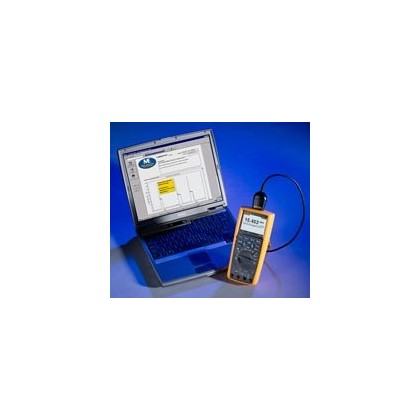

Both Fluke instruments include a large dot matrix display 3 ½ "to 50 000 points of 320 x 240 pixels, allowing the visualization of multiple sets of measurement. The screen also features a white backlight 2 position and will display screens Integrated contextual help. The device configuration is customizable to save time and improve productivity. Several recording options and automatic time stamping allows easy recall of measuring fields, While a PC interface provides easy transfer of data. FlukeView ® Forms PC, optional, allows users to document, store and analyze measurements, then convert them into professional-quality documents.

True RMS measurement (TRMS) voltage and current

New Fluke can store up to 15,000 steps. They measure the true RMS (TRMS) voltage and current for accurate measurements of nonlinear signals. They have a capacity range of 50 mF and can measure up to 10 A (or 20 A for 30 seconds). Capture transient peaks can record up to 250 microseconds. A method of measure used to subtract the lead resistance test measures low resistance or capacity. Both meters are equipped with batteries with a life of 200 hours.

The Fluke 287/289 offers a bandwidth of 100 kHz AC and a basic DC accuracy of 0.025%. It includes a function of temperature.

Fluke multimeters are known for their robustness, lifetime warranty, their security levels, the lifetime of the product and low total cost of ownership.

The Fluke 287/289 D
sistent with peak voltage of 8000 V dangerous due to load switching and faults occurring at the level of industrial circuits. In addition, they comply with standards for electrical safety IEC (Second Edition) and ANSI. It can diagnose problems in electronics, automated systems, power distribution and electromechanical equipment.

Combined kits FlukeView ® Forms
The Fluke 287 and Fluke 289 are available as kits combined FlukeView ® Forms specific. These kits contain the software, cable and accessories.

Kit Fluke 287/FVF Kit Fluke 289/FVF



Features
Voltage DC
Accuracy0.025%
Range and Resolution50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
AC voltage
Accuracy0.4% (True RMS)
Range and Resolution50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
DC
Accuracy0.15%
Range and Resolution500.00 uA, uA 5000.0, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
AC
Accuracy0.7% (True RMS)
Range and Resolution500.00 uA, uA 5000.0, 50.000 mA, 400.00 mA, 5, 0000 A, 10.000 A
Temperature (excluding probe)
Accuracy1.0%
Range and Resolution-200.0 ° to 1090.0 ° C
Resistance
Accuracy0.05%
Range and Resolution500.00 Ω, 5.0000 kW, 50.000 kW, 500.00 kW, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
10 of 50 Ω resistor (connected to 2 son)
Accuracy0.15 + 20%
Range and Resolution50 000 Ω
Capacity
Accuracy1.0%
Range and Resolution1.000 nF, 10.00 nF 100.0 nF, 1.000 uF, uF 10.00, 100.0 uF, 1000 uF, 10.00 mF, 100.00 mF Ω
Frequency
Accuracy0.005% + 1
Range and Resolution999.99 kHz
Functions / additional features
Multiple ScreensYes
Bandwidth AC TRMS100 kHz
dBV / dBmYes
DC mV resolution1 uV
Megohm rangeUp to 500 M
Conductance50.00 nS
Continuity beeperYes
Temperature (° C)-200 ° C to 1090 ° C
Access to the battery and fuseBattery / Fuse
Crest250 ĩS
Elapsed time clockYes
Time of day clockYes
Mini-Maxi-MeanYes
FrequencyYes
Duty cycle0.01% 99.99%
Pulse width0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
MaintenanceYes
Opto-isolated interfaceYes
Automatic Touch HoldYes
Play MemoryYes
PC connectionYes
Recording intervals / eventsYes
Recording memoryUp to 10,000 readings
Low resistance0.001 Ω to 50.000 Ω 10 mA source
LoZYes
Low Pass FilterYes

Safety Features
Overvoltage category
Certified CAT III 1000 V / CAT IV 600 V
Compliance with safety standards
CSA, UL, TUV, CE
