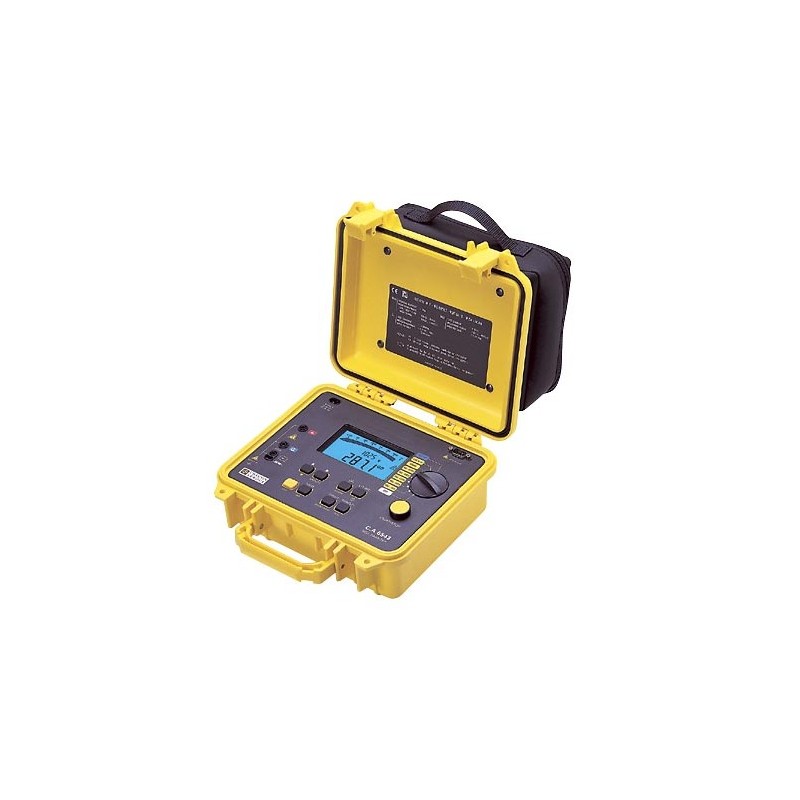

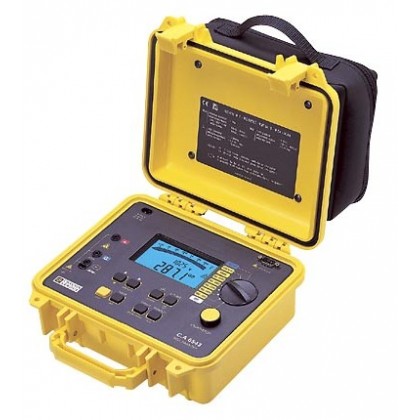

CA6543 - Insulation monitor digital - Chauvin Arnoux

CA6543 - Insulation monitor digital - Chauvin ArnouxCA6543 - Insulation monitor digital - Chauvin ArnouxCA6543 - Insulation moni

CA6543 - Insulation monitor digital - Chauvin ArnouxCA6543 - Insulation monitor digital - Chauvin ArnouxCA6543 - Insulation moni

More details



P01138902

2 to 3 weeks

2 158,00 € tax excl.
2 589,60 €tax incl.


Comment faire une demande de devis : Transformer mon panier en devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire
The reference in insulation monitoring
The CA 6543 is a controller for high performance insulation 50V to 1kV. Supporting extreme field conditions, is an expert in qualitative analysis of isolation:

  • insulation: up 4TΩ (5 cal.) 50/100/250/500 and under 1000V DC
  • automatic calculation of the ratios of insulation quality: PI and DAR
  • programmable test duration and shape of the curve R (t)
  • Automatic Voltage indication before and after the measurement: 1 to 1000V AC / DC
  • Resistance: 0.01 Ω to 400kΩ
  • Continuity: 0.01 Ω to 40 Ω (audible beep and compensation of cords)
  • capacity measure automatically after each confinement: 0.005 to 4.999 uF
  • microprocessor control
  • memory measures (128kb)
  • RS232 bi-directional
  • giant LCD screen with digital display + bargraph
  • backlight
  • SMOOTH function (smoothing value display)
  • locking possible insulation test voltages
  • programmable alarms
  • autonomy with a rechargeable battery with internal charger
  • remote control probe optional
  • Electrical safety: IEC 61010-1 + A2 - Cat.III - 600V and IEC 61557
  • dimensions: 240x185x110mm, weight: 3.4 kg
  • Optional range of accessories: remote control probe, software MEGOHMVIEW data processing on a PC, printer
