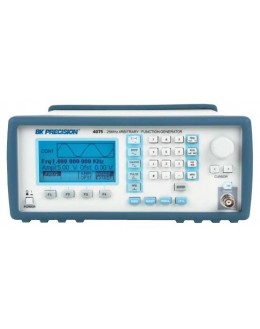

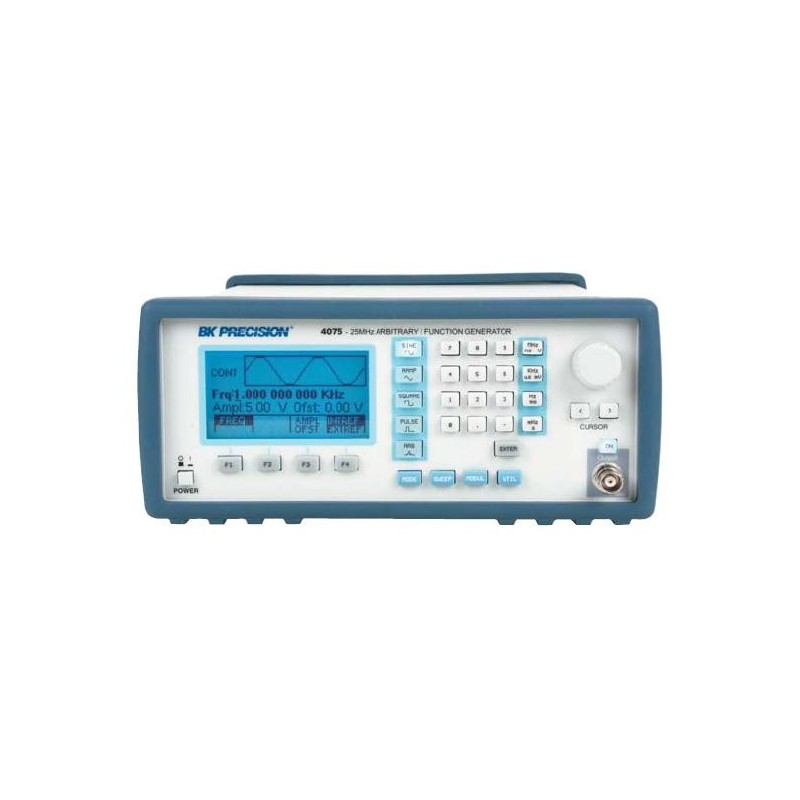

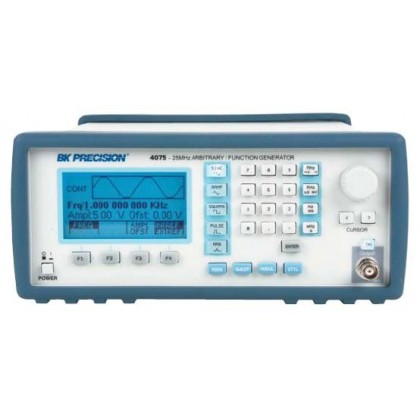

BK4075 - DDS Function Generator 25 MHz. Arbitrary 100MHz, 1 channel. SEFRAM

BK4075 - DDS Function Generator 25 MHz. Arbitrary 100MHz, 1 channel. SEFRAMBK4075 - DDS Function Generator 25 MHz. Arbitrary 100

BK4075 - DDS Function Generator 25 MHz. Arbitrary 100MHz, 1 channel. SEFRAMBK4075 - DDS Function Generator 25 MHz. Arbitrary 100

More details



BK 4075B

2-3 weeks

1 575,00 € tax excl.
1 890,00 €tax incl.


Demande de devis :

Ajouter au devis

Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

• Amplitude, symmetry variables with independent adjustment offset
• wobble linear and logarithmic
• AM modulation, FM, FSK (internal and external)
• Methods door, fire, burst
• 10MHz external clock input for synchronization
number generator
• Graphic LCD with backlight
• RS-232 (optional USB adapter)
• IEEE (factory option)
• Software wavex provided for the generation of forms
arbitrary waveform
• Integrated Automatic Calibration

The new BK4075 generator, with its synthesis system
Direct offers exceptional performance:
stability of the signal generated, accuracy and frequency resolution
signal (12 digits) and purity of the waveform.
Direct Frequency Synthesis
The BK4075 is a high performance arbitrary generator
to generate complex signals from
400000points of memory, a sampling
up to 100MS. / s and a resolution of 14 bits. A
large number of waveforms is preprogrammed
available. The output is very useful marker to synchronize
an oscilloscope or other instruments.Le
BK4075 comes with software to generate forms wavex
arbitrary waveform with ease.
Arbitrary generator
The generator has BK4075tee designed for intuitive use:
with its graphical backlit LCD display, you
a clear display and fast settings. Keys
function allows direct access to the various parameters
and therefore maximum efficiency. The keypad
provides additional flexibility for data entry.
The waveform of the signal is returned to the screen.
Ease of Use
BK4075 The generator has a scan mode (wobble)
internal and external. Internally, the scanning can be
linear or logarithmic, with adjustable frequency
start and end. The signal generated can be modulated with the
choice of frequency, signal type and rate of
modulation adjustable from 0 to 100%.
Modulation and wobbling
BK4075 The generator has an external clock input
10MHz I / O to synchronize multiple
generators. Unleash your imagination!
Flexibility: clock input
external 10MHz
The BK4075 is SCPI-compatible. It will fit easily
in your test benches (ATE)
SCPI programming
The BK4075 has an internal automatic calibration:
saving time and money. With a multimeter you realize
the periodic adjustment of your generator, without return to factory
and by an automatic procedure.
Automatic calibration integrated:
a gain of money
Backlit graphic LCD display
