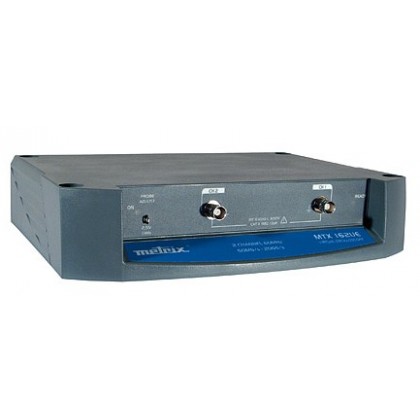

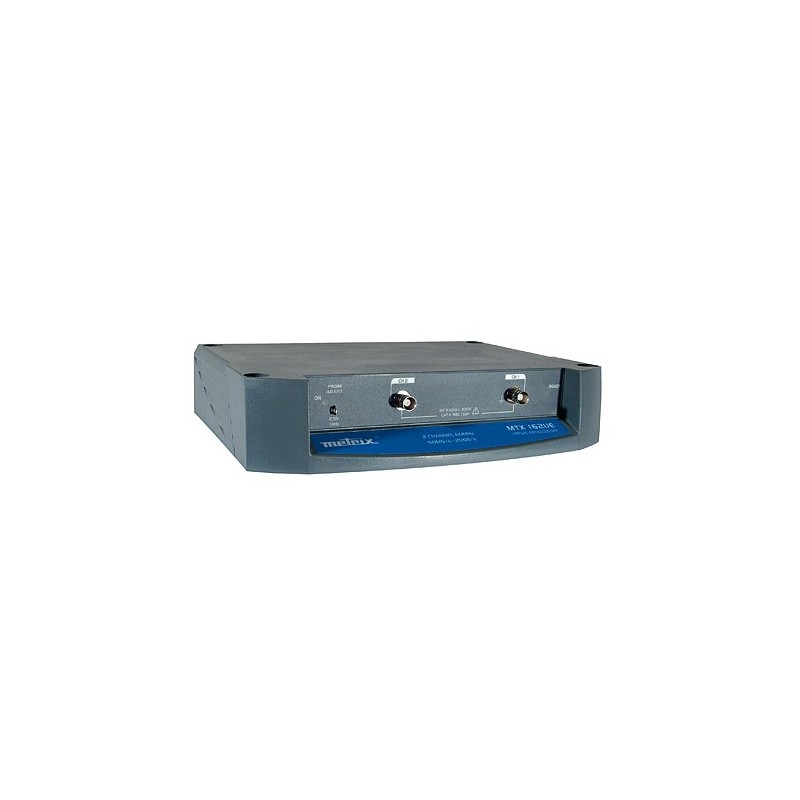

The oscilloscope economic Compact, MTX 162UE has 2 input channels
non-isolated, 300 V CAT II and a bandwidth of 60 MHz. It integrates a real time FFT analyzer and a recorder 2 channels (direct mode Roll not fire).
By linking with the housing MTX1032-B
the user obtains the differential inputs 600 V CAT III.
This dual oscilloscope timebase allows
simultaneously view two windows of 2500 points.
Digital analog persistence, it offers a
normal display, or display residual (drag type analog oscilloscope).
MTX 162UE offers a deep memory of 50,000 points and a wide range of sensitivity
ranging from 5 mV / div to 100 V / div. Simple and effective, it has a "vertical Autorange" & a "horizontal Autorange" selectable, 19 automatic measurements simultaneously, as well as manual cursors. As for sampling, it is 20 GS / s repetitive, and 50 MS / s
shot.
Communicating, it has a USB port with automatic detection instruments connected to PC, and a
Ethernet port with detection instruments available on the network. The model MTX 162UEW
available in addition to built-in WiFi communication mode on the oscilloscope.
Made in France, this virtual oscilloscope is guaranteed for 3 years.
