P03199613A - Transmission capacity from 0.01 to 0.1 microF - Chauvin Arnoux

P03199613A - Boîte de capacité 0,01 à 0,1 microF - CHAUVIN ARNOUX

P03199613A - Transmission capacity from 0.01 to 0.1 microF - Chauvin ArnouxP03199613A - Transmission capacity from 0.01 to 0.1 m

More details



P03199613A


Comment faire une demande de devis : Ajouter au devis
Demo

Notes et avis clients

personne n'a posté d'avis encore
dans cette langue
Noter / écrire un commentaire

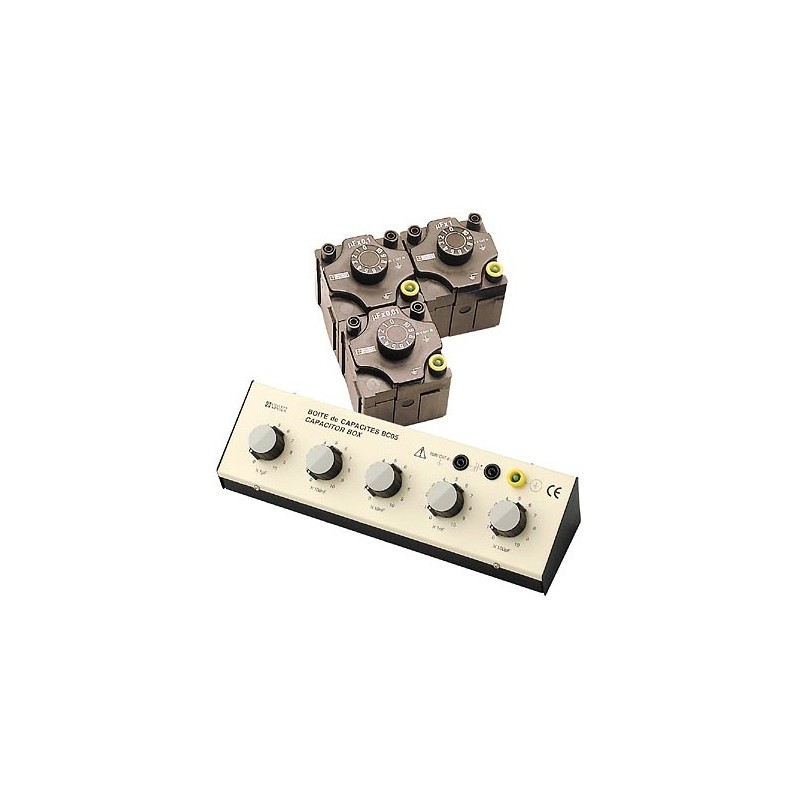

  • Boxes 1 decade
    3 boxes with 11 positions switch (whose position 0)
    2 Ø 4mm safety terminals and ground terminal



Box capacity

Scope

0.01 to 0.1 uF

1 uF x 10 1 to 10 uF

0.1 to 1 uF

0.1 uF 0.1 to 1 x 10 uF

1 to 10 uF

0.01 uF 0.01 to 1 x 10 uF

Angle of loss: <10 -2
Dimensions: 72 x 72 x 90 mm-Weight: 220 g
Accuracy: 2%

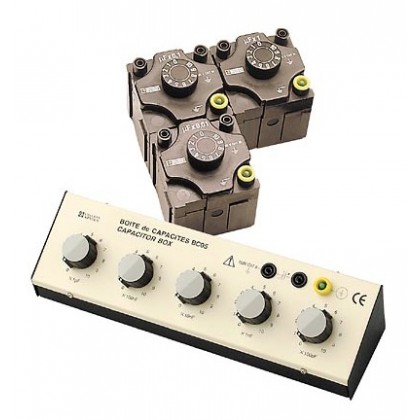

  • BC05 Box 5 decades New

Polystyrene and polypropylene capacitors, high accuracy, a temperature coefficient of 125 ppm / ° C and very high insulation resistance.
Released: Ø 4mm safety sockets.
Front metal casing and connected to an earth socket security undeceived.





1



Decade

Scope

0.1 nF to 1 nF

2

1 nF to 10 nF

3

10 nF to 100 nF

4

100 nF to 1 uF

5

1 uF to 10 uF

Total capacity: 11.111 uF
Residual capacity: 20 to 25 pF
The max voltage: 300 V DC, 230 V AC at 50 Hz
Accuracy: 1% (residual capacity reduced)
Dimensions and weight: 310 x 90 x 80 mm - 1 kg
