A powerful tool calibration intrinsically safe

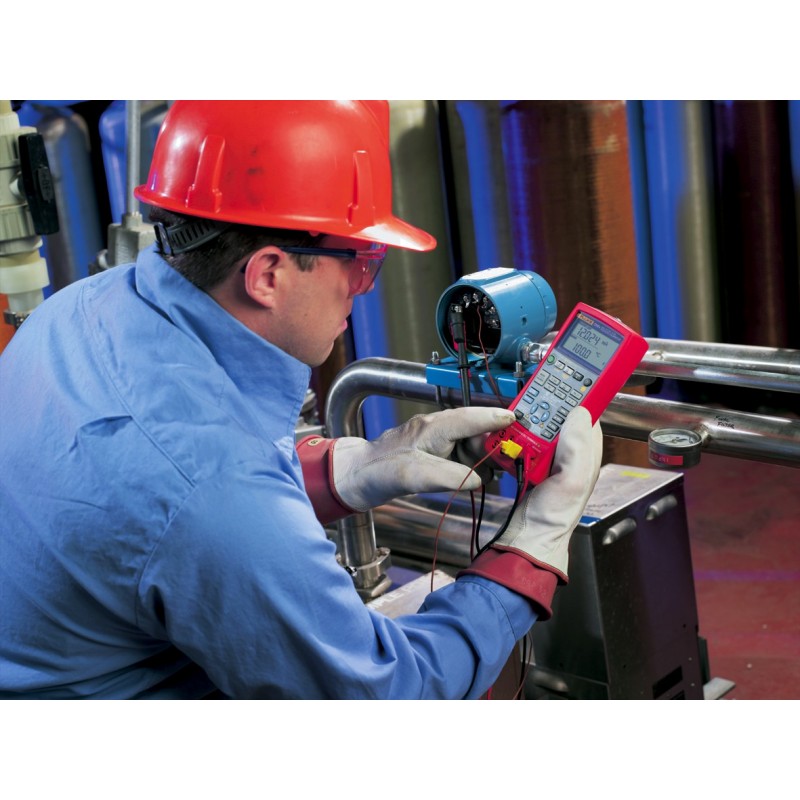

The new Multifunction Process Calibrator Fluke intrinsically safe 725Ex is powerful and easy to use. Combined with the new Fluke pressure modules 700PEx the 725Ex calibrates most process instrumentation may require an intervention in an area where the presence of explosive gases is not excluded.

Measure and milliamps, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules.

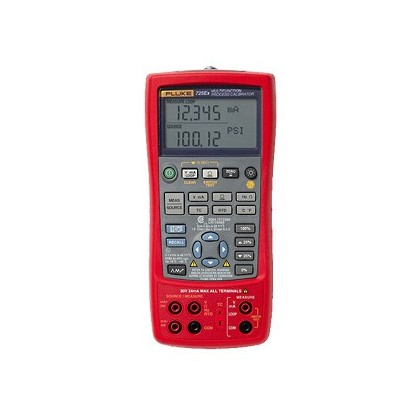

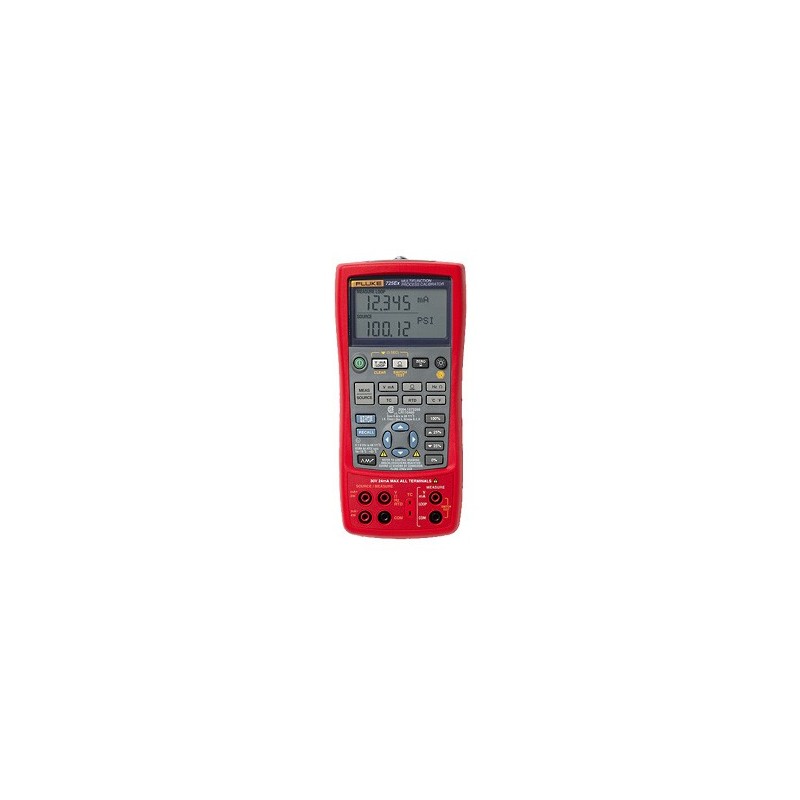

You need to calibrate transmitters? The display of the subdivided model 725 allows you to simultaneously view the input values ​​and output. To test the valve and I / P, you can generate currents (mA) while measuring pressure. The 725 has functions of automatic step and ramp automatic remote testing, plus a step of 25% for fast linearity tests.

Once you take hold of the Fluke 725, it is ready for operation. Its simple controls, without menus, make operation very easy. Its memory functions make setup fast.




Use of generation and measurement functions to test and calibrate most process parameters. The intrinsically safe calibrator Fluke 725Ex a calibration solution is powerful, intrinsically safe multifunction has the following characteristics:

  • ATEX II 1G EEx ia IIB 171 ° C
  • Compliance IS Class I, Division 1 Groups BD, 171 ° C.
  • Action: DC volts, mA, RTDs, thermocouples, frequency and ohms.
  • Source or Simulation: DC volts, mA, RTDs, thermocouples, frequency and ohms
  • Generation and measurement on two simultaneous channels for calibration of transmitters
  • Powerful transmitters with internal loop
  • Storing frequently used test setups for later use
  • Pressure measurement to 3000 psi/200 bars with one of the 8 modules Fluke intrinsically safe pressure 700PEx
  • Test function of the pressure switch to capture the values ​​set, reset and deadband
  • Size and weight
  • Simple User Interface
  • Rugged and reliable, ideal for use on site

Fluke has extended its range of pressure modules to eight ATEX compliant models for measuring a wide range of pressures in potentially explosive areas.







Voltage DC
30.000 V0.02% + 2 counts (upper display)
10.000 V0.02% + 2 counts (lower display)
90.00 mV0.02% +2 counts
of -10.00 mV to 75.00 mV0.025% + 1 count (via TC connector)
DC
24.000 mA0.02% +2 counts
Resistance
from 0.0 to 400.0 Ω0.1 Ω (4 son), 0.15 Ω (2 and 3 son)
from 401 to 1500 Ω0.5 Ω (4 son), 1 Ω (2 and 3 son)
from 1500 to 3200 Ω1 Ω (4 son), 1.5 Ω (2 and 3 son)
Frequency
from 2.0 to 1000.0 CPM0.05% + 1 count
from 1.0 to 1100.0 Hz0.05% + 1 count
1.00 to 10.00 kHz0.05% + 1 count
SensitivityMinimum 1 V peak to peak
Pressure
Accuracyof 0.025% of range using any of 29 pressure modules.
(For detailed specifications, refer to pressure modules in options and accessories)
Modules available for differential, gage, absolute, double and high, and emptiness.
Source Accuracy
Voltage DC
100.00 mV0.02% +2 counts
10.000 V0.02% +2 counts
of -10.00 mV to 75.00 mV0.025% + 1 count (via TC connector)
DC
24.000 mA (Source)0.02% +2 counts
24.000 mA (simulation)0.02% +2 counts
Resistance
from 15.0 to 400.0 Ω0.15 Ω (current exc. 0.15 to 0.5 mA), 0.1 W (power of exclusion. 0.5 to 2 mA)
from 401 to 1500 Ω0.5 Ω (excitation current 0.05 to 0.8 mA)
from 1500 to 3200 Ω1 Ω (excitation current 0.05 to 0.4 mA)
Frequency
from 2.0 to 1000.0 CPM0.05%
from 1.0 to 1100.0 Hz0.05%
1.00 to 10.00 kHz0.25%
Waveform:5 V peak to peak square wave, -0.1 V offset
RTDs and thermocouples
Measuring accuracy:
NI-1200.2 ° C
PT-100 (385)0.33 ° C
PT-100 (393)0.3 ° C
PT-100 (JIS)0.3 ° C
PT-200 (385)0.2 ° C
PT-500 (385)0.3 ° C
PT-1000 (385)0.2 ° C
Resolution:0.1 ° C
J:0.7 ° C
K:0.8 ° C
T:0.8 ° C
E:0.7 ° C
A:1.8 ° C
S:1.5 ° C
B:1.4 ° C
L:0.7 ° C
U:0.75 ° C
N:0.9 ° C
ResolutionJ, K, T, E, L, N, U: 0.1 ° CB, R, S: 1 ° C
XK0.6 ° C
BP1.2 ° C
Precision source:
NI-1200.2 ° C
PT-100 (385)0.33 ° C
PT-100 (393)0.3 ° C
PT-100 (JIS)0.3 ° C
PT-200 (385)0.2 ° C
PT-500 (385)0.3 ° C
PT-1000 (385)0.2 ° C
Resolution:0.1 ° C
Note:Accuracy is defined for a measure to 4 son.
J:0.7 ° C
K:0.8 ° C
T:0.8 ° C
E:0.7 ° C
A:1.4 ° C
S:1.5 ° C
B:1.4 ° C
L:0.7 ° C
U:0.75 ° C
N:0.9 ° C
ResolutionJ, K, T, E, L, N, U: 0.1 ° CB, R, S: 1 ° C
XK0.6 ° C
BP1.2 ° C
Specifications
Ramp functions
Source functions:Voltage, current, resistance, frequency, temperature
RampsSlow ramp, fast ramp, levels of 25%
Loop Power Function
Voltage:12 V
Precision:10%
Maximum current:22 mA, protected against short circuits
Step Functions
Source functions:Voltage, current, resistance, frequency, temperature
Levels25% of the range, 100% of range
Safety Features
Compliance with safety standards
ATEX II 1 G EEx ia IIB 171 ° C
IS Class I, Division 1 Groups
Mechanical & General Specifications
Dimensions
130 x 236 x 61 mm
Weight
0.85 kg
Batteries
4 AA alkaline batteries
Warranty
3 years
Battery Replacement
Separate battery compartment, accessible sans need to break the calibration seal
Side port connections
Pressure module connector, also used for programming real-time remote
